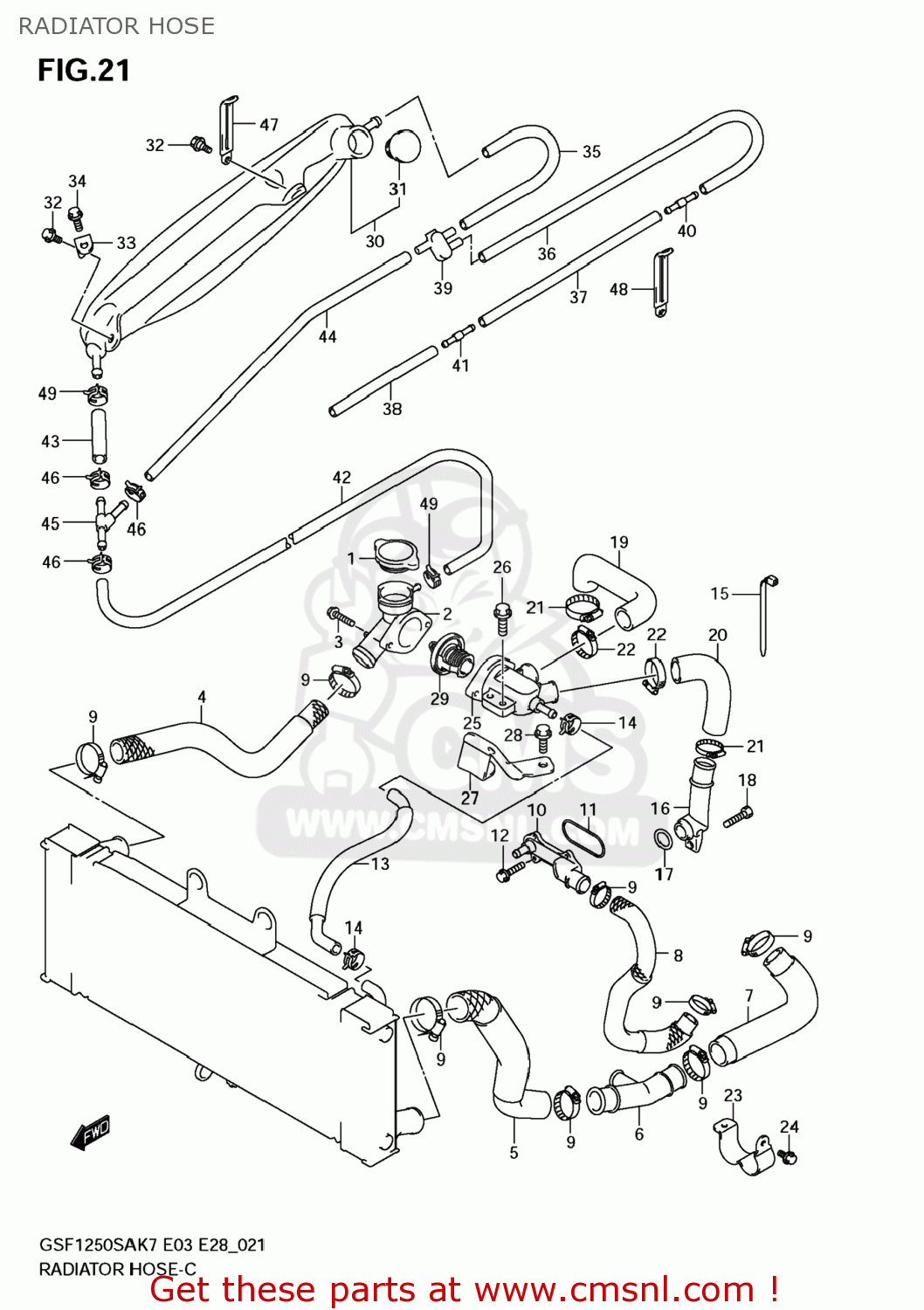

RADIATOR HOSE

ref

part #

description

quantity

1

1773014G00
ref: 1

CAP,RADIATOR(1.1)

€ 37.00

2

1779118H00
ref: 2

CONDUCTION,RADIATOR

€ 32.50

3

015500620A
ref: 3

BOLT

€ 3.00

4

1785118H00
ref: 4

HOSE,RADIATOR INLET

€ 51.00

5

1785218H00
ref: 5

HOSE,RADIATOR OUTLET

€ 51.00

6

1789018H00
ref: 6

PIPE,RADIATOR OUTLET

€ 66.00

7

1785318H00
ref: 7

HOSE,WATER PUMP INLET

€ 77.00

8

1785418H00
ref: 8

HOSE,WATER PUMP OUTLET

€ 80.50

9

0940238512
ref: 9

CLAMP

€ 12.50

10

1786118H00
ref: 10

CONNECTOR,CYLINDER WATER INLET

€ 54.50

11

1786318H00
ref: 11

O RING,CYL INLET CONNECTOR

€ 11.50

12

015470620A
ref: 12

BOLT

€ 3.50

13

1785618H00
ref: 13

HOSE,WATER BYPASS

€ 39.00

14

0940112409
ref: 14

CLAMP

€ 4.00

15

0940718402
ref: 15

CLAMP(L:165)

€ 3.50

16

1788018H00
ref: 16

PIPE,CYLINDER HEAD OUTLET

€ 59.50

17

0928018009
ref: 17

O RING(D:3.2,ID:17.8)

€ 8.50

18

071300612A
ref: 18

BOLT

€ 4.00

19

1785718H00
ref: 19

HOSE,CYLINDER HEAD OUTLET,R

€ 30.50

20

1785818H00
ref: 20

HOSE,CYLINDER HEAD OUTLET,L

€ 26.50

21

0940228513
ref: 21

CLAMP

€ 8.50

22

0940232512
ref: 22

CLAMP

€ 12.50

23

1785918H00
ref: 23

PLATE,WATER HOSE CLAMP

€ 10.00

24

015470612A
ref: 24

BOLT

€ 3.00

25

1766218H00
ref: 25

CONNECTOR,THERMOSTAT INLET

€ 103.00

26

015500620A
ref: 26

BOLT

€ 3.00

27

1766918H00
ref: 27

BRACKET,THERMOSTAT CONNECTOR

€ 13.00

28

015500612B
ref: 28

BOLT

€ 4.00

29

1767076G00
ref: 29

THERMOSTAT,WATER 82 DEG

€ 23.50

30

1791018H00
ref: 30

TANK ASSY,RESERVOIR

€ 60.00

31

1793102FA0
ref: 31

CAP,RESERVOIR TANK

€ 6.50

32

0911106085
ref: 32

BOLT(6X12)

€ 6.00

33

1792018H00
ref: 33

BRACKET,RESERVOIR TANK

€ 9.00

34

015500620A
ref: 34

BOLT

€ 3.00

35

1798218H00
ref: 35

HOSE,RESERVOIR TANK OVFL

€ 12.50

36

1798318H00
ref: 36

HOSE,RESERVOIR TANK OVFL NO.2

€ 13.00

37

1798418H00
ref: 37

HOSE,RESERVOIR TANK OVFL NO.3

€ 8.50

38

0935950901980
ref: 38

HOSE

€ 13.50

39

1347118H00
ref: 39

JOINT

€ 9.00

40

0936704011
ref: 40

JOINT

€ 3.00

41

0936706009
ref: 41

JOINT

€ 3.50

42

093525090100B
ref: 42

HOSE(5X9X2000)

€ 25.50

43

0935250901600
ref: 43

HOSE(5X9X600)

€ 9.00

44

0935935751600
ref: 44

HOSE(3.5X7.5X600)

€ 16.00

45

0936706007
ref: 45

3 WAY

€ 3.00

46

0940108410
ref: 46

CLIP

€ 4.00

47

0940408205
ref: 47

CLAMP(L:45 T:0.6)

€ 3.50

48

0940406429
ref: 48

CLAMP(L:45)

€ 3.50

49

0940108411
ref: 49

CLIP

€ 4.00
