REAR MASTER CYLINDER (GSF1250SK7/SK8/SK9)

GSF1250S BANDIT 2008 (K8) USA (E03)

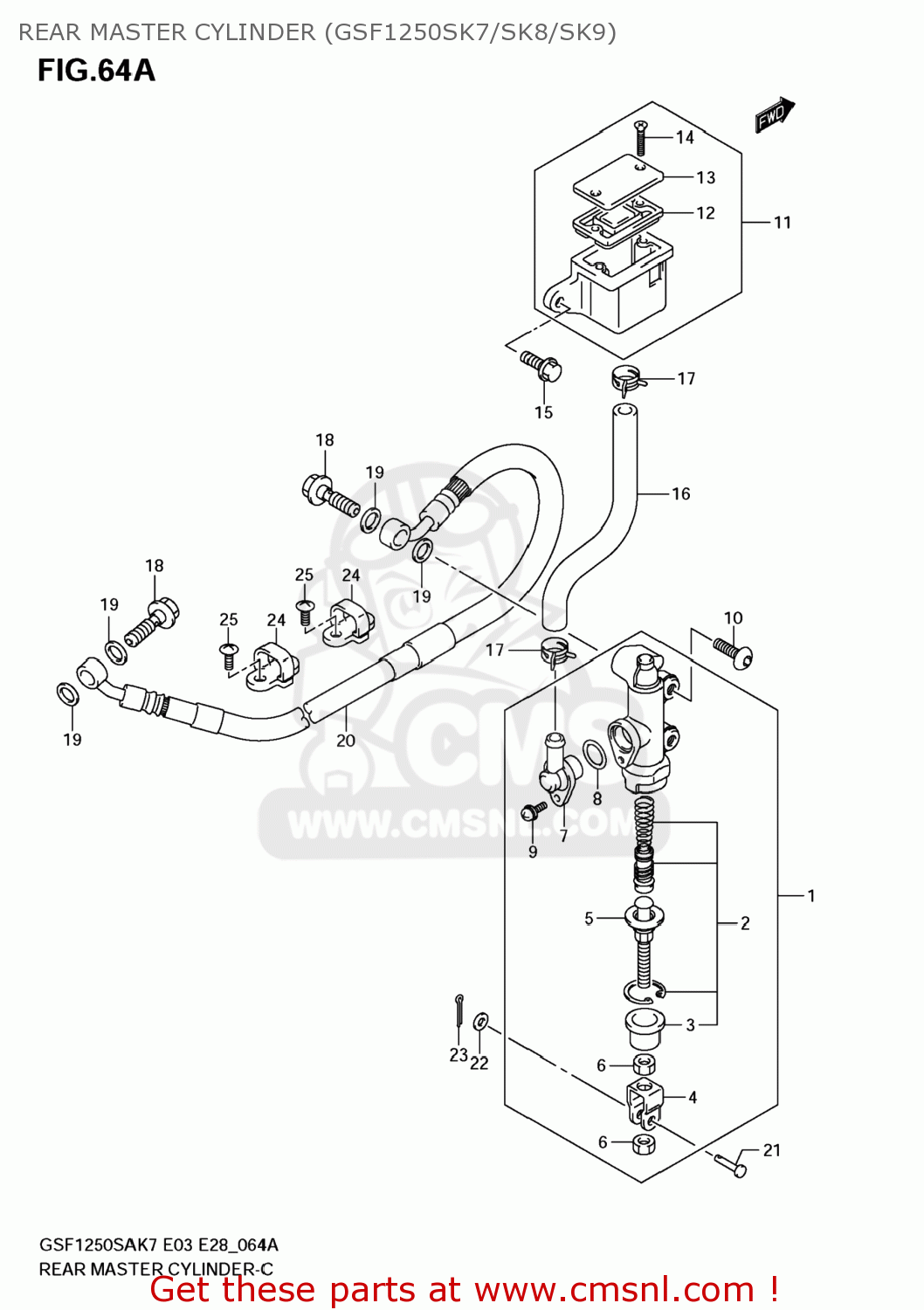

Rear master cylinder (gsf1250sk7/sk8/sk9) diagram GSF1250S BANDIT 2008 (K8) USA (E03)

REAR MASTER CYLINDER (GSF1250SK7/SK8/SK9) GSF1250S BANDIT 2008 (K8) USA (E03)
REAR MASTER CYLINDER (GSF1250SK7/SK8/SK9) GSF1250S BANDIT 2008 (K8) USA (E03)
REAR MASTER CYLINDER (GSF1250SK7/SK8/SK9) GSF1250S BANDIT 2008 (K8) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6960017C10
ref: 1
CYLINDER ASSY,RR MASTER
6960017C10
€ 194.50
2
6960034820
ref: 2
PISTON/CUP SET
6960034820
€ 37.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969227A30
ref: 4
YOKE
6969227A30
€ 12.50
5
6967048B00
ref: 5
ROD,PUSH
6967048B00
€ 20.50
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
6967205A00
€ 4.50
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
021127412A
ref: 9
SCREW
021127412A
€ 2.50
10
0910608167
ref: 10
BOLT(8X20)
0910608167
€ 3.50
11
6974038B21
ref: 11
TANK ASSY,RESERVOIR
6974038B21
€ 85.50
12
5966704700
ref: 12
DIAPHRAGM
5966704700
€ 8.00
13
5966905D00
ref: 13
CAP
5966905D00
€ 13.50
14
6968904A00
ref: 14
SCREW
6968904A00
€ 2.00
15
015470612B
ref: 15
BOLT
015470612B
€ 2.00
16
6973131F00
ref: 16
HOSE,RR RESERVOIR TANK
6973131F00
€ 17.00
17
0940113417
ref: 17
CLIP
0940113417
€ 2.50
18
0936010062
ref: 18
BOLT UNION
0936010062
€ 5.00
19
0916110009
ref: 19
WASHER(10X15X1.5)
0916110009
€ 2.00
20
6948018H00
ref: 20
HOSE,RR BRAKE
6948018H00
€ 74.00
21
0920006068
ref: 21
PIN(6X18.2)
0920006068
€ 5.00
22
083220106B
ref: 22
WASHER
083220106B
€ 2.00
23
041112015A
ref: 23
PIN
041112015A
€ 1.50
24
6119638G01
ref: 24
GUIDE,RR BRAKE HOSE
6119638G01
€ 6.00
25
021420616B
ref: 25
SCREW
021420616B
€ 1.50
