Buy Suzuki GSF Parts Online


CLUTCH

GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

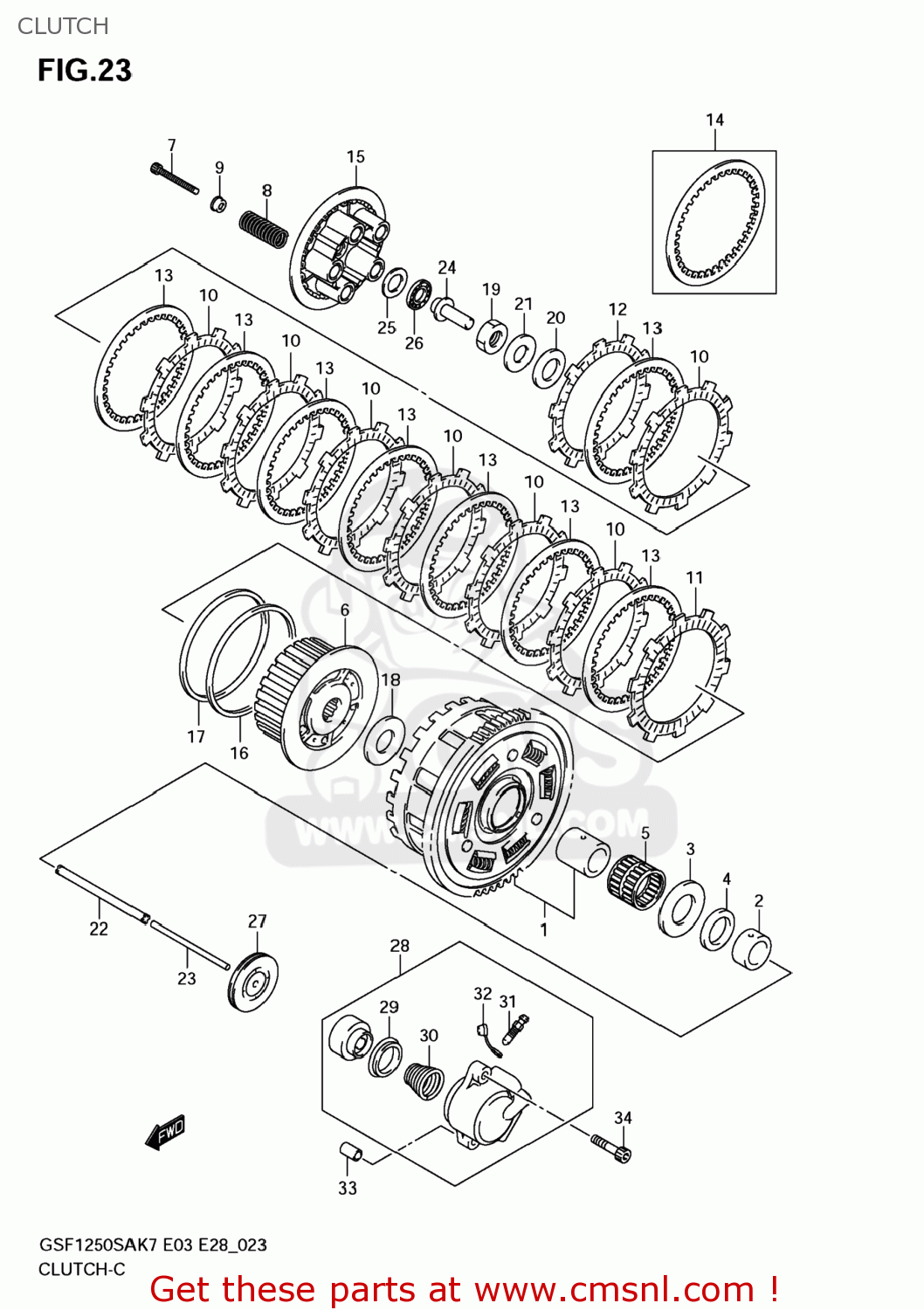

Clutch diagram GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

CLUTCH GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)
CLUTCH GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)
CLUTCH GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
2120018810
ref: 1
21200-18820
GEAR ASSY,PRIM
2120018810
€ 517.00
2
2125301H00
ref: 2
SPACER,OIL PUMP DRIVE SPROCKET
€ 31.50
3
0916025073
ref: 3
WASHER(25X54X2.4)
0916025073
€ 8.50
4
0916025036
ref: 4
WASHER(25X30X3)
€ 5.50
5
0926335015
ref: 5
BEARING(35X40X26.8)
€ 20.00
6
2141018H00
ref: 6
HUB,CLUTCH SLEEVE
2141018H00
€ 128.00
7
2141218H00
ref: 7
BOLT,CLUTCH SPRING
2141218H00
€ 3.50
8
2141318H00
ref: 8
SPRING,CLUTCH
2141318H00
€ 10.00
9
2141429F00
ref: 9
WASHER
2141429F00
€ 4.50
10
2144124F40
ref: 10
PLATE,CLUTCH DRIVE NO.1 (NAS)
2144124F40
€ 19.00
11
2144224F00
ref: 11
PLATE,CLUTCH DRIVE NO.3 (NAS)
2144224F00
€ 16.00
12
2144124F10
ref: 12
PLATE,CLUTCH DRIVE NO.2 (NAS)
2144124F10
€ 18.50
13
2145124F00
ref: 13
PLATE,CLUTCH DRIVEN NO.1(T:2.0 (NAS)
2145124F00
€ 7.50
14
2145124F10
ref: 14
PLATE,CLUTCH DRIVEN NO.2(T:2.3 (NAS)
2145124F10
€ 7.50
15
2146218H00
ref: 15
DISC,CLUTCH PRESSURE
2146218H00
€ 56.00
16
2147124F00
ref: 16
SEAT,WAVE WASHER
2147124F00
€ 12.00
17
2147224F00
ref: 17
WASHER,CLUTCH PLATE WAVE
2147224F00
€ 12.50
18
0916025056
ref: 18
WASHER(25X50X2.5)
0916025056
€ 9.50
19
0915924010
ref: 19
NUT
0915924010
€ 11.00
20
0918125223
ref: 20
SHIM(25X38X1)
0918125223
€ 3.00
21
0916424006
ref: 21
WASHER
0916424006
€ 4.00
22
2311018H00
ref: 22
ROD,CLUTCH PUSH,R(L:169)
2311018H00
€ 23.00
23
2311142F00
ref: 23
ROD,CLUTCH PUSH,L(L:138)
2311142F00
€ 17.00
24
2312131E20
ref: 24
PIECE,CLUTCH PUSH
2312131E20
€ 33.00
25
0916015045
ref: 25
WASHER(15.5X28X1)
0916015045
€ 4.00
26
0926315003
ref: 26
BEARING(15X28X2)
0926315003
€ 7.00
27
0928306011
ref: 27
SEAL,OIL(6X52X10)
0928306011
€ 19.50
28
2316018H00
ref: 28
CYLINDER,CLUTCH RELEASE
€ 111.50
29
2316305A00
ref: 29
CUP,CLUTCH CYLINDER
2316305A00
€ 7.50
30
2316405A00
ref: 30
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
31
5912101A00
ref: 31
BLEEDER
5912101A00
€ 8.50
32
5912201A00
ref: 32
CAP,BLEEDER
5912201A00
€ 4.50
33
0421109129
ref: 33
PIN
0421109129
€ 2.00
34
0910306251
ref: 34
BOLT(6X30)
0910306251
€ 2.50
