CRANKCASE

GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

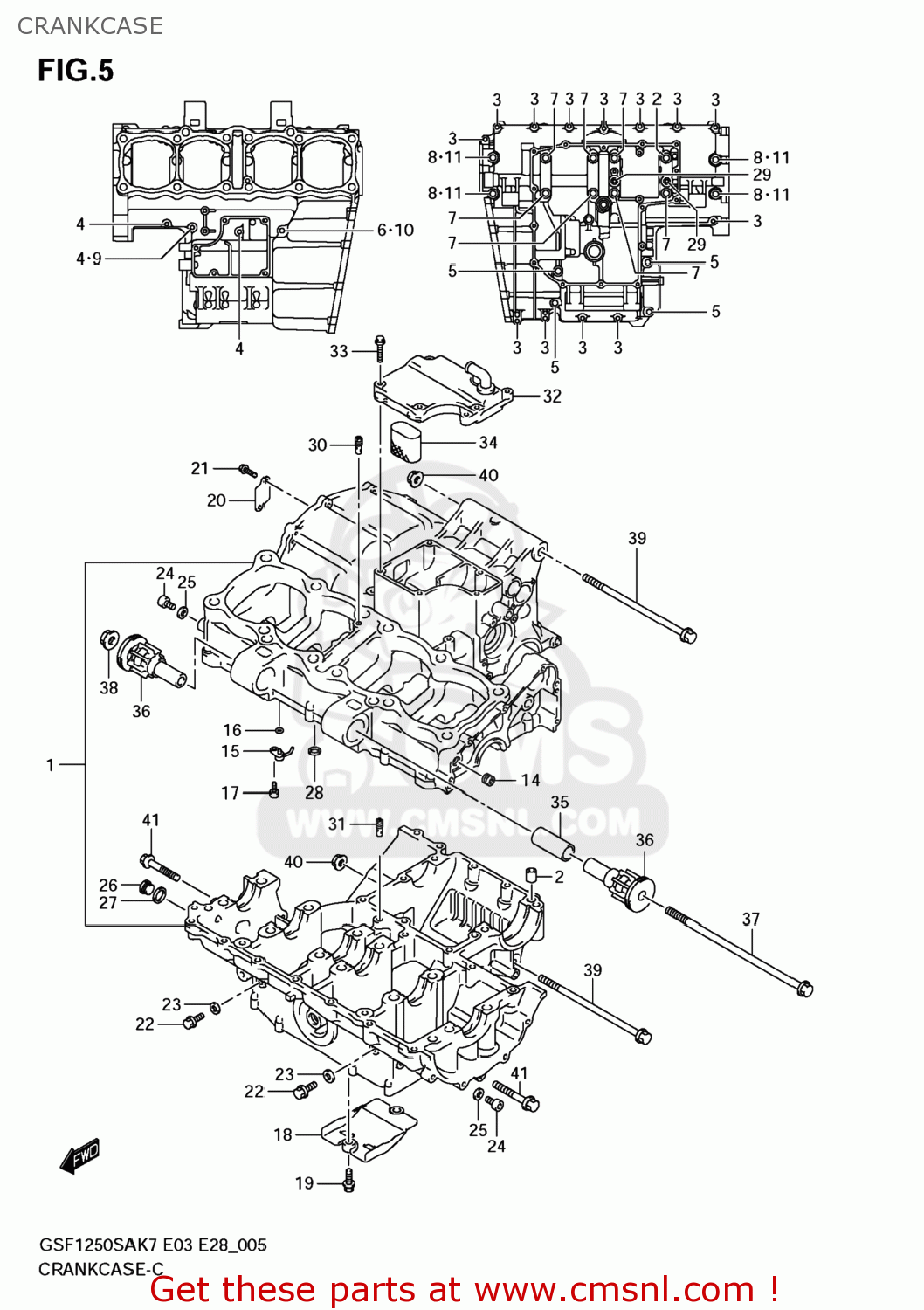

Crankcase diagram GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

CRANKCASE GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)
CRANKCASE GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)
CRANKCASE GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
1130018811
ref: 1
CRANKCASE SET
1130018811
€ 1,896.50
2
1131933E50
ref: 2
PIN,CRANKCASE
1131933E50
€ 4.00
3
015470640A
ref: 3
BOLT
015470640A
€ 2.50
4
015470655A
ref: 4
BOLT
015470655A
€ 2.50
5
015500870A
ref: 5
BOLT
015500870A
€ 3.00
6
015500890A
ref: 6
BOLT
015500890A
€ 3.00
7
0910309005
ref: 7
BOLT(9X135)
0910309005
€ 5.50
8
0910309008
ref: 8
BOLT(9X95)
0910309008
€ 6.00
9
0916806023
ref: 9
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
10
0916808016
ref: 10
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
11
0916810031
ref: 11
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
12
1222817E000D0
ref: 12
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
13-1
1222817E000A0
ref: 13-1
BEARING,CRANK THRUST(RED)
1222817E000A0
€ 7.50
13-2
1222817E000B0
ref: 13-2
BEARING,CRANK THRUST(BLACK)
1222817E000B0
€ 7.50
13-3
1222817E000C0
ref: 13-3
BEARING,CRANK THRUST(BLUE)
1222817E000C0
€ 7.50
13-4
1222817E000D0
ref: 13-4
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
13-5
1222817E000E0
ref: 13-5
BEARING,CRANK THRUST(YELLOW)
1222817E000E0
€ 7.50
13-6
1222817E000F0
ref: 13-6
BEARING,CRANK THRUST(WHITE)
1222817E000F0
€ 7.50
14
1132902F00
ref: 14
JET,OIL GALLERY(3.6)
1132902F00
€ 4.50
15
1139018H00
ref: 15
JET,PISTON COOLING
€ 24.00
16
0928004004
ref: 16
O RING(D:1.2,ID:4)
0928004004
€ 2.00
17
0910606075
ref: 17
BOLT(6X12)
0910606075
€ 2.50
18
1132318H00
ref: 18
SEPARATOR,OIL
1132318H00
€ 27.50
19
015500620A
ref: 19
BOLT
015500620A
€ 2.50
20
1131718H00
ref: 20
PLATE,OIL SEPARATOR
1131718H00
€ 3.50
21
015470612A
ref: 21
BOLT
015470612A
€ 2.00
22
015500612A
ref: 22
BOLT
015500612A
€ 2.50
23
0916806018
ref: 23
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
24
071300812A
ref: 24
BOLT
071300812A
€ 2.50
25
0916808016
ref: 25
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
26
0924816012
ref: 26
PLUG,16X8
0924816012
€ 4.50
27
0916816002
ref: 27
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
28
0928008012
ref: 28
O RING(D:1.9,ID:7.8)
0928008012
€ 4.00
29
0928012009
ref: 29
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
30
0949328012
ref: 30
JET(140)
€ 8.00
31
0949336006
ref: 31
JET,AIR(180)
0949336006
€ 11.50
32
1133018H00
ref: 32
COVER,BREATHER
1133018H00
€ 70.50
33
0910306213
ref: 33
BOLT(6X30)
0910306213
€ 2.50
34
1131818H00
ref: 34
SEPARATOR,OIL BREATHER
1131818H00
€ 30.50
35
1161148G00
ref: 35
SPACER,ENG MTG
1161148G00
€ 12.50
36
1165210G30
ref: 36
BUSH,ENGINE MOUNTING
1165210G30
€ 20.00
37
0910310041
ref: 37
09103-10041-A05
BOLT 10X215
0910310041
€ 9.00
38
083193110A
ref: 38
NUT
083193110A
€ 3.00
39
0910312031
ref: 39
BOLT(12X155)
0910312031
€ 13.00
40
083193112A
ref: 40
NUT
083193112A
€ 4.00
41
015501050A
ref: 41
BOLT
015501050A
€ 3.00
