FRAME (MODEL K7/K8)

GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

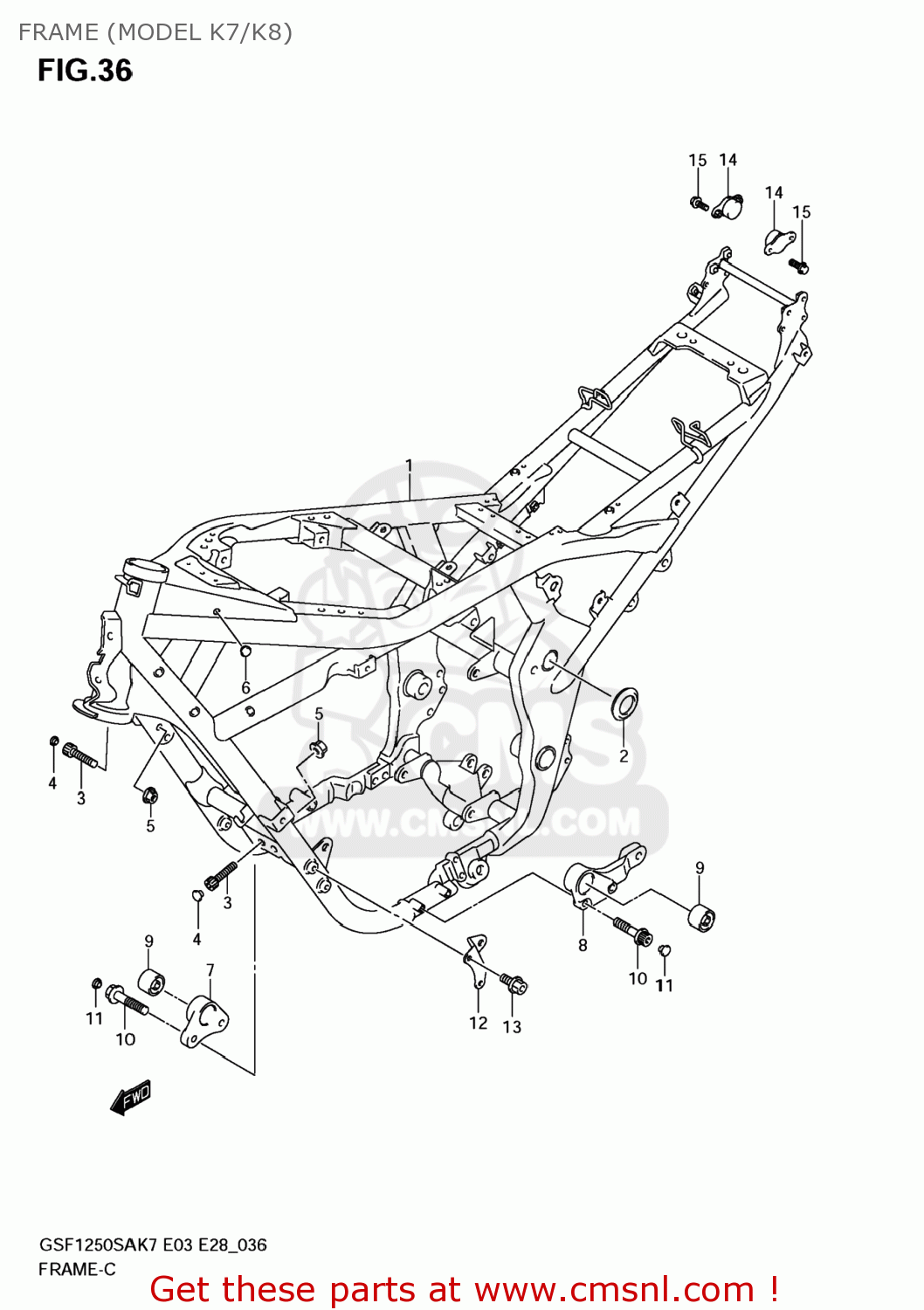

Frame (model k7/k8) diagram GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

FRAME (MODEL K7/K8) GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

FRAME (MODEL K7/K8) GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4110018H00YAP
ref: 1-1

FRAME(BLACK)

€ 2,337.50

1-2

4110018H00YHG
ref: 1-2

FRAME SET

€ 1,427.50

1-3

4110018H00YMD
ref: 1-3

FRAME(SILVER)

€ 2,167.50

2

4358538G00
ref: 2
43585-38G01

CAP,FRAME PIVO

€ 6.00

3

0910610068
ref: 3

BOLT(10X37)

€ 2.50

4

0925008012
ref: 4

CAP(OD:12)

€ 2.00

5

083193110B
ref: 5

NUT

€ 3.00

6

0925012014
ref: 6

PLUG(OD:17)

€ 8.00

7

4193118H00
ref: 7

BRACKET,ENGINE MOUNTING NO.2,R

€ 137.00

8

4194118H00
ref: 8

BRACKET,ENGINE MOUNTING NO.2,L

€ 148.00

9

4193227E50
ref: 9

BUSH,ENG MOUNTING NO.2

€ 19.00

10

0910608065
ref: 10

BOLT(8X28)

€ 4.00

11

0925006008
ref: 11

CAP(OD:10)

€ 3.00

12-1

4194218H00YAP
ref: 12-1

BRACKET,ENGINE MOUNTING FR

€ 46.50

12-2

4194218H00YHG
ref: 12-2

BRACKET,ENGINE MOUNTING FR

€ 39.00

12-3

4194218H00YMD
ref: 12-3

BRACKET,ENGINE MOUNTING FR

€ 36.00

12-4

4194218H00YHG
ref: 12-4

BRACKET,ENGINE MOUNTING FR

€ 39.00

13

015500820A
ref: 13

BOLT

€ 2.50

14

4255049G00
ref: 14

DAMPER,FRAME

€ 36.50

15

015500612B
ref: 15

BOLT

€ 2.50
