REAR MASTER CYLINDER (GSF1250SK7/SK8/SK9)

GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

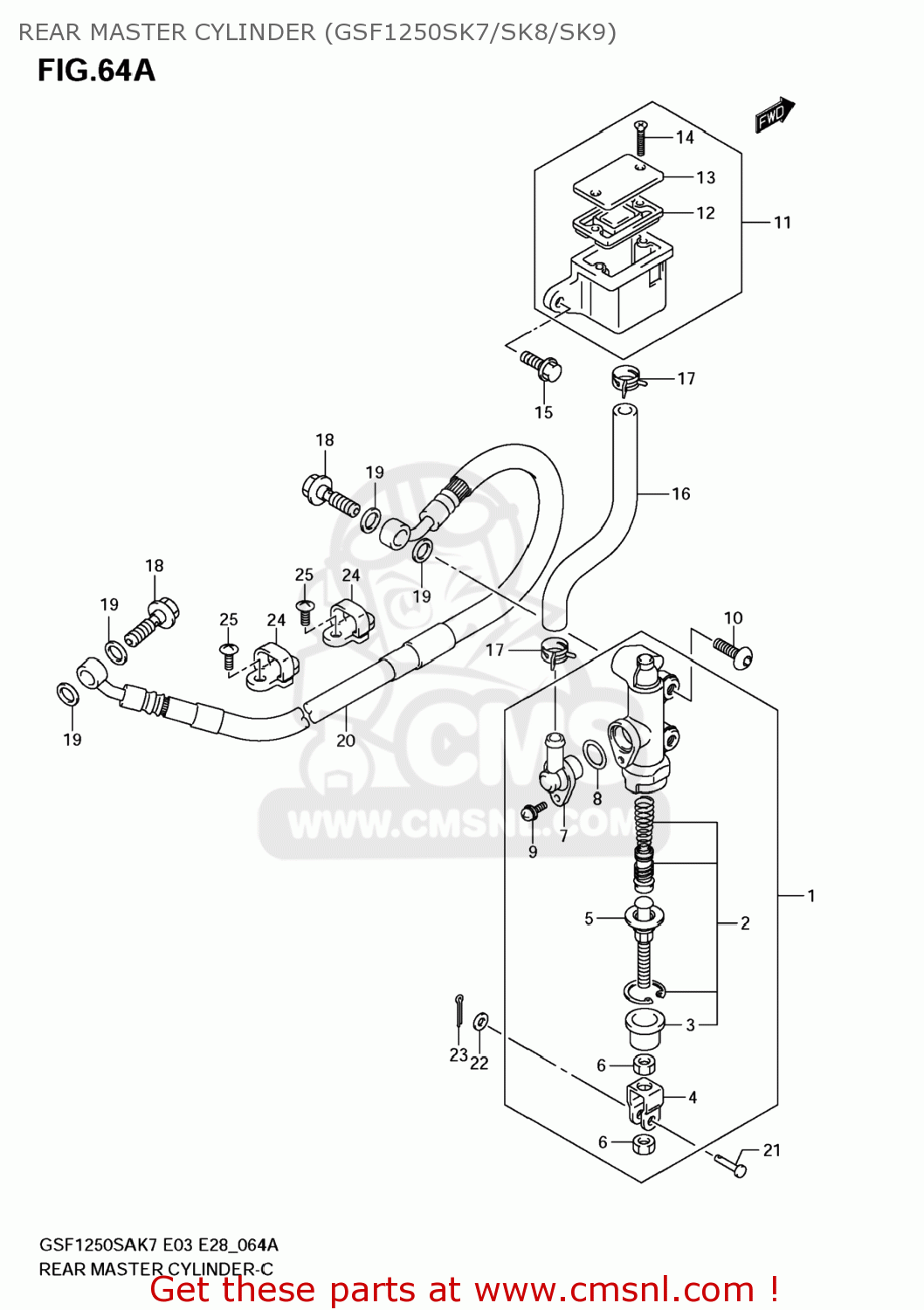

Rear master cylinder (gsf1250sk7/sk8/sk9) diagram GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

6960017C10
ref: 1

CYLINDER ASSY,RR MASTER

€ 194.50

6960034820
ref: 2

PISTON/CUP SET

€ 37.00

6969100A00
ref: 3

BOOT

€ 3.50

6969227A30
ref: 4

YOKE

€ 12.50

6967048B00
ref: 5

ROD,PUSH

€ 20.50

6969305A00
ref: 6

NUT

€ 1.50

6967205A00
ref: 7

CONNECTOR

€ 4.50

6968634200
ref: 8

O RING

€ 3.50

021127412A
ref: 9

SCREW

€ 2.50

0910608167
ref: 10

BOLT(8X20)

€ 3.50

6974038B21
ref: 11

TANK ASSY,RESERVOIR

€ 85.50

5966704700
ref: 12

DIAPHRAGM

€ 8.00

5966905D00
ref: 13

CAP

€ 13.50

6968904A00
ref: 14

SCREW

€ 2.00

015470612B
ref: 15

BOLT

€ 2.00

6973131F00
ref: 16

HOSE,RR RESERVOIR TANK

€ 17.00

0940113417
ref: 17

CLIP

€ 2.50

0936010062
ref: 18

BOLT UNION

€ 5.00

0916110009
ref: 19

WASHER(10X15X1.5)

€ 2.00

6948018H00
ref: 20

HOSE,RR BRAKE

€ 74.00

0920006068
ref: 21

PIN(6X18.2)

€ 5.00

083220106B
ref: 22

WASHER

€ 2.00

041112015A
ref: 23

PIN

€ 1.50

6119638G01
ref: 24

GUIDE,RR BRAKE HOSE

€ 6.00

021420616B
ref: 25

SCREW

€ 1.50

REAR MASTER CYLINDER (GSF1250SK7/SK8/SK9)

all assemblies
