COWLING (MODEL K9)

GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

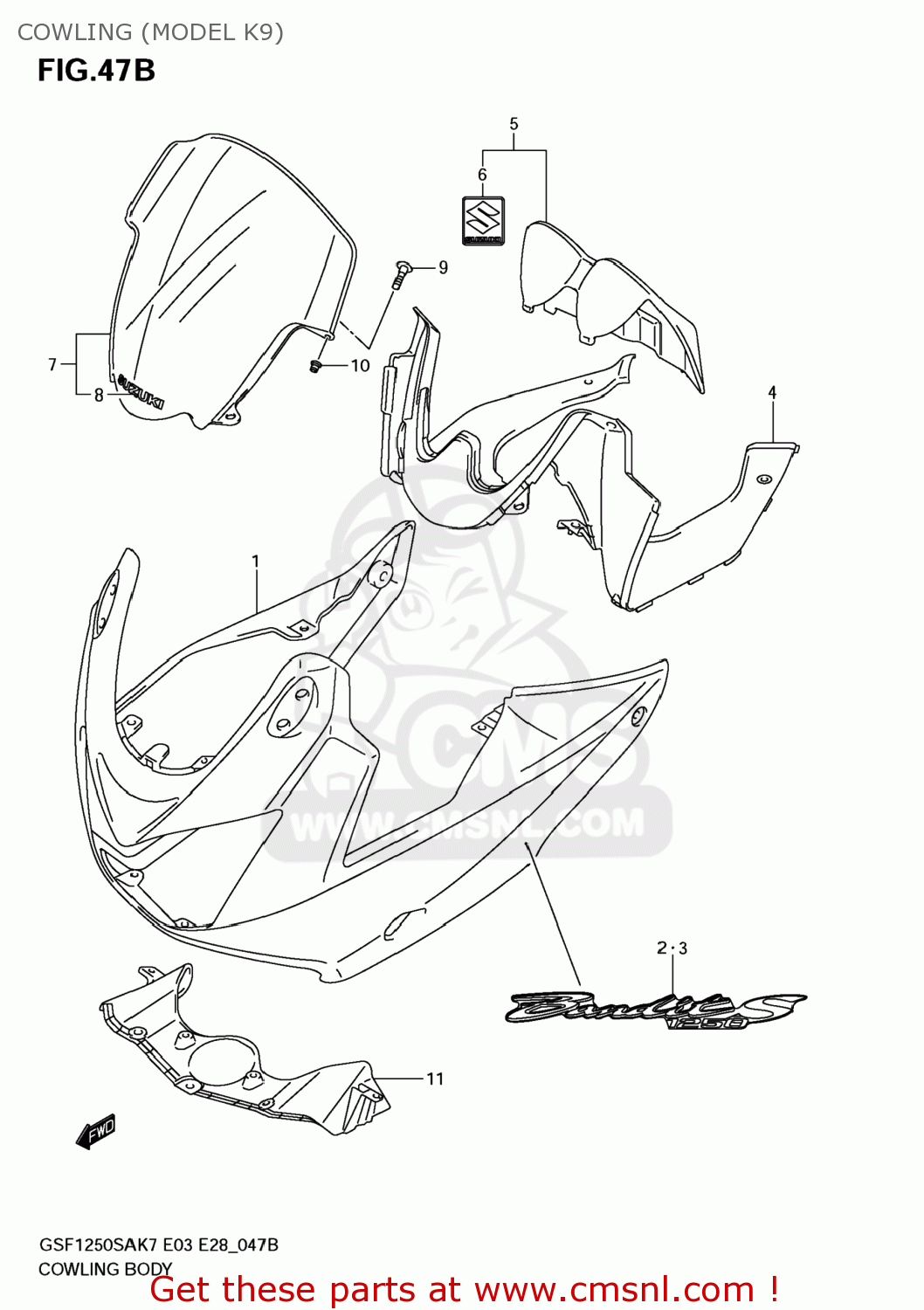

Cowling (model k9) diagram GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

COWLING (MODEL K9) GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

COWLING (MODEL K9) GSF1250SA BANDIT 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

9441018H014CX
ref: 1-1

COWLING,BODY(BLACK)

€ 1,364.50

1-2

9441018H015AX
ref: 1-2

COWLING,BODY(GRAY)

€ 1,549.50

1-3

9441018H01YKZ
ref: 1-3

COWLING,BODY(BLUE)

€ 1,599.50

1-4

9441018H01YMK
ref: 1-4

COWLING,BODY(RED)

€ 1,590.00

2-1

6827118H00GNY
ref: 2-1

EMBLEM,COWLING BODY SIDE,R

€ 31.00

2-2

6827118H00GNZ
ref: 2-2

EMBLEM,COWLING BODY SIDE,R

€ 31.00

2-3

6827118H00GPA
ref: 2-3

EMBLEM,COWLING BODY SIDE,R

€ 31.00

2-4

6827118H00GPB
ref: 2-4

EMBLEM,COWLING BODY SIDE,R

€ 21.00

3-1

6828118H00GNY
ref: 3-1

EMBLEM,COWLING BODY SIDE,L

€ 31.00

3-2

6828118H00GNZ
ref: 3-2

EMBLEM,COWLING BODY SIDE,L

€ 31.00

3-3

6828118H00GPA
ref: 3-3

EMBLEM,COWLING BODY SIDE,L

€ 31.00

3-4

6828118H00GPB
ref: 3-4

EMBLEM,COWLING BODY SIDE,L

€ 31.00

4

9464138G00
ref: 4

PANEL,METER

€ 106.00

5

9465038G00
ref: 5

LID,METER PANEL

€ 131.50

6

6828135F00
ref: 6

EMBLEM,S

€ 13.00

7

9461038G00YD8
ref: 7

WINDSCREEN(SILVER)

€ 1,012.00

8

6827538G00YD8
ref: 8

EMBLEM,WINDSCREEN

€ 20.00

9

0913905504
ref: 9

SCREW(5X16)

€ 4.00

10

0915905048
ref: 10

NUT

€ 6.50

11

9446138G00
ref: 11

COVER,COWLING INNER

€ 57.50
