CRANKCASE COVER

GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

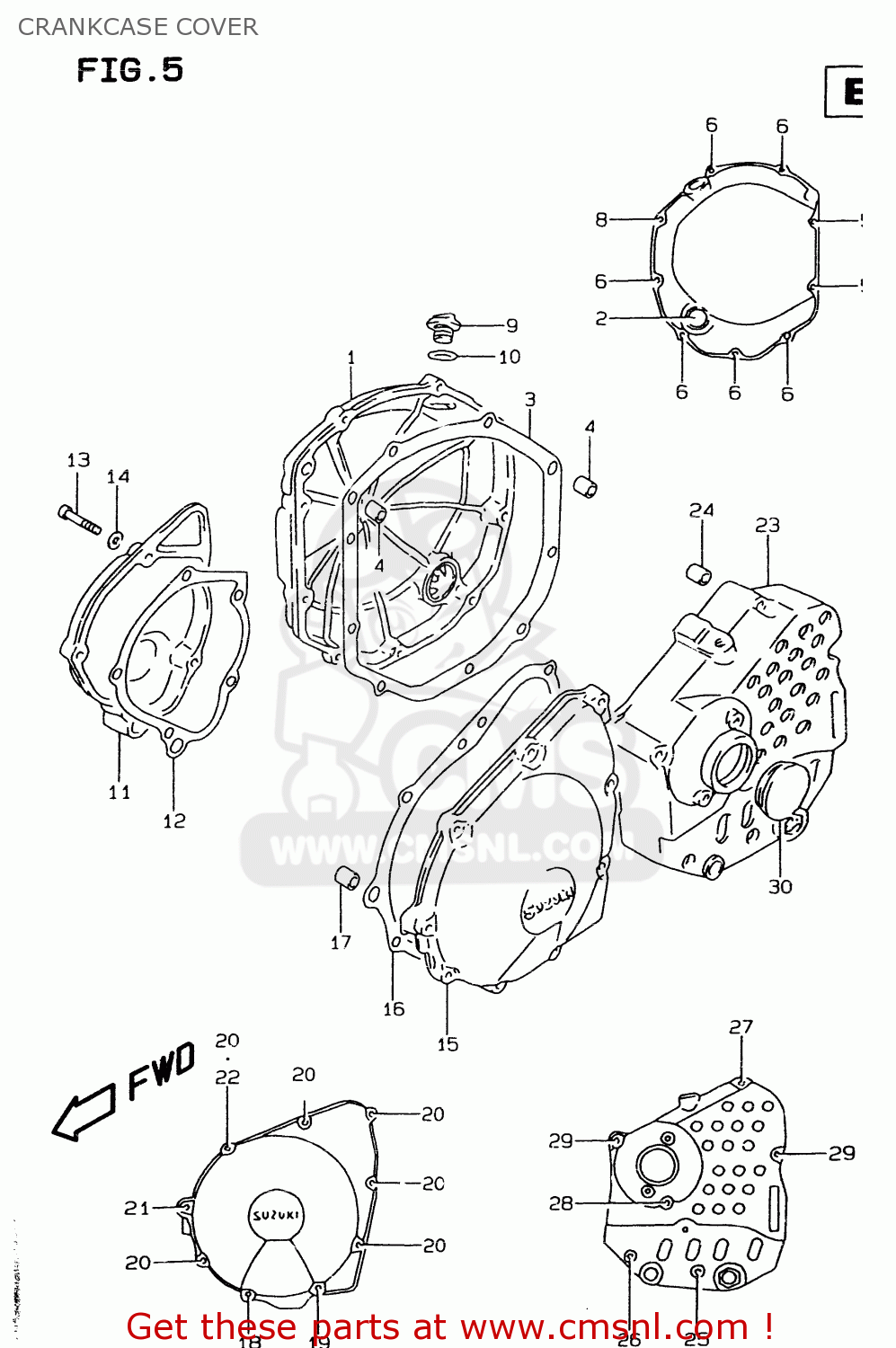

Crankcase cover diagram GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

CRANKCASE COVER GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)
CRANKCASE COVER GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)
CRANKCASE COVER GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1134026E00
ref: 1
COVER,CLUTCH
1134026E00
€ 207.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148227A20
ref: 3
GASKET,CL COVER (NAS)
1148227A20
€ 18.00
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
6
0713006253
ref: 6
BOLT,CL.COVER
0713006253
€ 3.00
7
0713006303
ref: 7
BOLT
0713006303
€ 3.00
8
0713006353
ref: 8
BOLT
€ 3.50
9
0925920008
ref: 9
PLUG
0925920008
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
11
1138126D10
ref: 11
COVER,SIGNAL GENERATOR
€ 62.00
12
1149127A30
ref: 12
GASKET,SIGNAL GEN COVER (NAS)
1149127A30
€ 8.00
13
0910606082
ref: 13
BOLT(6X22)
0910606082
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
15
1135126E00
ref: 15
COVER,STARTER GEAR
1135126E00
€ 156.50
16
1148327A20
ref: 16
GASKET,STARTER GEAR COVER (NAS)
1148327A20
€ 14.50
17
0920611017
ref: 17
PIN(8.4X11X20)
0920611017
€ 6.50
18
0713006163
ref: 18
BOLT,OIL FILLE
0713006163
€ 3.00
19
0713006203
ref: 19
BOLT,CRKCASE,R
0713006203
€ 3.00
20
0713006253
ref: 20
BOLT,CL.COVER
0713006253
€ 3.00
21
0713006403
ref: 21
BOLT
0713006403
€ 3.50
22
0916806024
ref: 22
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
23-1
1136126E00
ref: 23-1
MODEL S/T
COVER,ENGINE SPROCKET
€ 159.50
23-2
1136126E01
ref: 23-2
MODEL V/W
COVER,ENGINE SPROCKET
1136126E01
€ 159.50
24
0421109129
ref: 24
PIN
0421109129
€ 2.00
25
0713006403
ref: 25
BOLT
0713006403
€ 3.50
26
0713006303
ref: 26
BOLT
0713006303
€ 3.00
27
0713006503
ref: 27
BOLT,CL.COVER
0713006503
€ 3.00
28
0713006653
ref: 28
BOLT
0713006653
€ 4.00
29
0713006703
ref: 29
BOLT
0713006703
€ 4.00
30
0925030003
ref: 30
CAP(OD:36)
0925030003
€ 4.00
