TRANSMISSION

GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

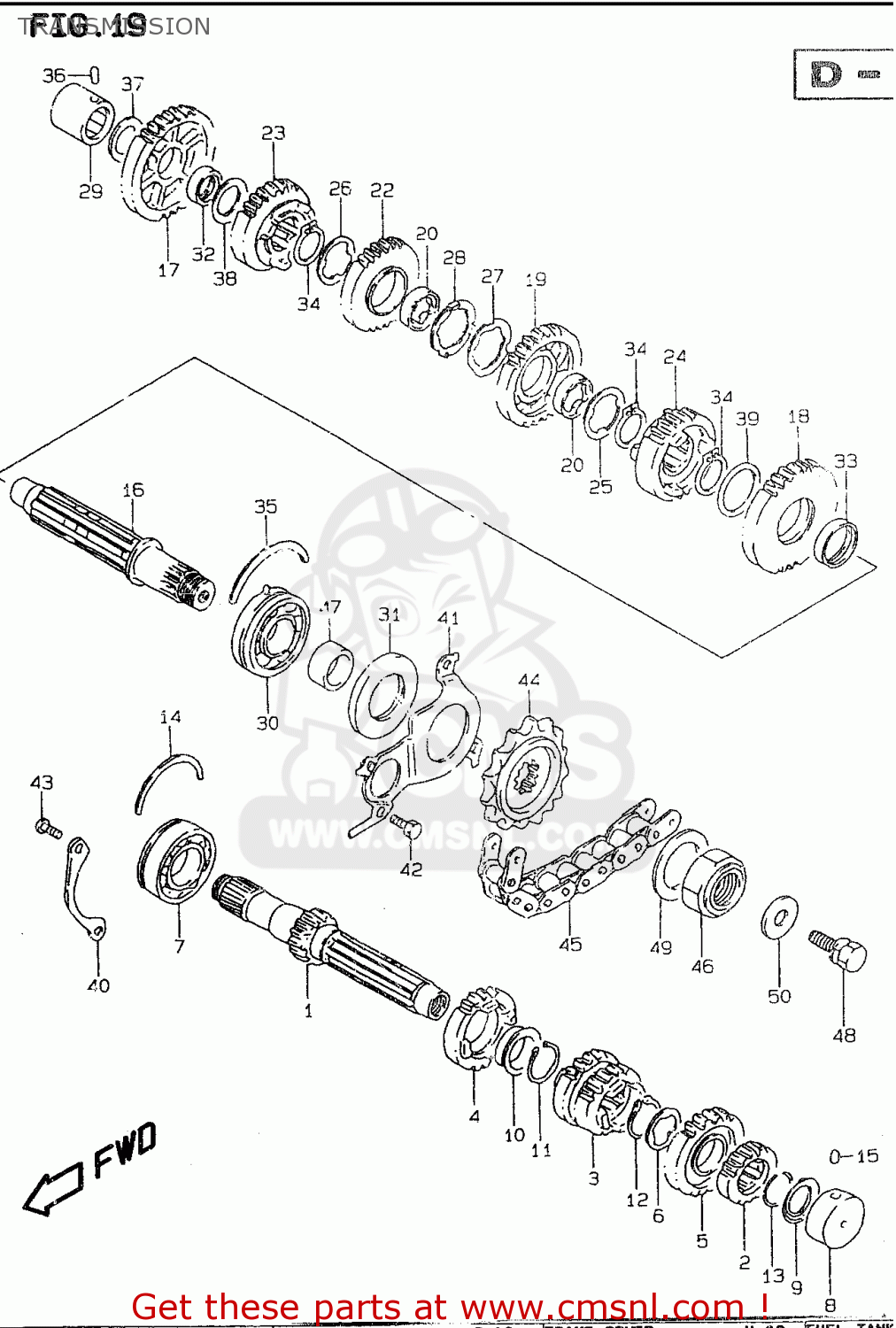

Transmission diagram GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

TRANSMISSION GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)
TRANSMISSION GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)
TRANSMISSION GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
2412119C01
ref: 1
SHAFT,COUNTER(NT:12)
2412119C01
€ 193.50
2
2422127A01
ref: 2
GEAR,2ND DRIVE(NT:16)
2422127A01
€ 93.00
3
2423127A00
ref: 3
GEAR,3RD & 4TH DRIVE(NT:17/20)
2423127A00
€ 162.00
4
2425127A01
ref: 4
GEAR,5TH DRIVE(NT:22)
2425127A01
€ 91.00
5-1
2426117C01
ref: 5-1
MODEL S/T/V
GEAR,SIXTH DRIVE (NT:21)
€ 119.50
5-2
2426117C02
ref: 5-2
MODEL W
GEAR,6TH DRIVE(NT:21)
2426117C02
€ 119.50
6
0916725012
ref: 6
WASHER,LOCK
0916725012
€ 3.50
7
0926225105
ref: 7
25X62X17
BEARING(25X62X17)
0926225105
€ 59.50
8
0926320049
ref: 8
20X34X17.5
BEARING(20X34X17.5)
0926320049
€ 58.00
9
0928520006
ref: 9
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
10
0930125001
ref: 10
BUSHING
€ 12.50
11
0938025003
ref: 11
RING,SNAP
0938025003
€ 3.00
12
0938025003
ref: 12
RING,SNAP
0938025003
€ 3.00
13
0938025013
ref: 13
CIRCLIP
0938025013
€ 3.00
14
0939062012
ref: 14
C RING
0939062012
€ 5.00
15
0422107129
ref: 15
PIN
0422107129
€ 1.50
16
2413120C10
ref: 16
SHAFT,DRIVE
2413120C10
€ 180.50
17
2431119C10
ref: 17
GEAR,1ST DRIVEN(NT:37)
2431119C10
€ 101.50
18
2432120C00
ref: 18
GEAR,2ND DRIVEN(NT:33)
2432120C00
€ 60.00
19
2433127A00
ref: 19
GEAR,3RD DRIVEN(NT:28)
2433127A00
€ 129.00
20
2433227A00
ref: 20
BUSH
2433227A00
€ 13.50
21
2433227A00
ref: 21
BUSH
2433227A00
€ 13.50
22
2434127A01
ref: 22
GEAR,4TH DRIVEN(NT:28)
2434127A01
€ 80.00
23
2435127A00
ref: 23
GEAR,5TH DRIVEN(NT:27)
2435127A00
€ 117.00
24
2436120C00
ref: 24
GEAR,SIXTH DRIVEN (NT:23)
2436120C00
€ 124.00
25
0916728001
ref: 25
WASHER,LOCK
0916728001
€ 3.00
26
0916728001
ref: 26
WASHER,LOCK
0916728001
€ 3.00
27
0916728002
ref: 27
WASHER,LOCK
0916728002
€ 3.00
28
0916928001
ref: 28
WASHER
0916928001
€ 3.00
29
0926320040
ref: 29
20X34X20
BEARING(20X34X20)
0926320040
€ 42.50
30
0926725011
ref: 30
25X62X21.6
BEARING(25X62X21.6)
0926725011
€ 136.00
31
0928334005
ref: 31
SEAL,OIL(34X62X6)
0928334005
€ 14.50
32
0930022008
ref: 32
BUSH(22X26X9)
0930022008
€ 10.50
33
0930028003
ref: 33
BUSH(28X32X9.5)
0930028003
€ 19.50
34
0833131286
ref: 34
CIRCLIP
0833131286
€ 2.50
35
0939062012
ref: 35
C RING
0939062012
€ 5.00
36
0422107209
ref: 36
PIN
0422107209
€ 1.50
37-1
0821120341
ref: 37-1
MODEL S/T
WASHER
0821120341
€ 2.00
37-2
0918120251
ref: 37-2
MODEL V/W
SHIM(20X34X1)
0918120251
€ 3.00
38-1
0821122341
ref: 38-1
MODEL S/T
WASHER
0821122341
€ 3.00
38-2
0918122223
ref: 38-2
MODEL V/W
SHIM(22X34X1)
0918122223
€ 3.00
39-1
0821128381
ref: 39-1
MODEL S/T
WASHER, THRUST
0821128381
€ 3.50
39-2
0918128195
ref: 39-2
MODEL V/W
SHIM(28X38X1)
0918128195
€ 3.50
40
2474127A00
ref: 40
RETAINER,CNTR SHAFT BEARING
2474127A00
€ 7.00
41
2475140C01
ref: 41
RETAINER,DRIVE SHAFT OIL SEAL
2475140C01
€ 7.00
42
0150006123
ref: 42
BOLT
0150006123
€ 2.00
43
0212206163
ref: 43
SCREW ,6X16
0212206163
€ 2.00
44-1
2751017C00
ref: 44-1
MODEL S
SPROCKET,ENGINE (NT:15)
€ 67.00
44-2
2751017C10
ref: 44-2
MODEL T/V/W
SPROCKET,ENGINE(NT:15)
2751017C10
€ 67.00
45
2760021E00110
ref: 45
CHAIN ASSEMBLY,DRIVE 110LE
€ 199.00
46
0915920004
ref: 46
NUT
0915920004
€ 12.00
47
0918025091
ref: 47
25X34X17.5
SPACER(25X34X17.5)
0918025091
€ 16.00
48
0157006163
ref: 48
BOLT
0157006163
€ 2.50
49-1
0821125402
ref: 49-1
MODEL S/T
WASHER,THRUST
0821125402
€ 3.00
49-2
0918125268
ref: 49-2
MODEL V/W
SHIM(25X40X1.5)
0918125268
€ 3.00
50
0821206222
ref: 50
WASHER
0821206222
€ 1.50
up
