REAR CUSHION LEVER

GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

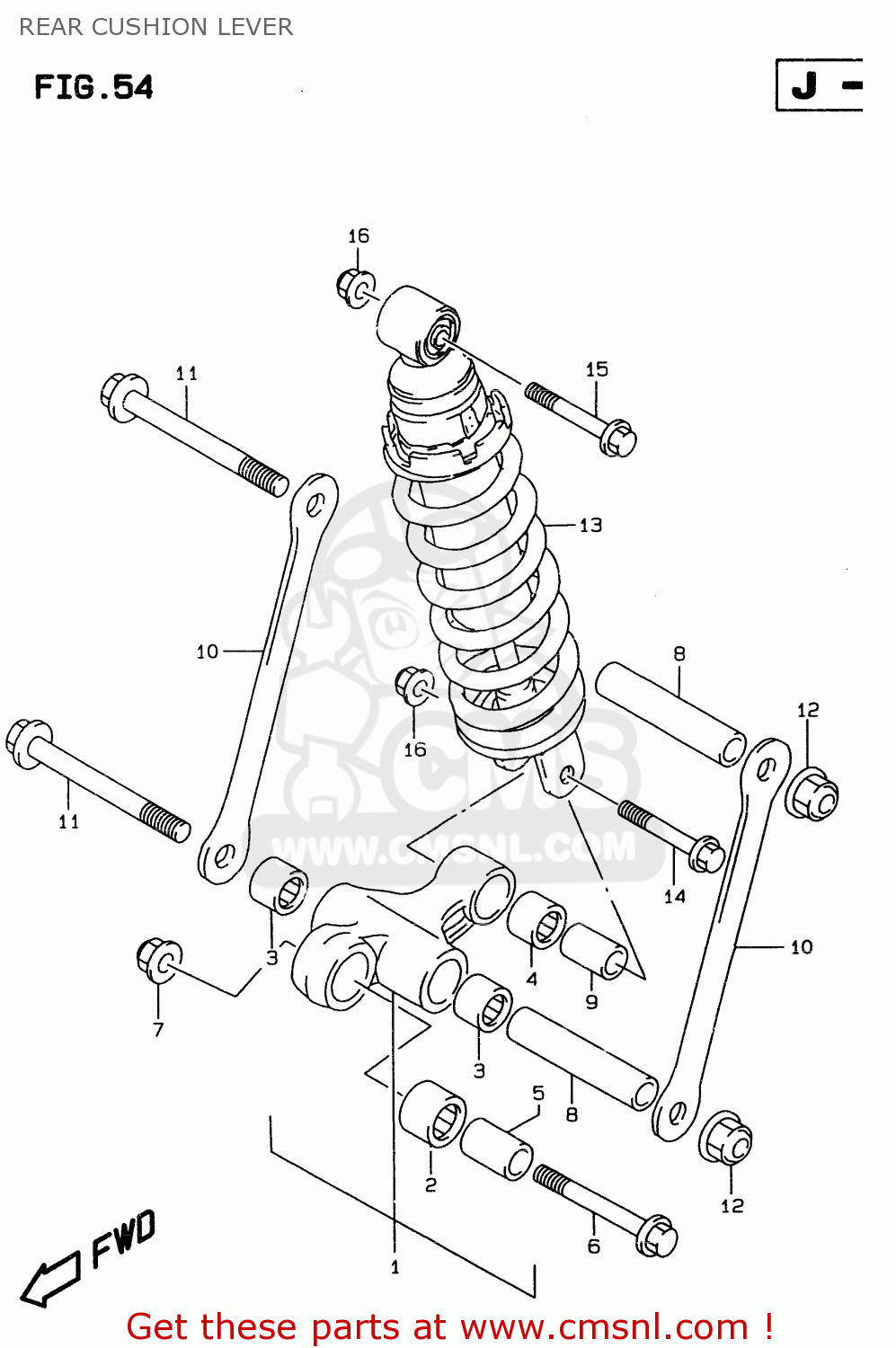

Rear cushion lever diagram GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

REAR CUSHION LEVER GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

REAR CUSHION LEVER GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

6260033871
ref: 1

LEVER SET,RR CUSHION

€ 318.00

2

0926320064
ref: 2

BEARING(20X27X26)

€ 20.00

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

6268401D00
ref: 5

SPACER,RR CUSHION LEVER FR

€ 17.00

6

6266842A02
ref: 6

BOLT,CUSHION LEVER FR

€ 7.00

7

0831931128
ref: 7

NUT 12MM

€ 4.00

8

0918012122
ref: 8

SPACER(12X17X85)

€ 15.00

9

6268440A10
ref: 9

SPACER,RR CUSHION LEVER

€ 11.50

10

6264112C01
ref: 10

ROD,RR CUSHION

€ 21.00

11

0910312037
ref: 11

BOLT(12X115)

€ 11.00

12

0831931128
ref: 12

NUT 12MM

€ 4.00

13-1

6210026E00
ref: 13-1
GSF600S/US/T/UT/V/UV

ABSORBER ASSEMBLY,REAR SHOCK

€ 521.50

13-2

6210026E20
ref: 13-2
GSF600ST/SUT/SV/SUV/

ABSORBER ASSY,RR SHOCK

€ 486.00

14

0910310101
ref: 14

BOLT(10X54)

€ 3.00

15

0910310064
ref: 15

BOLT(10X50)

€ 4.50

16

0831931107
ref: 16

NUT

€ 3.00
