FUEL COCK

GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

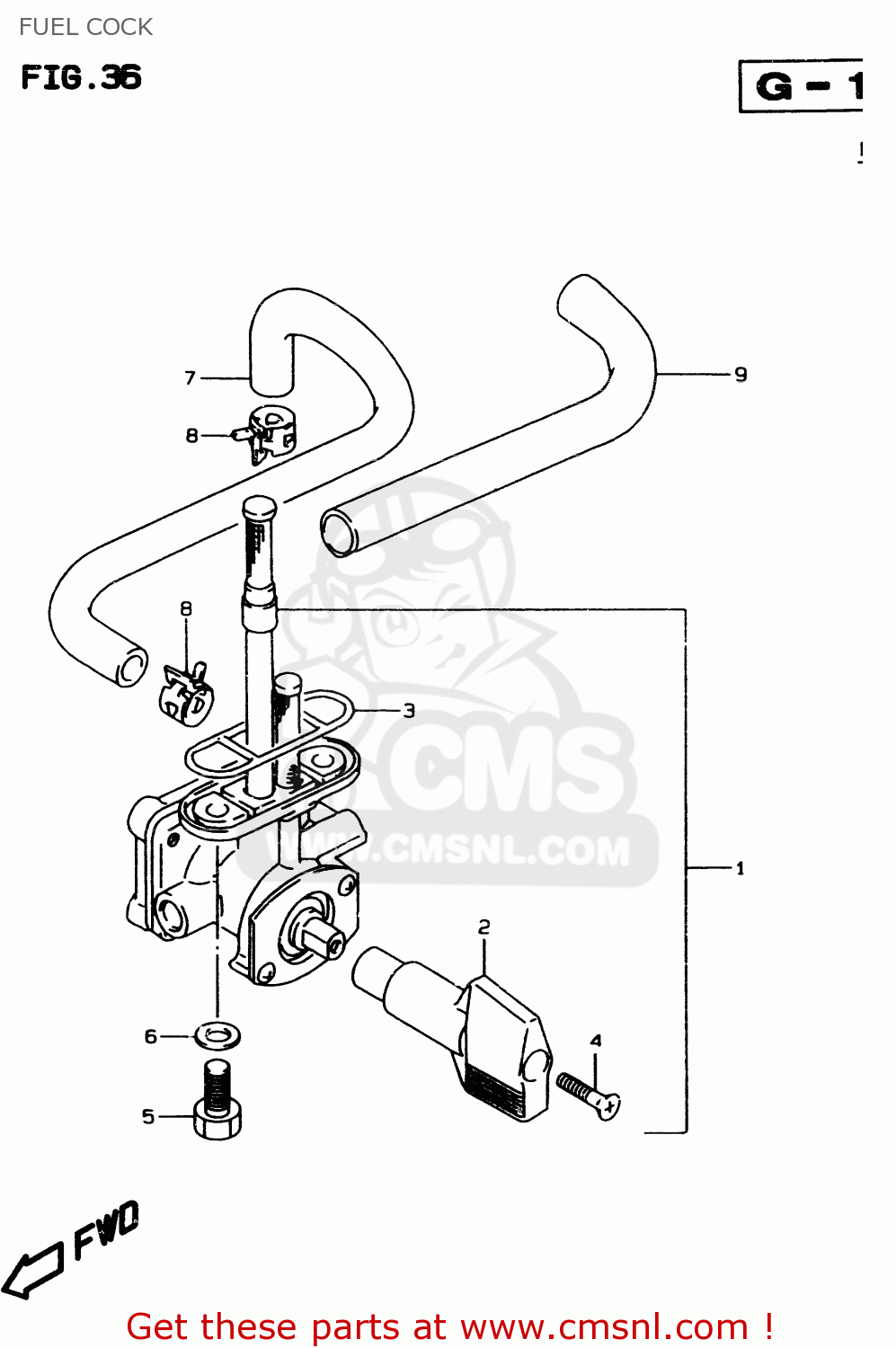

Fuel cock diagram GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

4430026E00
ref: 1

COCK ASSEMBLY,FUEL

€ 124.00

4430626E00
ref: 2

LEVER,FUEL COCK

€ 21.50

4434887420
ref: 3

GASKET,JOINT (NAS)

€ 5.00

0212204203
ref: 4

SCREW

€ 2.00

5-1

0912806006
ref: 5-1
MODEL S

BOLT(6X20)

€ 2.00

5-2

0912806057
ref: 5-2
MODEL T/V/W

BOLT(6X20)

€ 2.00

0916806026
ref: 6

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

0935570125600
ref: 7

HOSE(7X12X600)

€ 26.00

0940111407
ref: 8

CLIP

€ 2.50

0935114152600
ref: 9

PROTECTOR(14.5X15.5X600)

€ 9.00
