SEAT (MODEL S)

GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

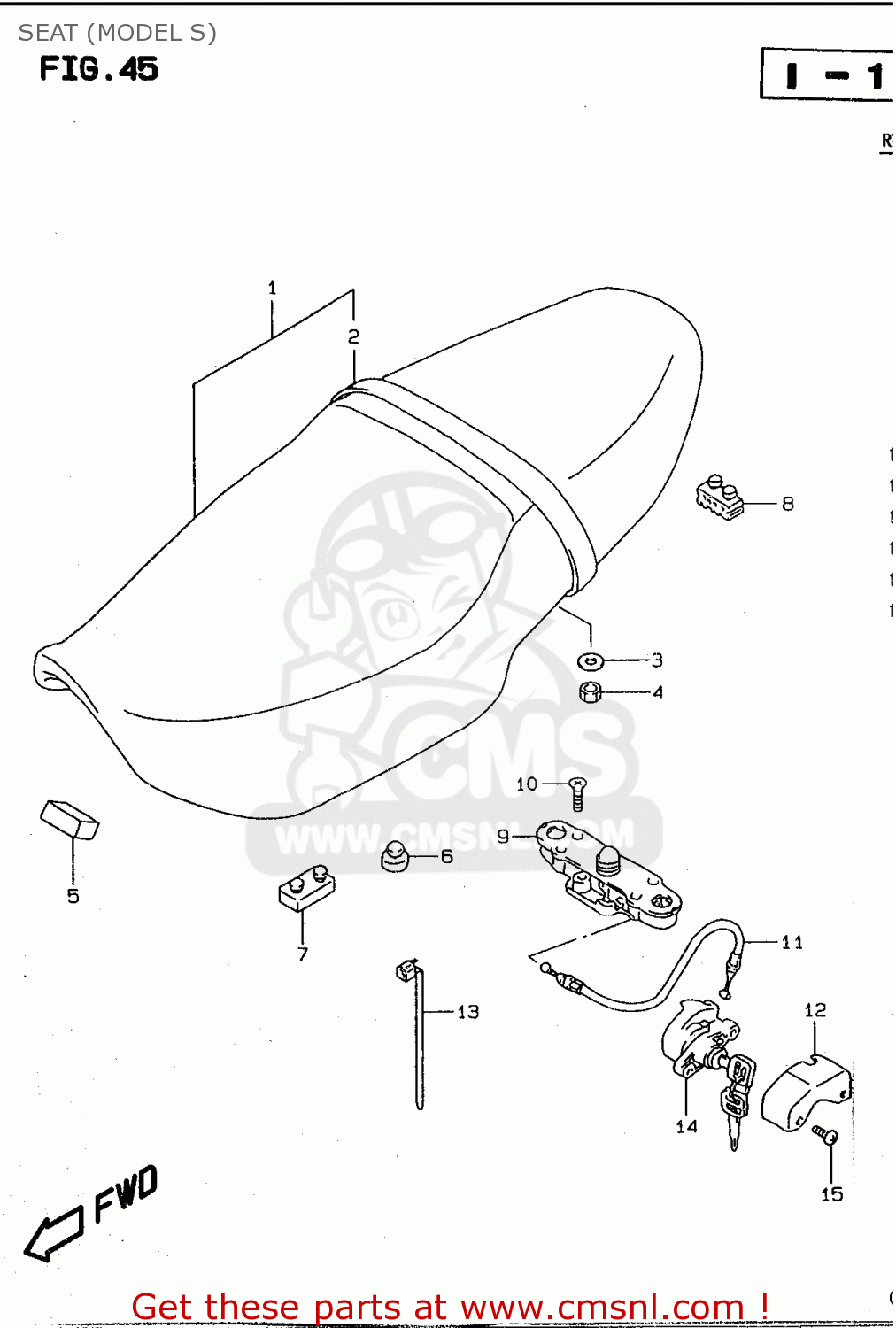

Seat (model s) diagram GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

4510026E00P21
ref: 1

SEAT ASSEMBLY

€ 392.50

4518026E00P21
ref: 2

BAND ASSEMBLY,SEAT

€ 29.50

0821206201
ref: 3

WASHER

€ 1.50

0831610063
ref: 4

NUT

€ 2.50

4525515510
ref: 5

CUSHION,TOOL(40X30X15)

€ 4.00

0932110012
ref: 6

CUSHION

€ 3.00

0932108006
ref: 7

CUSHION

€ 3.00

4514931300
ref: 8

CUSHION,SEAT(40X20X15)

€ 2.00

4522013601
ref: 9

LOCK ASSY,SEAT STRIKER

€ 47.00

0211206303
ref: 10

SCREW 6X30

€ 2.50

4528008A00
ref: 11

CABLE,SEAT LOCK

€ 13.00

4528926E00
ref: 12

GUARD,SEAT LOCK

€ 13.00

0940718403
ref: 13

CLAMP L:165

€ 2.50

9570012852
ref: 14

LOCK SET,SEAT

€ 110.50

0913906092
ref: 15

SCREW(6X14)

€ 3.50
