FRAME COVER (GSF600SW/SUW)

GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

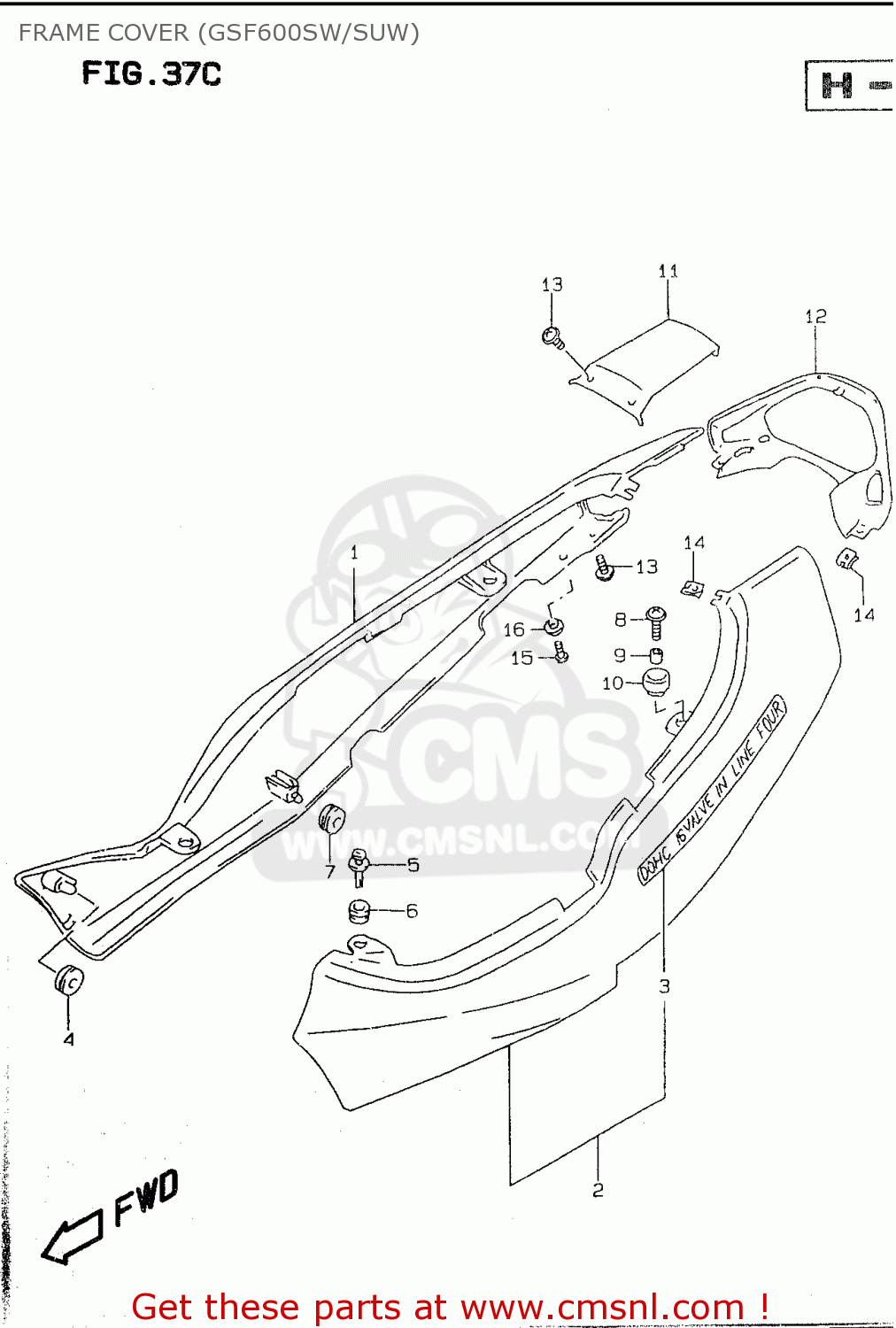

Frame cover (gsf600sw/suw) diagram GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

FRAME COVER (GSF600SW/SUW) GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

FRAME COVER (GSF600SW/SUW) GSF600 1996 (T) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

4711026E30Y0V
ref: 1-1

COVER,FRAME,R(GREEN)

€ 153.50

1-2

4711026E3033J
ref: 1-2

COVER COMP,FRAME,RIGHT

€ 172.00

1-3

4711026E30Y3H
ref: 1-3

COVER,FRAME,R(ORANGE)

€ 195.50

2-1

4721026E30Y0V
ref: 2-1

COVER,FRAME,L(GREEN)

€ 153.50

2-2

4721026E3033J
ref: 2-2

COVER COMP,FRAME,LEFT

€ 174.50

2-3

4721026E30Y3H
ref: 2-3

COVER,FRAME,L(ORANGE)

€ 162.50

3-1

6813126E3024G
ref: 3-1
FOR 33J

EMBLEM,FRAME COVER

€ 9.50

3-2

6813126E3013L
ref: 3-2
FOR Y0V

EMBLEM,FRAME COVER

€ 9.50

3-3

6813126E300FP
ref: 3-3
FOR Y3H

EMBLEM,FRAME COVER

€ 7.00

4

4716121E00
ref: 4

CUSHION,FRAME COVER FR

€ 7.50

5

0940910306
ref: 5

CLIP

€ 3.00

6

0932010501
ref: 6

CUSHION

€ 5.50

7

0932008018
ref: 7

CUSHION

€ 4.00

8

0913606105
ref: 8

SCREW(6X20)

€ 2.00

9

0918006286
ref: 9

SPACER(6.5X10X9.4)

€ 2.50

10

0932010045
ref: 10

CUSHION

€ 3.50

11-1

4731126E00Y0V
ref: 11-1

COVER,FRAME,CENTER

€ 35.50

11-2

4731126E0033J
ref: 11-2

COVER,FRAME CTR

€ 38.00

11-3

4731126E00Y3H
ref: 11-3

COVER,FRAME,CENTER

€ 33.00

12

4733126E00291
ref: 12

COVER,FRAME RR

€ 52.00

13

0324115123
ref: 13

SCREW

€ 2.50

14

0914805020
ref: 14

NUT

€ 2.00

15

0214206163
ref: 15

SCREW

€ 2.50

16

0916106021
ref: 16

WASHER(6.3X16X1.5)

€ 2.50
