COWLING NGS1150ESF E6)

GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

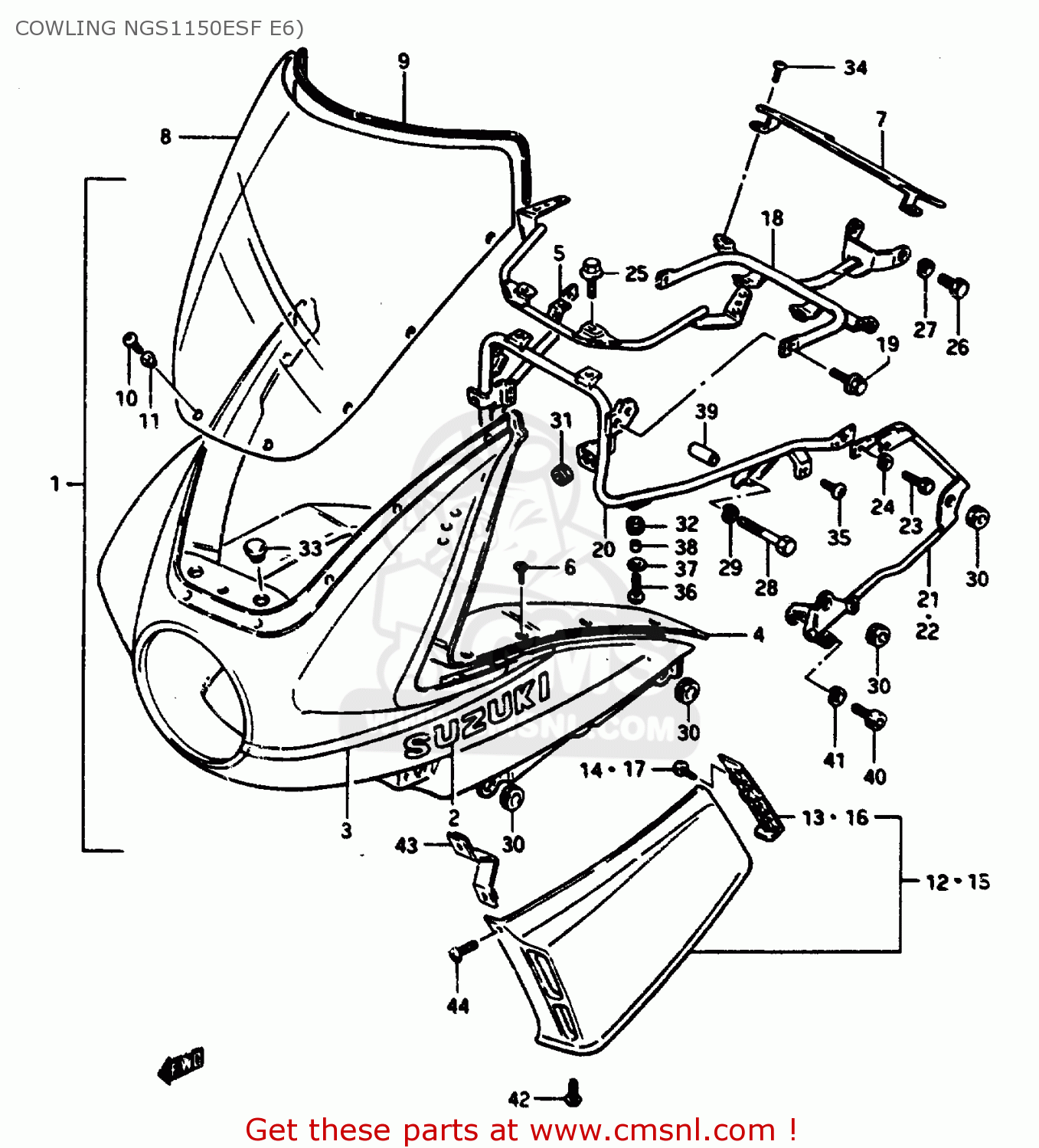

Cowling ngs1150esf e6) diagram GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

COWLING NGS1150ESF E6) GSX1100E 1984 (E) (E01 E04 E06 E21 E24)
COWLING NGS1150ESF E6) GSX1100E 1984 (E) (E01 E04 E06 E21 E24)
COWLING NGS1150ESF E6) GSX1100E 1984 (E) (E01 E04 E06 E21 E24)
prices are in EUR
ref
part #
description
quantity
1-1
9440000A317JH
ref: 1-1
FROM 94400-00A30-7JH
COWLING ASSEMBLY
€ 1,245.00
1-2
9440000A317JJ
ref: 1-2
FROM 94400-00A30-7JJ
COWLING ASSEMBLY
€ 1,245.00
2
6819300A4022R
ref: 2
EMBLEM
€ 11.00
3
6819000A30019
ref: 3
TAPE SET,COWLING
€ 0.00
4
9442000A00
ref: 4
PANEL,COWLING
€ 75.00
5
9456000A00
ref: 5
BRACE,COWLING BODY
9456000A00
€ 35.00
6
0323104104
ref: 6
SCREW, PANEL
0323104104
€ 2.00
7
9442600A00
ref: 7
COVER,METER,REAR
€ 26.00
8
9461100A00
ref: 8
WINDOW,COWLING
9461100A00
€ 464.50
9
9463100A00
ref: 9
MOLDING COWLING
€ 18.00
10
0913905023
ref: 10
SCREW(5X20)
0913905023
€ 2.00
11
0932005008
ref: 11
CUSHION
0932005008
€ 5.00
12-1
9443000A5012F
ref: 12-1
FOR 7JH FROM 94430-0
COVER,COWLING SIDE,RIGHT
€ 166.50
12-2
9443000A5022P
ref: 12-2
FOR 7JJ FROM 94430-0
COVER,COWLING SIDE,RIGHT
€ 166.50
13
9443200A00
ref: 13
PANEL,COWL SIDE COVER RR RH
9443200A00
€ 8.00
14
0354104126
ref: 14
SCREW
0354104126
€ 1.50
15-1
9444000A5012F
ref: 15-1
FOR 7JH FROM 94440-0
COVER,COWLING SIDE,LEFT
€ 120.50
15-2
9444000A5022P
ref: 15-2
FOR 7JJ FROM 94440-0
COVER,COWLING SIDE,LEFT
€ 120.50
16
9444200A00
ref: 16
PANEL,COWLING SIDE COVER
9444200A00
€ 7.50
17
0354104126
ref: 17
SCREW
0354104126
€ 1.50
18
9451000A00
ref: 18
BRACE,COWLING,FRONT
9451000A00
€ 45.00
19
0151706163
ref: 19
BOLT
€ 2.50
20
9452000A00
ref: 20
BRACE,COWL RR
9452000A00
€ 118.00
21
9453000A01
ref: 21
BRACE,COWLING SIDE,RIGHT
€ 27.50
22
9454000A01
ref: 22
BRACE,COWLING SIDE,LEFT
€ 27.50
23
0110706165
ref: 23
BOLT 6X16
0110706165
€ 2.00
24
0832121064
ref: 24
WASHER,LOCK
0832121064
€ 2.00
25
0151706163
ref: 25
BOLT
€ 2.50
26
0110708165
ref: 26
BOLT
€ 2.00
27
0832121084
ref: 27
WASHER,LOCK,8.
0832121084
€ 2.50
28
0110708505
ref: 28
BOLT
€ 3.00
29
0832121084
ref: 29
WASHER,LOCK,8.
0832121084
€ 2.50
30
0932008018
ref: 30
CUSHION
0932008018
€ 4.00
31
0932008013
ref: 31
CUSHION
0932008013
€ 4.00
32
0932009016
ref: 32
CUSHION
0932009016
€ 2.50
33
0925018003
ref: 33
PLUG(OD:22)
0925018003
€ 2.00
34
0214205105
ref: 34
SCREW
0214205105
€ 2.50
35
0214206125
ref: 35
SCREW 6X12
0214206125
€ 2.00
36
0214206205
ref: 36
SCREW, CENTER
0214206205
€ 2.00
37
0916006056
ref: 37
WASHER(6.5X18X1)
0916006056
€ 2.00
38
0918006011
ref: 38
SPACER (6.1X9X9)
0918006011
€ 2.00
39
0918008091
ref: 39
SPACER (8.6X13.8X35)
€ 3.00
40
0711008165
ref: 40
BOLT
€ 3.00
41
0832121084
ref: 41
WASHER,LOCK,8.
0832121084
€ 2.50
42
0913905029
ref: 42
SCREW
0913905029
€ 1.50
43
9455000A00
ref: 43
BRACE,SIDE,FRONT
9455000A00
€ 4.00
44
0214206167
ref: 44
SCREW
0214206167
€ 2.00
