FRONT WHEEL (MODEL F/G)

GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

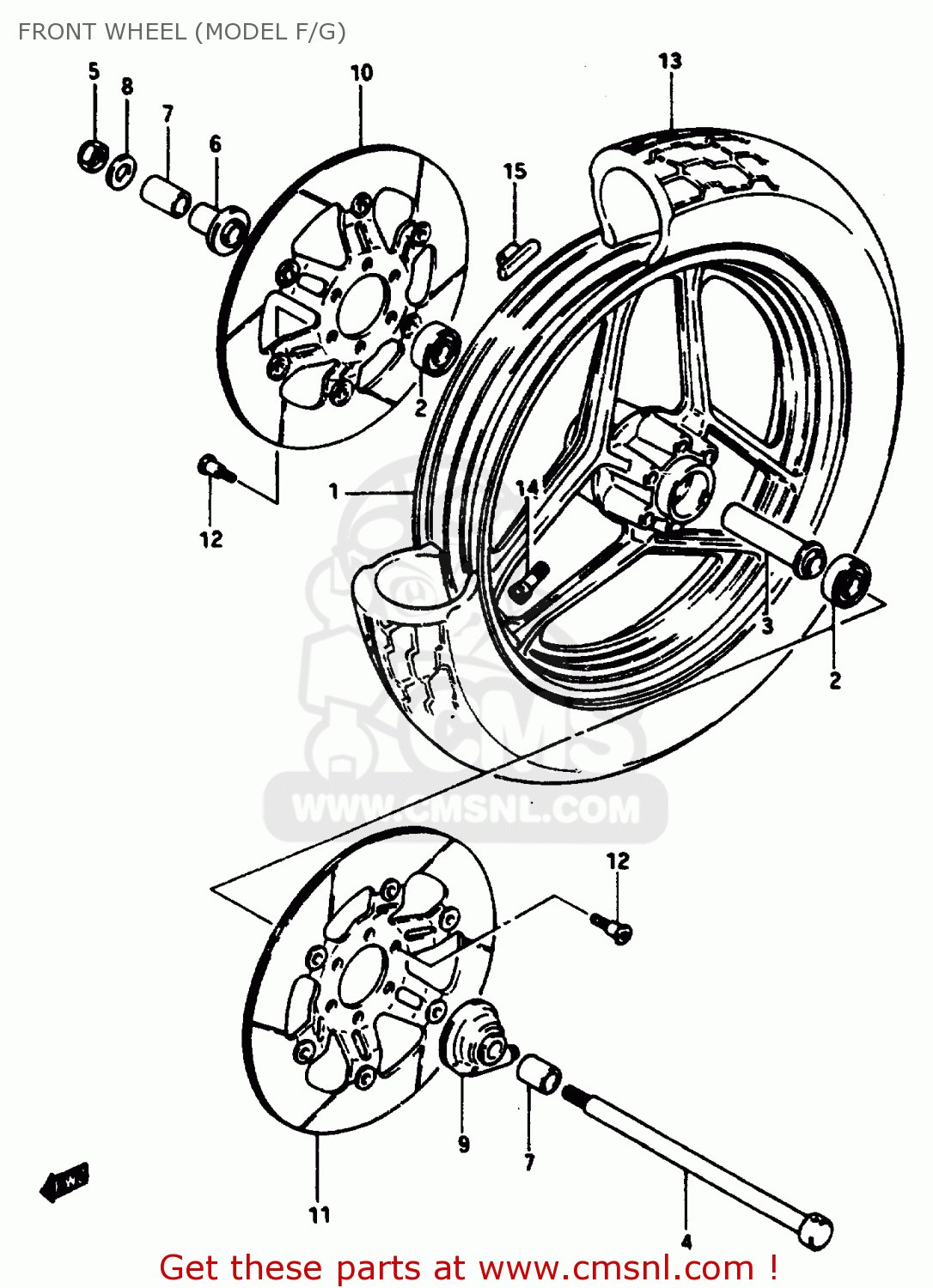

Front wheel (model f/g) diagram GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

FRONT WHEEL (MODEL F/G) GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

FRONT WHEEL (MODEL F/G) GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

prices are in EUR

ref

part #

description

quantity

1-1

5411100A2019T
ref: 1-1
MODEL F

WHEEL, FRONT (2.75X16) GOLD

€ 533.00

1-2

5411100A20291
ref: 1-2
MODEL G

CASTING WHEEL,FRONT 2.75

€ 533.00

1-3

5411100A0019T
ref: 1-3
MODEL F E22,E24 GS11

CASTING WHEEL,

€ 616.00

1-4

5411100A00291
ref: 1-4
MODEL G E6/E22/E24

CASTING WHEEL,FRONT 2.50

€ 616.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473000A00
ref: 3

SPACER,FRONT HUB BEARING

€ 17.00

4

5471100A00
ref: 4

AXLE,FRONT

€ 34.50

5

0915912011
ref: 5

NUT

€ 8.50

6

5474018402
ref: 6

SPACER,FR AXLE,R

€ 21.50

7

0918015034
ref: 7

SPACER(15X22X30)

€ 7.00

8

0832221128
ref: 8

WASHER

€ 2.00

9

5460000A00
ref: 9

BOX ASSY,SPEEDOMETER GEAR

€ 90.00

10

5921000A01
ref: 10

DISC,FRONT BRAKE,RIGHT

€ 259.00

11

5922000A01
ref: 11

DISC,FRONT BRAKE,LEFT

€ 312.00

12-1

0910608041
ref: 12-1
MODEL F

BOLT

€ 6.00

12-2

0910608062
ref: 12-2
MODEL G

BOLT

€ 6.00

13-1

5510000A10
ref: 13-1

TIRE 110/90-16 (T/L)

€ 0.00

13-2

5510000A70
ref: 13-2
GSX1100ESF/EFF/ESG/E

TIRE, T/L FRONT (120/80V16) BS

€ 151.00

14

4313075150
ref: 14

VALVE,TIRE

€ 14.50

15-1

5541100A0019T
ref: 15-1
MODEL F

BALANCER,WHEEL

€ 6.50

15-2

5541200A0019T
ref: 15-2
MODEL F

BALANCER,WHEEL

€ 7.00

15-3

5541300A0019T
ref: 15-3
MODEL F

BALANCER,WHEEL

€ 4.00

15-4

5541100A00291
ref: 15-4
MODEL G

BALANCER,WHEEL

€ 6.50

15-5

5541100A00291
ref: 15-5
MODEL G

BALANCER,WHEEL

€ 6.50

15-6

5541100A00291
ref: 15-6
MODEL G

BALANCER,WHEEL

€ 6.50
