SEAT

GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

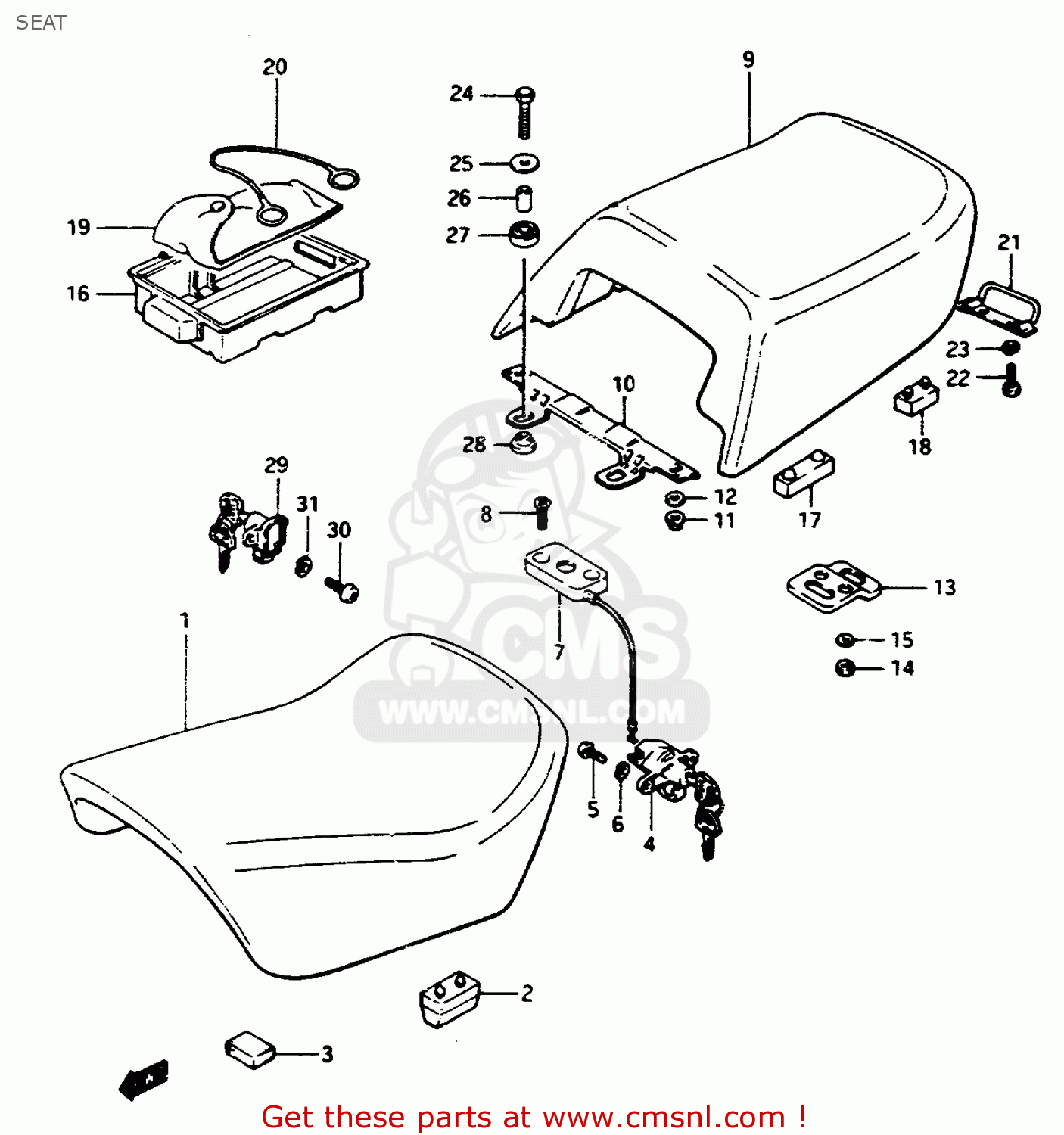

Seat diagram GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

SEAT GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

SEAT GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

prices are in EUR

ref

part #

description

quantity

1-1

4510000A0157S
ref: 1-1

SEAT SET (BLUE)

€ 150.50

1-2

4510000A5157S
ref: 1-2
E22

SEAT SET (BLUE)

€ 0.00

2

4514900A00
ref: 2

CUSHION,SEAT

€ 0.00

3

4525515510
ref: 3

CUSHION,TOOL(40X30X15)

€ 4.00

4

4570000A00KEY
ref: 4

LOCK ASSEMBLY,SEAT & HELMET

€ 61.00

5

0211206126
ref: 5

SCREW

€ 1.50

6

0832121066
ref: 6

WASHER,LOCK

€ 2.00

7

4522000A00
ref: 7

BRACKET,SEAT SUPPORT

€ 19.50

8

0212206255
ref: 8

SCREW

€ 2.00

9-1

4530000A1057S
ref: 9-1

SEAT ASSEMBLY,PILLION

€ 142.00

9-2

4530000A0057S
ref: 9-2
E21,E24,E26,E39

SEAT SET, PILLION (BLUE)

€ 176.00

10

4532100A00
ref: 10

PLATE,PILLION SEAT,FRONT

€ 0.00

11

0831011066
ref: 11

NUT

€ 2.00

12

0832121066
ref: 12

WASHER,LOCK

€ 2.00

13

4533000A00
ref: 13

PLATE, SEAT HOOK REAR

€ 0.00

14

0831011066
ref: 14

NUT

€ 2.00

15

0832121066
ref: 15

WASHER,LOCK

€ 2.00

16

4511500A00
ref: 16

TOOL BOX

€ 11.50

17

4514943500
ref: 17

CUSHION,SEAT

€ 3.00

18

0932108012
ref: 18

CUSHION(40X23X12.7)

€ 4.50

19

0980000274
ref: 19

TOOL SET

€ 53.00

20

4515100A00
ref: 20

BAND,TOOL BOX

€ 4.00

21

4521000A00
ref: 21

PLATE,SEAT HOOK,REAR

€ 4.50

22

0110706126
ref: 22

BOLT

€ 2.00

23

0832121066
ref: 23

WASHER,LOCK

€ 2.00

24

0912806010
ref: 24

SCREW(6X30)

€ 1.50

25

0916006004
ref: 25

WASHER (6.5X24X1.6)

€ 1.50

26

0918006072
ref: 26

SPACER

€ 2.00

27

0932010020
ref: 27

CUSHION

€ 4.00

28

0932014013
ref: 28

CUSHION

€ 3.00

29

9570000A00KEY
ref: 29

LOCK ASSEMBLY,HELMET

€ 26.00

30

0211206126
ref: 30

SCREW

€ 1.50

31

0832121066
ref: 31

WASHER,LOCK

€ 2.00
