STEERING STEM GSX1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EFF/E

GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

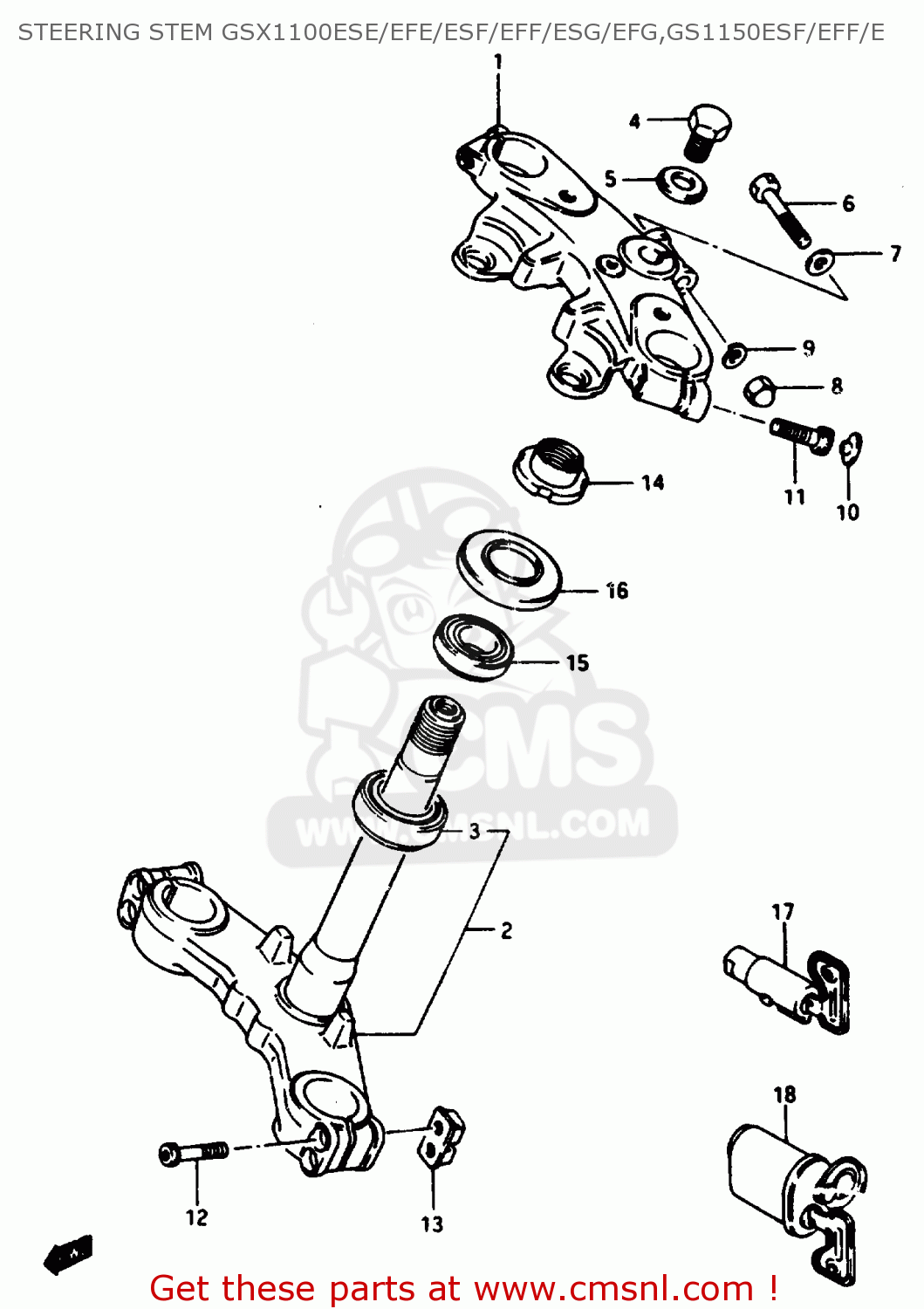

Steering stem gsx1100ese/efe/esf/eff/esg/efg,gs1150esf/eff/e diagram GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

STEERING STEM GSX1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EFF/E GSX1100E 1984 (E) (E01 E04 E06 E21 E24)
STEERING STEM GSX1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EFF/E GSX1100E 1984 (E) (E01 E04 E06 E21 E24)
STEERING STEM GSX1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EFF/E GSX1100E 1984 (E) (E01 E04 E06 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
5131100A0015T
ref: 1
HEAD,STEERING STEM
€ 171.00
2
5141000A5015T
ref: 2
STEM,STEERING
€ 302.50
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
5135345380
ref: 4
NUT,STEM HEAD
€ 8.50
5
5135649400
ref: 5
WASHER,STEERING STEM
€ 4.00
6
0110708505
ref: 6
BOLT
€ 3.00
7
0832211084
ref: 7
WASHER
0832211084
€ 1.50
8
0831311085
ref: 8
NUT,M8X1.25X12
€ 2.00
9
0832121084
ref: 9
WASHER,LOCK,8.
0832121084
€ 2.50
10
0925008010
ref: 10
CAP(OD:20)
0925008010
€ 2.50
11
5135200A00
ref: 11
BOLT,FORK INNER TUBE FITTING
5135200A00
€ 6.00
12
0711008455
ref: 12
BOLT 8X45
0711008455
€ 3.00
13
5145849000
ref: 13
NUT,FR FORK INNER TUBE
5145849000
€ 5.00
14
5163134200
ref: 14
NUT,STEERING STEM
5163134200
€ 23.00
15
0926525008
ref: 15
TAPER,ROLLER BEARING
0926525008
€ 48.50
16
5164340502
ref: 16
DUST SEAL,STEERING UPR
5164340502
€ 8.00
17
5190022662
ref: 17
E15,E22,E26
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
18
5190045400
ref: 18
E17
LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE
€ 0.00
