LEFT HANDLE SWITCH

GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

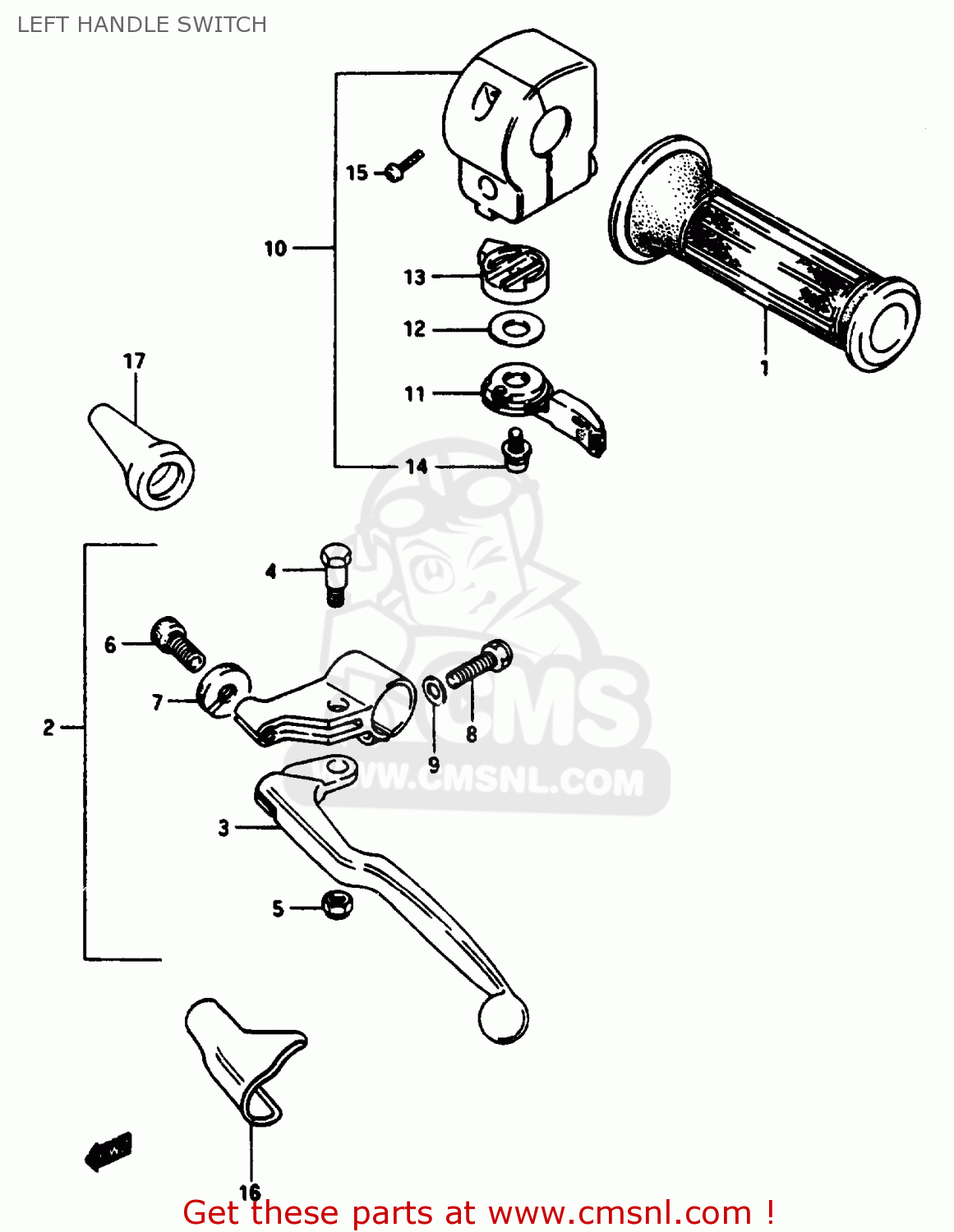

Left handle switch diagram GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

LEFT HANDLE SWITCH GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

LEFT HANDLE SWITCH GSX1100E 1984 (E) (E01 E04 E06 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

5721149500
ref: 1

GRIP,L

€ 9.00

2

5750016700
ref: 2

LEVER ASSY, CLUTCH

€ 55.00

3

5762049111
ref: 3

LEVER,CLUTCH

€ 34.00

4

5743149110
ref: 4

BOLT,LEVER PIVOT

€ 5.00

5

0831921065
ref: 5

NUT

€ 2.50

6

5744144400
ref: 6

ADJUSTER,CABLE

€ 5.50

7

5744244400
ref: 7

NUT,CABLE ADJUSTER LOCK

€ 4.00

8

0120406204
ref: 8

BOLT

€ 2.00

9

0832221064
ref: 9

WASHER

€ 2.00

10-1

3740049553
ref: 10-1

SWITCH ASSY, HANDLE LH

€ 165.00

10-2

3740049581
ref: 10-2
E34

SWITCH ASSY, HANDLE LH

€ 165.00

10-3

3740049591
ref: 10-3
E22,MODEL G E2

SWITCH ASSY, HANDLE LH

€ 143.00

11

5872127503
ref: 11

LEVER,STARTER

€ 8.00

12

5872203010
ref: 12

WASHER,ADJUSTER

€ 3.00

13

3757249441
ref: 13

BODY,STARTER LEVER

€ 15.50

14

3757449440
ref: 14

SCREW,CHOKE LE

€ 2.50

15

0211205168
ref: 15

SCREW

€ 2.50

16

5766131000
ref: 16

COVER,CLUTCH LEVER

€ 5.50

17

5827331000
ref: 17

BOOT,CLUTCH CABLE

€ 2.50
