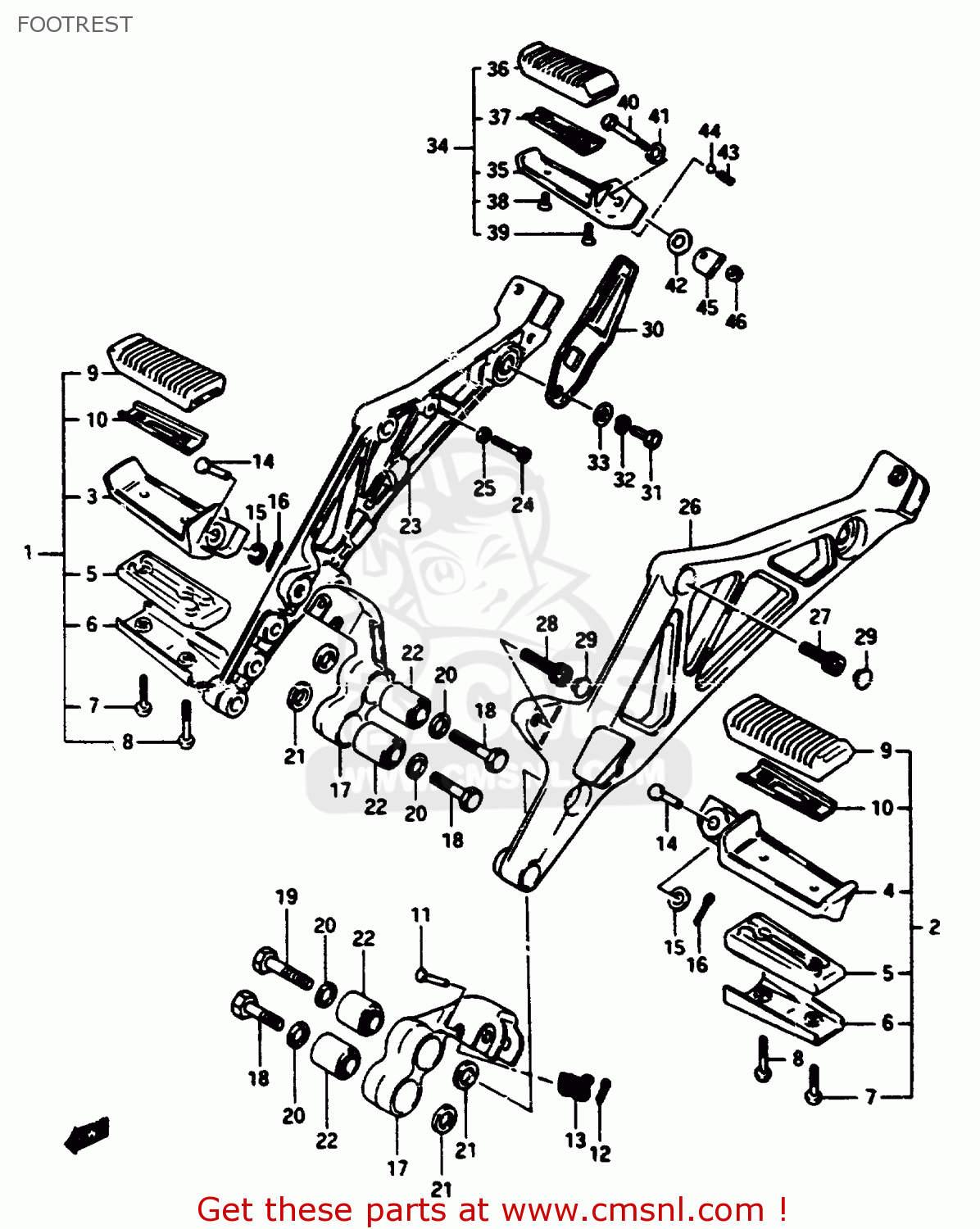

FOOTREST

ref

part #

description

quantity

1-1

4350131300
ref: 1-1
MODEL E

FOOTREST ASSEMBLY,FRONT,RIGHT

€ 54.50

1-2

4350100A00
ref: 1-2
MODEL F/G

FOOTREST ASSY,FR,R

€ 110.50

2-1

4350231300
ref: 2-1
MODEL E

FOOTREST ASSEMBLY,FRONT,LEFT

€ 50.00

2-2

4350200A00
ref: 2-2
MODEL F/G

FOOTREST ASSEMBLY,FRONT,LEFT

€ 67.50

3

4351031300
ref: 3

BAR,FRONT FOOTREST,RIGHT

€ 18.00

4

4352031300
ref: 4

BAR,FR FOOTREST,L

€ 48.00

5

4353300A00
ref: 5

BAR,FR FOOTREST NO.2

€ 42.00

6

4353400A00
ref: 6
MODEL F/G

COVER,FRONT FOOTREST B

€ 12.50

7-1

0211205128
ref: 7-1
MODEL E

SCREW

€ 2.50

7-2

0211205257
ref: 7-2
MODEL F/G

SCREW

€ 2.00

8-1

0211205168
ref: 8-1
MODEL E

SCREW

€ 2.50

8-2

0211205308
ref: 8-2
MODEL F/G

SCREW

€ 1.50

9

4355131300
ref: 9

RUBBER,FOOTREST

€ 15.50

10

4358033301
ref: 10

PLATE,FR FOOTREST RUBBER

€ 4.50

11

0920006010
ref: 11

PIN

€ 2.50

12

0411120208
ref: 12

PIN 20X20

€ 1.50

13

0944812014
ref: 13

SPRING

€ 4.50

14

0920008002
ref: 14

PIN

€ 2.00

15

0832211088
ref: 15

WASHER

€ 2.00

16

0411120208
ref: 16

PIN 20X20

€ 1.50

17

4353000A00
ref: 17

HOLDER,FRONT FOOTREST

€ 59.50

18

0910010191
ref: 18

BOLT 10X40

€ 2.00

19

0910110033
ref: 19

BOLT

€ 4.50

20

0832211107
ref: 20

WASHER

€ 2.50

21

0916010005
ref: 21

WASHER(10.5X20X3.2)

€ 2.00

22

0931910040
ref: 22

BUSHING

€ 9.00

23

4381000A00
ref: 23

BRACKET,MUFFLER,RIGHT

€ 129.00

24

0110706257
ref: 24

BOLT

€ 2.00

25

0831011067
ref: 25

NUT 6MM

€ 2.50

26

4382000A00
ref: 26

BRACKET,MUFFLER,LEFT

€ 162.50

27

0711010258
ref: 27

BOLT

€ 3.00

28

0711010358
ref: 28

BOLT, CENTER

€ 3.50

29

4357534500
ref: 29

CAP

€ 1.50

30

4367100A00
ref: 30

GUIDE,REAR FOOT

€ 5.50

31

0110708127
ref: 31

BOLT 8X12

€ 2.50

32

0832121088
ref: 32

LOCK WASHER

€ 2.00

33

0832211088
ref: 33

WASHER

€ 2.00

34-1

4360031300
ref: 34-1

FOOTREST ASSY,PILLION,R

€ 39.50

34-2

4370031300
ref: 34-2

FOOTREST ASSEMBLY,PILLION

€ 27.50

35-1

4361045501
ref: 35-1

BAR,PILLION FOOTREST,RIGHT

€ 17.00

35-2

4371045501
ref: 35-2

BAR,PILLION FOOTREST,LEFT

€ 16.00

36

4361231300
ref: 36

RUBBER,RR FOOTREST

€ 8.00

37

4363245501
ref: 37

PLATE,RUBBER STOPPER

€ 2.50

38

0213205127
ref: 38

SCREW 5X12

€ 2.50

39

0213205167
ref: 39

SCREW 5X16

€ 2.00

40

0911106035
ref: 40

BOLT

€ 4.50

41

0832211088
ref: 41

WASHER

€ 2.00

42

0918108004
ref: 42

SHIM(8.2X22X0.2)

€ 2.50

43

0944005028
ref: 43

SPRING

€ 2.50

44

0611108003
ref: 44

BALL

€ 1.50

45-1

4363543400
ref: 45-1

PLATE,SPRING STOP,R

€ 2.00

45-2

4373543400
ref: 45-2

PLATE,SPRING STOP,LEFT

€ 4.50

46

0831931067
ref: 46

NUT

€ 2.50
