FRONT CALIPER
GSX1100G 1993 (P) USA (E03)

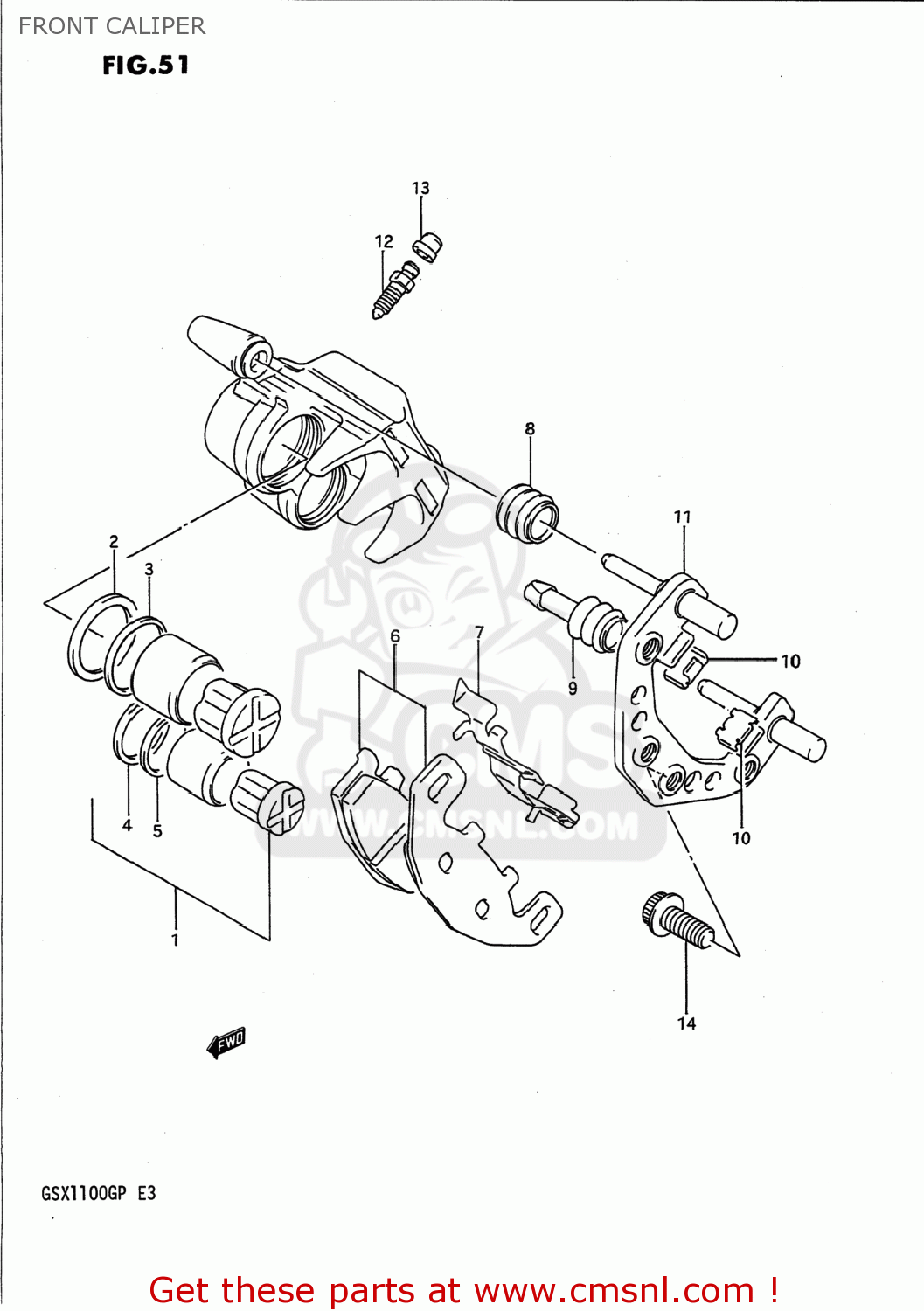

Front caliper diagram GSX1100G 1993 (P) USA (E03)
FRONT CALIPER GSX1100G 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5910026D00
ref:
59100-26D01
CALIPER ASSEMBLY,RIGHT
€ 677.50
5910026D00
ref:
59100-26D01
CALIPER ASSEMBLY,RIGHT
€ 677.50
5930026D00
ref:
59300-26D01
CALIPER ASSEMBLY,LEFT
€ 558.50
5930026D00
ref:
59300-26D01
CALIPER ASSEMBLY,LEFT
€ 558.50
5910026D01
ref:
CALIPER ASSY,R
€ 677.50
5930026D01
ref:
CALIPER ASSEMBLY,LEFT
€ 558.50
1
5910001830
ref: 1
59100-01831
PISTON SET
€ 182.50
2
5910739100
ref: 2
59107-35F00
SEAL,PISTON
€ 18.00
3
5910836A00
ref: 3
SEAL,WIPER
€ 14.50
4
5910704A00
ref: 4
59107-40F00
SEAL,PISTON
€ 12.00
5
5910804A00
ref: 5
SEAL,WIPER
€ 10.50
6
5910026810
ref: 6
PAD SET (NAS)
€ 68.50
7
5911501D00
ref: 7
SPRING,PAD
€ 10.00
8
5911244B00
ref: 8
BOOT,AXLE
€ 8.00
9
5911301D00
ref: 9
INSULATOR,AXLE
€ 7.00
10
5911601D00
ref: 10
GUIDE,PAD
€ 8.00
11
5915001D00
ref: 11
CARRIER,CALIPER
€ 73.00
12
5912118410
ref: 12
BLEEDER
€ 8.00
13
5912218410
ref: 13
55156-66310
CAP,BREATHER
€ 6.00
14
0712010258
ref: 14
07120-10257
BOLT
€ 4.00
