SIGNAL GENERATOR

GSX1100G 1993 (P) USA (E03)

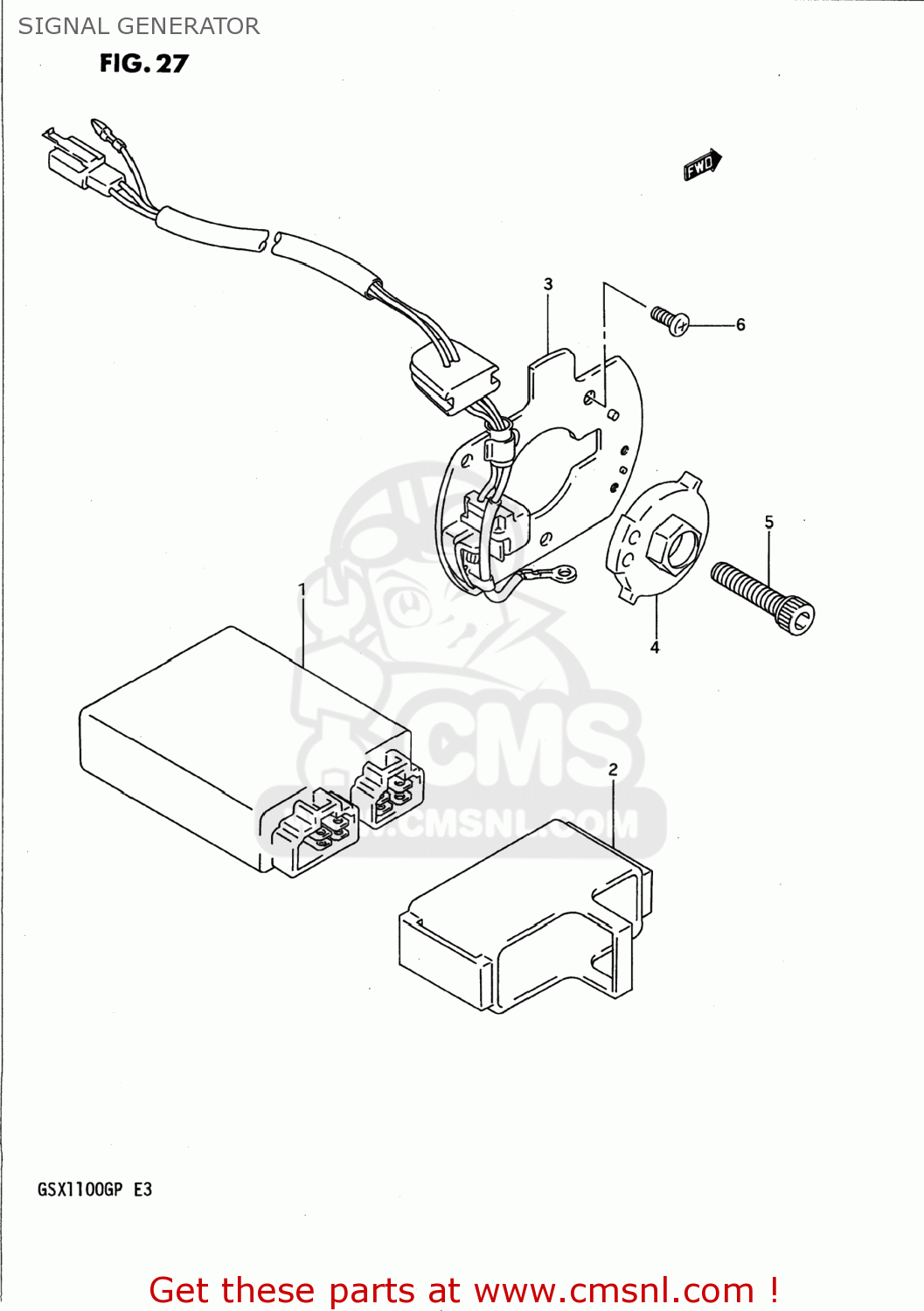

Signal generator diagram GSX1100G 1993 (P) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3290026D00
ref: 1-1

IGNITER ASSEMBLY

€ 626.00

1-2

3290026D10
ref: 1-2

IGNITER ASSEMBLY

€ 271.50

3298040C00
ref: 2
32980-40C01

CUSHION,IGNITER

€ 9.50

3311019C00
ref: 3
33110-17C00

GENERATOR ASSEMBLY,SIGNAL

€ 324.00

4-1

3312019C00
ref: 4-1
33120-19C20

ROTOR,SIGNAL

€ 182.00

4-2

3312026D00
ref: 4-2
33120-19C20

ROTOR COMP,SIGNAL

€ 182.00

0711008306
ref: 5
07130-0830A

BOLT

€ 3.00

0211205107
ref: 6

SCREW

€ 2.00
