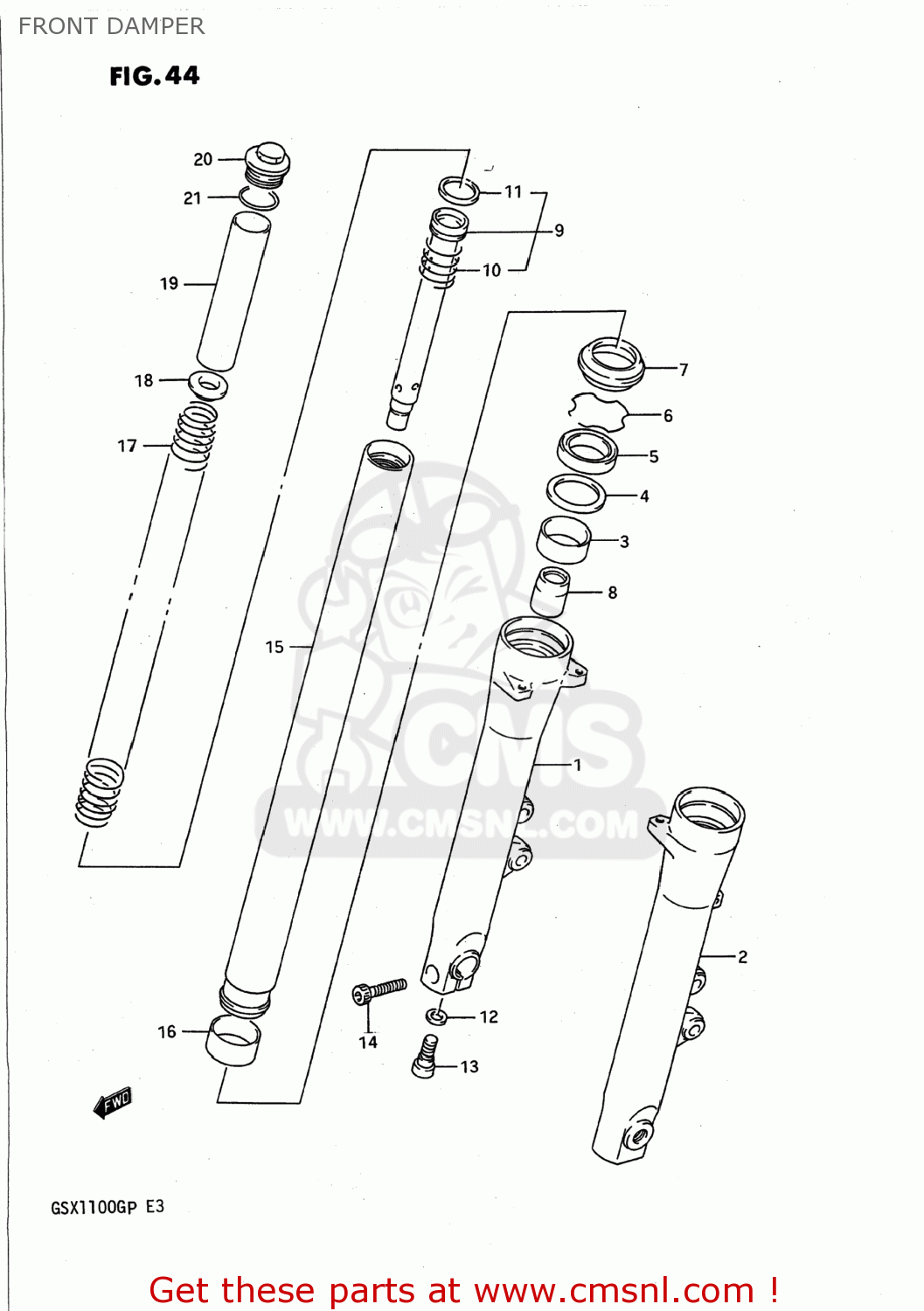

FRONT DAMPER

ref

part #

description

quantity

5110326D10
ref:

DAMPER ASSEMBLY,RIGHT

€ 396.00

5110326D50
ref:

DAMPER ASSEMBLY,RIGHT

€ 396.00

5110426D10
ref:

DAMPER ASSEMBLY,LEFT

€ 396.00

5110426D50
ref:

DAMPER ASSEMBLY,LEFT

€ 396.00

1

5113026D00
ref: 1

TUBE,OUTER,RIGHT

€ 425.00

2

5114026D00
ref: 2

TUBE,OUTER,L

€ 454.50

3

5116740C00
ref: 3

METAL,SLIDE

€ 13.50

4

5115814200
ref: 4

WASHER

€ 4.00

5

5115340C00
ref: 5
51153-46E20

OIL SEAL,FRONT FORK

€ 15.50

6

5115614200
ref: 6

RING,STOPPER

€ 4.50

7

5117340C00
ref: 7

SEAL,DUST

€ 18.50

8

5119506C00
ref: 8

PIECE,OIL LOCK

€ 13.00

9-1

5114626D10
ref: 9-1
51146-26D00

CYLINDER,FRONT FORK

€ 58.50

9-2

5114626D00
ref: 9-2

CYLINDER

€ 58.50

10

5117726D00
ref: 10

SPRING,REBOUND

€ 6.00

11

5119631D00
ref: 11

RING,PISTON

€ 6.00

12

5114814200
ref: 12

GASKET (NAS)

€ 2.00

13

5114714200
ref: 13

BOLT(14X25)

€ 5.50

14

0711008407
ref: 14
07130-08407

BOLT

€ 3.50

15

5111026D10
ref: 15

TUBE,INNER

€ 313.00

16

5112140C00
ref: 16

PISTON

€ 11.50

17-1

5117126D10
ref: 17-1
51171-26D00

SPRING,MAIN

€ 52.50

17-2

5117126D00
ref: 17-2

SPRING,MAIN

€ 52.50

18

5117226D00
ref: 18

GUIDE,SPRING

€ 7.00

19-1

5117626D10
ref: 19-1

SPACER

€ 8.50

19-2

5117626D50
ref: 19-2

SPACER,SPRING

€ 8.00

20-1

5135126D00
ref: 20-1
51351-31D00

CAP,FORK INNER TUBE

€ 32.50

20-2

5135131D00
ref: 20-2

CAP,FORK

€ 32.50

21

5111714200
ref: 21

O RING

€ 2.00

all assemblies
