SPEEDOMETER
GSX1100G 1993 (P) USA (E03)

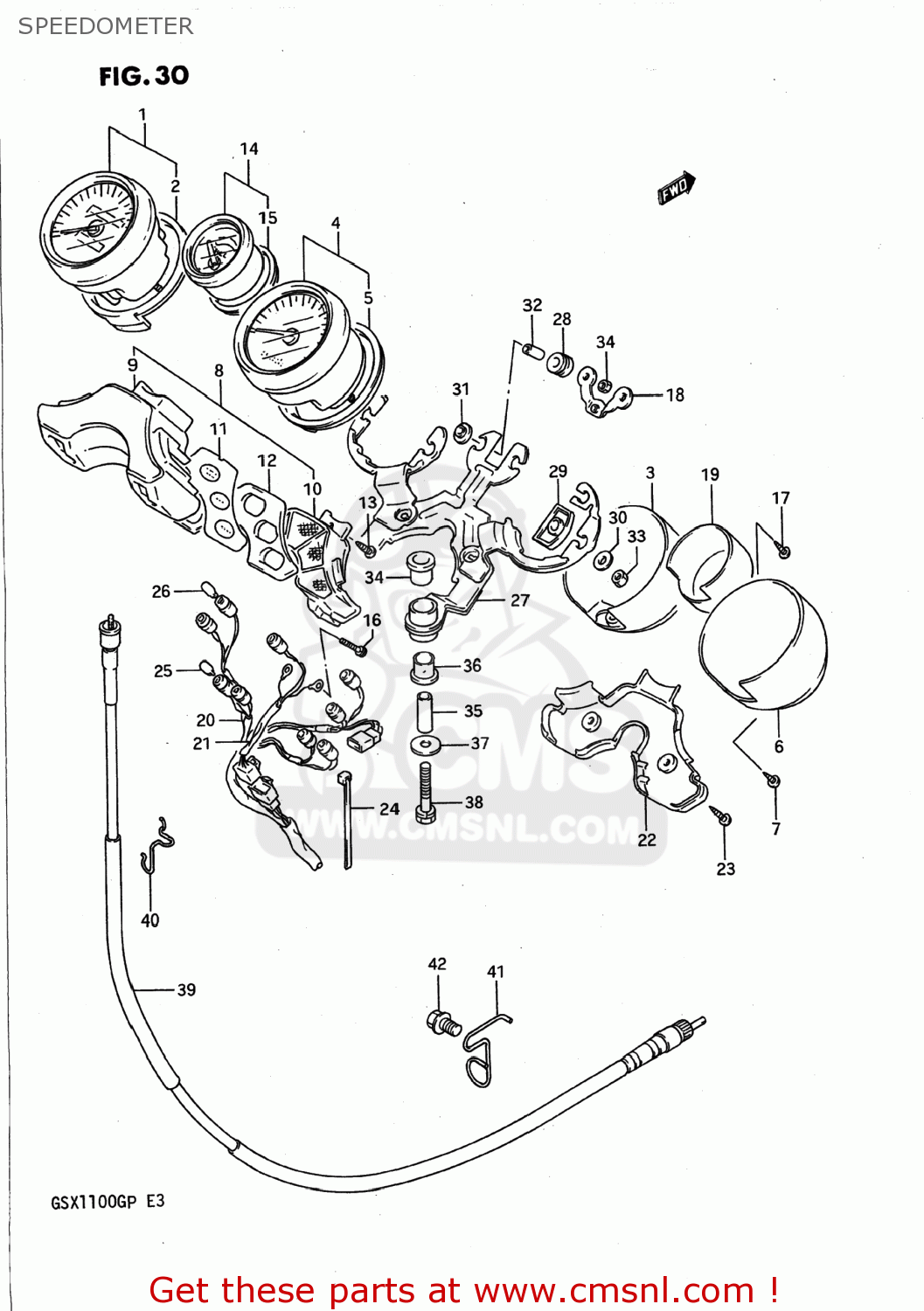

Speedometer diagram GSX1100G 1993 (P) USA (E03)
SPEEDOMETER GSX1100G 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3411026D20
ref: 1
34110-26D21
SPEEDOMETER
€ 354.50
2
3416126D00
ref: 2
DAMPER
€ 4.00
3
3411126D00
ref: 3
34111-26D01
COVER,SPEEDOMETER
€ 69.00
4
3421026D20
ref: 4
TACHOMETER
€ 496.00
5
3416126D00
ref: 5
DAMPER
€ 4.00
6
3421126D00
ref: 6
34211-26D01
TACHOMETER
€ 69.00
7
0354114128
ref: 7
03541-1412A
SCREW,METER
€ 2.00
8
3638026D20
ref: 8
36380-26D10
BOX,PILOT
€ 125.00
9
3638126D00
ref: 9
CASE,UPR
€ 54.00
10
3638226D20
ref: 10
LWR CASE
€ 43.50
11
3639326D00
ref: 11
PANEL
€ 20.50
12
3639626D00
ref: 12
GASKET (NAS)
€ 8.50
13
3418314A00
ref: 13
34184-12B00
SCREW
€ 1.50
14
3441026D20
ref: 14
34410-26D21
FUEL METER
€ 173.00
15
3416126D20
ref: 15
DAMPER
€ 18.50
16
3438309400
ref: 16
SCREW(3X22)
€ 2.50
17
0211274108
ref: 17
02112-7410B
SCREW
€ 2.00
18
3431326D20
ref: 18
PLATE,SET
€ 17.00
19
3431126D00
ref: 19
34311-26D01
COVER,FUEL METER
€ 47.00
20
3417026D20
ref: 20
SOCKET,METER
€ 40.50
21
3417026D10
ref: 21
SOCKET,FUEL METER
€ 26.00
22
3638326D00
ref: 22
COVER,PILOT BOX
€ 21.00
23
0351104145
ref: 23
03512-04149
SCREW
€ 1.50
24
3638545300
ref: 24
CLAMP
€ 4.50
25
0947112103
ref: 25
BULB(12V3W,T6.5)
€ 2.50
26
0947112108
ref: 26
BULB(12V1.7W,T6.5)
€ 2.00
27
3495026D20
ref: 27
BRACKET,METER
€ 136.50
28
3419126D10
ref: 28
DAMPER
€ 11.50
29
3419126D00
ref: 29
34191-26D20
CUSHION,METER
€ 8.50
30
3418145C10
ref: 30
09160-05013
WASHER
€ 1.50
31
3418526D00
ref: 31
WASHER,FUEL,METER
€ 2.50
32
3418726D00
ref: 32
SPACER,FUEL METER
€ 3.00
33
0831011057
ref: 33
08310-00057
NUT 5MM
€ 2.50
34
0831011047
ref: 34
08310-00047
NUT
€ 2.00
35
0930308001
ref: 35
BUSHING L:34
€ 6.00
36
0932012024
ref: 36
CUSHION
€ 2.00
37
0916008085
ref: 37
09160-08151
WASHER (8.2X26X1.6)
€ 2.00
38
0113708555
ref: 38
01570-0855B
BOLT
€ 3.50
39
3491026D00
ref: 39
CABLE ASSY,SPEEDOMETER
€ 80.00
40
3493826D00
ref: 40
GUIDE,SPEEDOMETER CABLE
€ 4.50
41
3493811D00
ref: 41
34938-11D0V
CLAMP,SPEEDOMETER CABLE
€ 7.50
42-1
0910610059
ref: 42-1
09103-10195
BOLT
€ 2.00
42-2
0910310195
ref: 42-2
BOLT(10X12)
€ 2.00
