FUEL PUMP

GSX1100G 1993 (P) USA (E03)

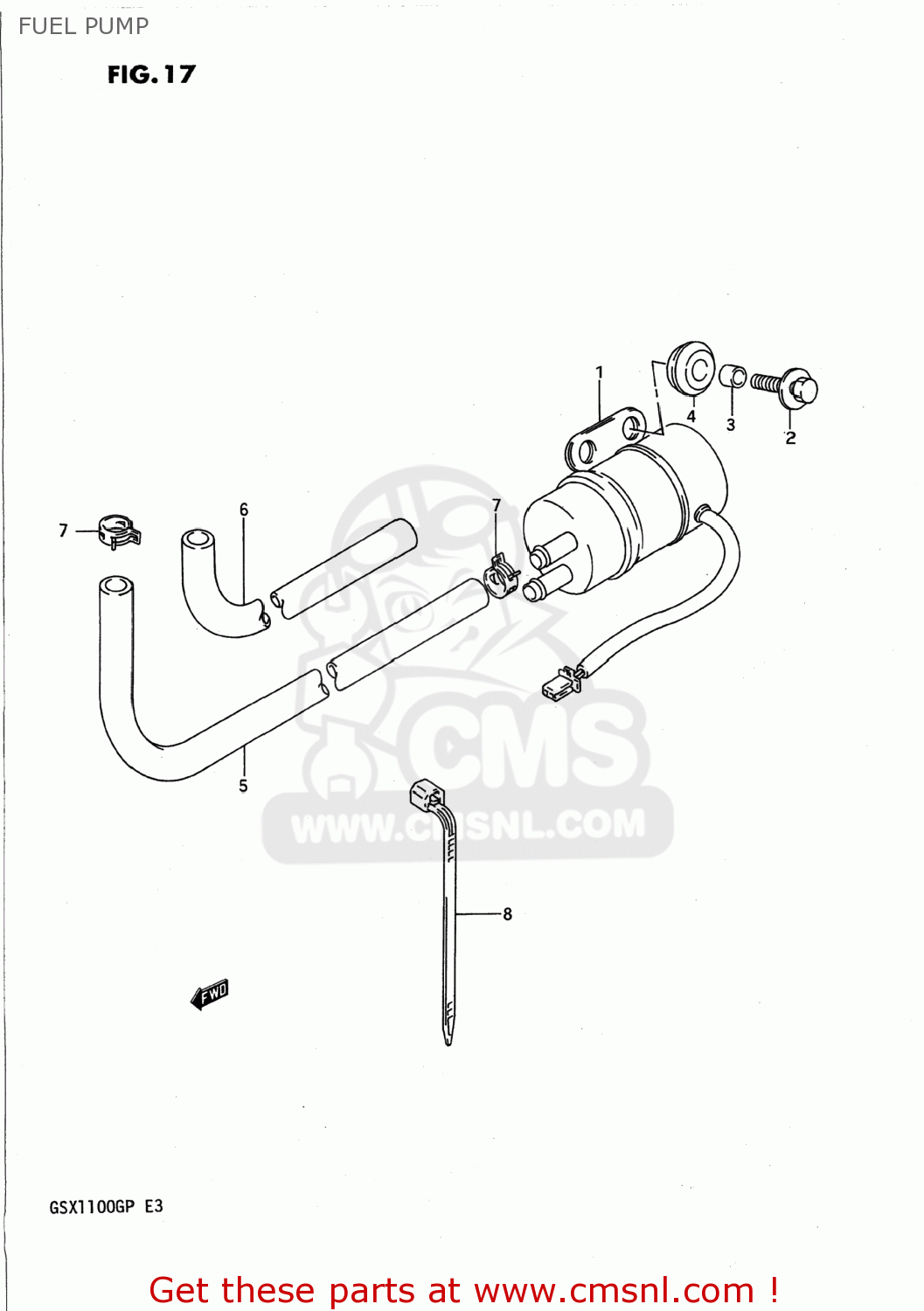

Fuel pump diagram GSX1100G 1993 (P) USA (E03)

FUEL PUMP GSX1100G 1993 (P) USA (E03)

FUEL PUMP GSX1100G 1993 (P) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1510026D00
ref: 1

PUMP ASSY,FUEL

€ 260.50

2

0911606010
ref: 2

BOLT(6X20)

€ 2.00

3

0918006011
ref: 3
09180-06263

SPACER (6.1X9X9)

€ 2.00

4

0932009026
ref: 4
09320-09045

CUSHION

€ 4.00

5

093547013300A
ref: 5
09355-70125-00B

HOSE (7X13X1000)

€ 36.00

6

0935114152600
ref: 6

PROTECTOR(14.5X15.5X600)

€ 9.00

7

0940112404
ref: 7

CLIP

€ 2.50

8

0940714403
ref: 8

CLAMP(L:125)

€ 2.50
