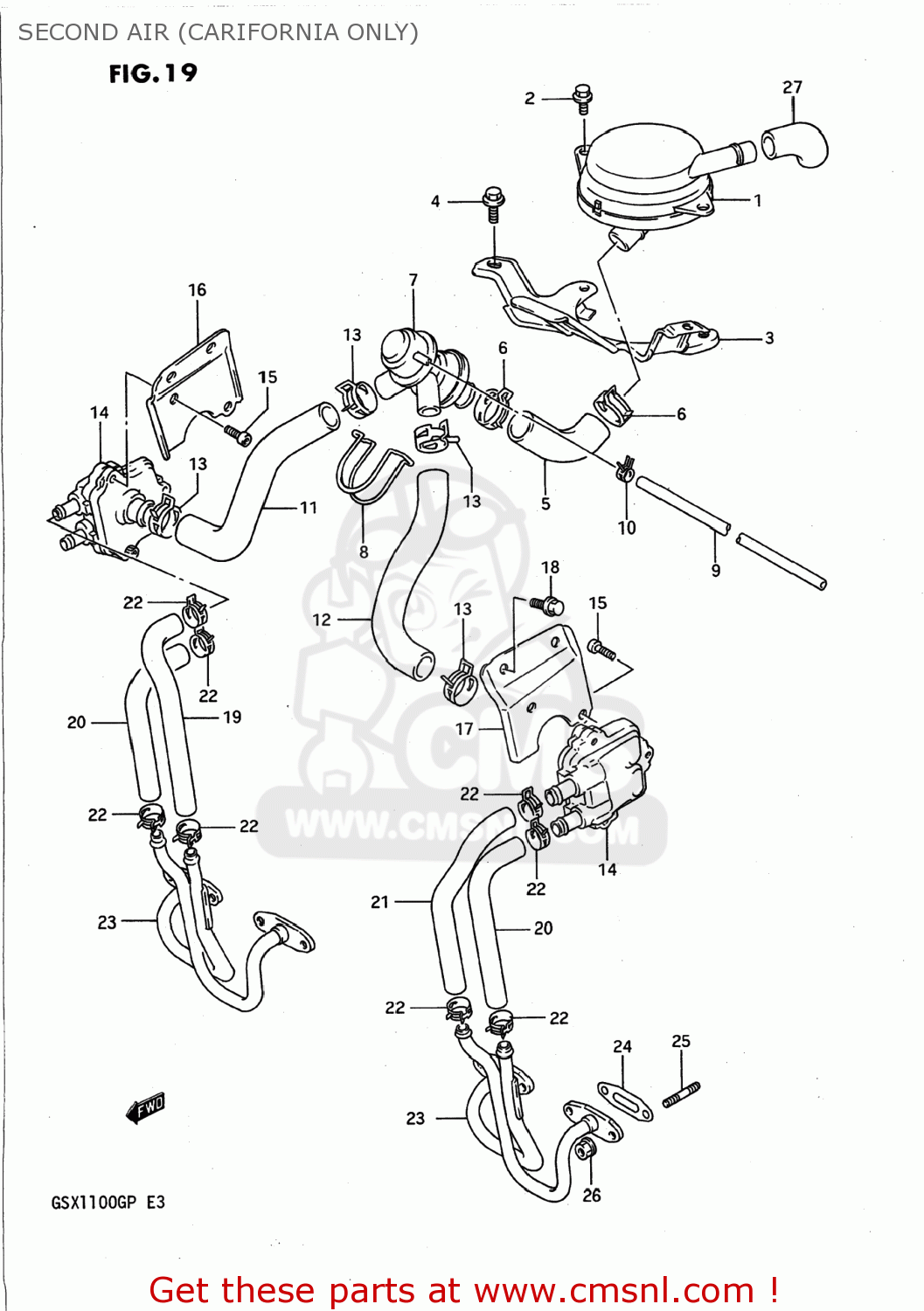

SECOND AIR (CARIFORNIA ONLY)

ref

part #

description

quantity

1-1

1870026D00
ref: 1-1

CLEANER ASSEMBLY,SECOND AIR

€ 38.00

1-2

1870026D01
ref: 1-2
18700-17C03

CLEANER ASSEMBLY,SECOND AIR

€ 38.00

2

0151706126
ref: 2
01550-0612A

BOLT

€ 2.50

3

1875026D00
ref: 3

BRACKET COMP,SECOND AIR C

€ 0.00

4

0151706166
ref: 4

BOLT

€ 2.50

5

1855126D00
ref: 5

HOSE,SECOND AIR NO.3

€ 0.00

6

0940125402
ref: 6

CLIP

€ 3.00

7

1851006B00
ref: 7

VALVE ASSY,2ND AIR SWITCHING

€ 100.50

8

1852217C00
ref: 8

CLAMP,SWITCHING VALVE

€ 8.00

9

0935945852300
ref: 9
09359-45852-600

HOSE

€ 9.00

10

0940107401
ref: 10

CLAMP

€ 2.00

11

1848126D00
ref: 11

HOSE,SECOND AIR NO.2,RIGHT

€ 0.00

12

1848226D00
ref: 12

HOSE,SECOND AIR NO.2,LEFT

€ 0.00

13

0940121401
ref: 13

CLIP

€ 3.00

14

1845048B00
ref: 14

VALVE ASSY,2ND AIR REED

€ 125.50

15

0711005167
ref: 15
07130-05167

BOLT

€ 2.50

16

1847126D00
ref: 16

BRACKET,SECOND AIR REED VALVE

€ 0.00

17

1847226D00
ref: 17

BRACKET,SECOND AIR REED VALVE

€ 0.00

18

0151706164
ref: 18
01550-0616A

BOLT

€ 2.50

19

1844526D00
ref: 19

HOSE,SECOND AIR NO.1,RIGHT,INLET

€ 0.00

20

1844726D00
ref: 20

HOSE,SECOND AIR NO.1,OUTLET

€ 0.00

21

1844626D00
ref: 21

HOSE,SECOND AIR NO.1,LEFT,INLET

€ 0.00

22

0940113408
ref: 22
09401-13417

CLIP

€ 2.50

23

1843026D00
ref: 23

PIPE,2ND AIR,L

€ 0.00

24

1844117C10
ref: 24
18441-17C11

GASKET,SECOND AIR PIPE (NAS)

€ 7.00

25

0142106125
ref: 25
01421-0612A

STUD BOLT

€ 2.00

26

0831616064
ref: 26
08316-1006B

NUT 6MM

€ 2.50

27

1873148B00
ref: 27

HOSE,SECOND AIR CLEANER

€ 0.00
