CAM SHAFT - VALVE

GSX1150EF 1985 (F) (E06)

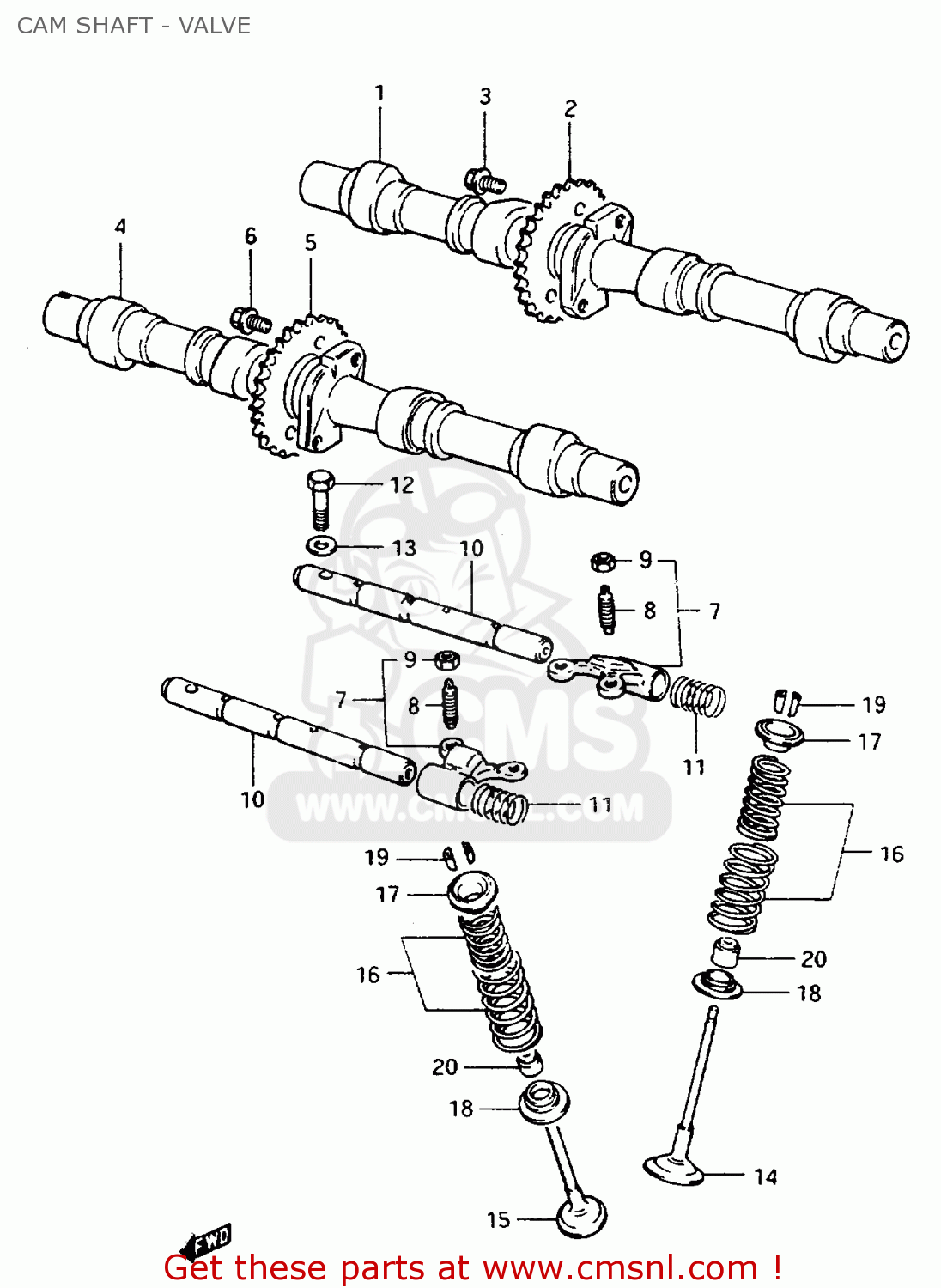

Cam shaft - valve diagram GSX1150EF 1985 (F) (E06)

CAM SHAFT - VALVE GSX1150EF 1985 (F) (E06)

CAM SHAFT - VALVE GSX1150EF 1985 (F) (E06)

prices are in EUR

ref

part #

description

quantity

1-1

1271100A00
ref: 1-1

CAMSHAFT,INTAKE

€ 288.00

1-2

1271100A10
ref: 1-2
E18,E22,MODEL E E17,

CAM SHAFT, INTAKE

€ 302.50

2

1274149011
ref: 2

SPROCKET,INTAKE CAMSHAFT

€ 83.50

3

0910307001
ref: 3

BOLT(7X11)

€ 2.00

4-1

1272100A02
ref: 4-1

CAMSHAFT,EXHAUST

€ 175.50

4-2

1272100A10
ref: 4-2
E18,E22,MODEL E E17,

CAM SHAFT, EXHAUST

€ 0.00

5

1274149011
ref: 5

SPROCKET,INTAKE CAMSHAFT

€ 83.50

6

0910307001
ref: 6

BOLT(7X11)

€ 2.00

7

1284049200
ref: 7

ARM,VALVE ROCKER

€ 77.00

8

1284249210
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.50

9

1284349210
ref: 9

NUT,ADJUSTING

€ 3.00

10

1286031300
ref: 10

SHAFT,VALVE ROCKER

€ 33.50

11

0944013014
ref: 11

SPRING

€ 2.50

12

0110706306
ref: 12

BOLT

€ 2.50

13

0832221066
ref: 13

WASHER, LOWER

€ 2.00

14

1291100A00
ref: 14

VALVE,INTAKE

€ 21.50

15

1291249220
ref: 15

VALVE,EXHAUST

€ 48.00

16

1292049210
ref: 16

SPRING SET,VALVE

€ 16.00

17

1293149200
ref: 17

RETAINER,VALVE SPRING

€ 5.50

18

1293349200
ref: 18

SEAT,VALVE SPRING

€ 4.50

19

1293249200
ref: 19

COTTER VALVE

€ 2.50

20

0928905003
ref: 20

OIL SEAL

€ 6.50
