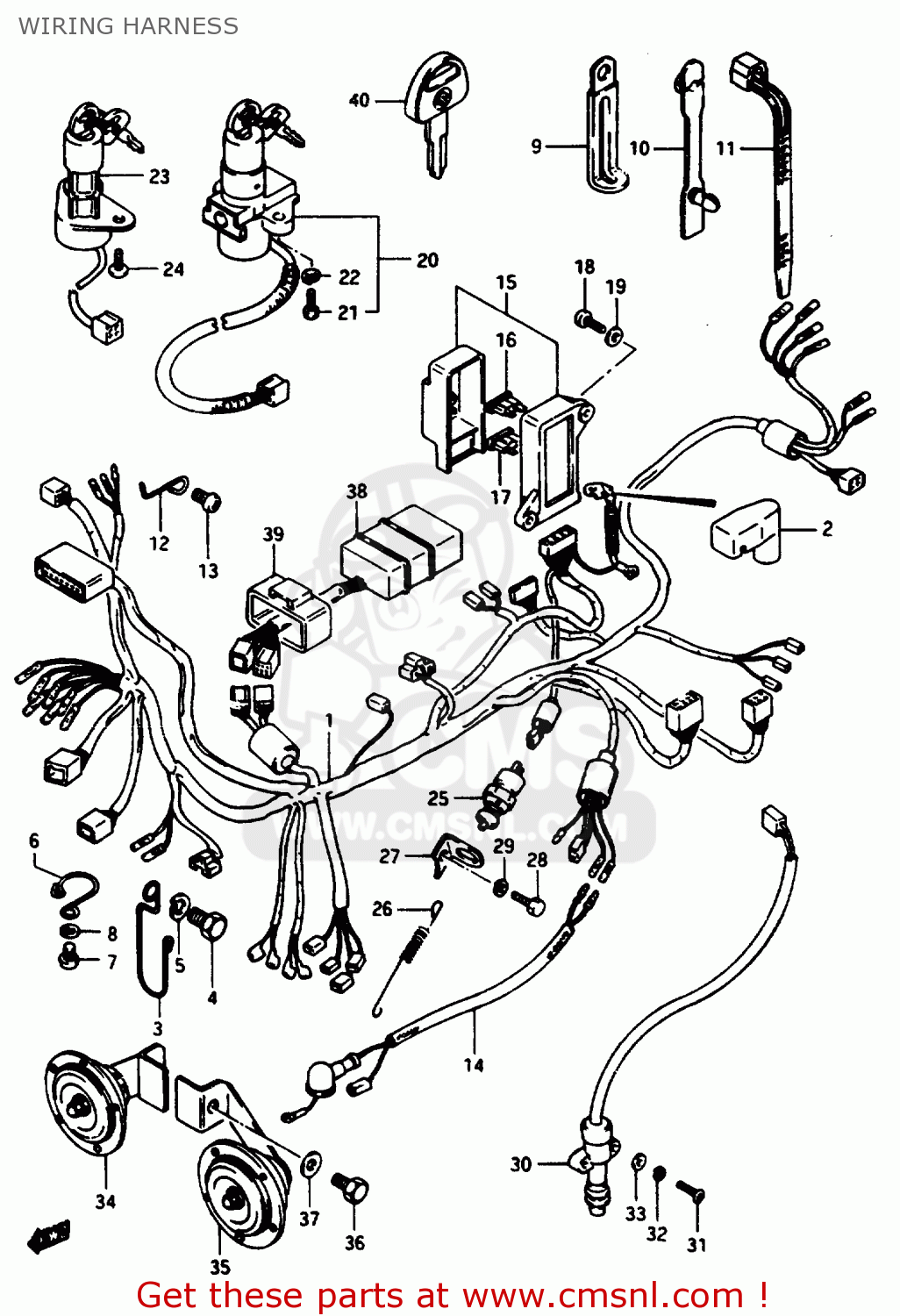

WIRING HARNESS

ref

part #

description

quantity

1-1

3661000A00
ref: 1-1
GSX1100EE/EF

HARNESS,WIRING

€ 0.00

1-2

3661000A50
ref: 1-2
GSX1100ESE/EFFE/ESF/

HARNESS,WIRING

€ 205.50

1-3

3661000A10
ref: 1-3
GSX1100EG E2,GSX1100

WIRING HARNESS

€ 0.00

1-4

3661000A60
ref: 1-4
GSX1100EFG E2 GSX110

WIRING HARNESS

€ 549.50

2

3362438400
ref: 2

CAP,BATTERY PLUS

€ 3.50

3-1

3661849302
ref: 3-1
GSX1100EE/EF/EG

GUIDE,WIRING HARNESS

€ 4.50

3-2

3661849302
ref: 3-2
GSX1100ESE/EFE/ESF/E

GUIDE,WIRING HARNESS

€ 4.50

4

0110708165
ref: 4

BOLT

€ 2.00

5

0832121084
ref: 5

WASHER,LOCK,8.

€ 2.50

6

3661944002
ref: 6
GSX1100EE/EF/EG

CLIP,WIRING HARNESS

€ 2.50

7

0211206128
ref: 7

SCREW 6X12

€ 2.00

8

0832221068
ref: 8

WASHER

€ 2.00

9-1

0940406402
ref: 9-1

CLAMP

€ 2.50

9-2

0940406415
ref: 9-2

CLAMP

€ 3.00

9-3

0940406419
ref: 9-3
GSX1100EE/EF,EG

CLAMP

€ 2.50

10

0940705403
ref: 10

CLAMP,L:88

€ 1.50

11-1

0940711401
ref: 11-1
GSX1100ESE/EFE/ESF/E

CLAMP(L:95)

€ 2.50

11-2

0940714403
ref: 11-2

CLAMP(L:125)

€ 2.50

11-3

0940718402
ref: 11-3

CLAMP(L:165)

€ 2.50

11-4

0940725401
ref: 11-4
GSX1100ESE/EFE/ESF/E

CLAMP(L:235)

€ 4.00

12

3661900A00
ref: 12
GSX1100EE/EF E1

GUIDE,WIRING HARNESS

€ 0.00

13

0211206125
ref: 13

SCREW

€ 1.50

14

3685249510
ref: 14

WIRE,OIL TEMPERATURE GAUGE

€ 0.00

15

3674049401
ref: 15

BOX ASSEMBLY,FUSE

€ 69.50

16

0948110101
ref: 16

FUSE(10A)

€ 2.50

17

0948115101
ref: 17

FUSE(15A)

€ 1.50

18

0211206164
ref: 18

SCREW

€ 2.00

19

0832221064
ref: 19

WASHER

€ 2.00

20-1

3710000A01
ref: 20-1
GSX1100EE/EF/EG

IGNITION SWITCH/STEERING LOCK

€ 122.50

20-2

3710000A62
ref: 20-2
GSX1100ESE/EFE/ESF/E

IGNITION SWITCH/STEERING LOCK

€ 118.50

21

3715247011
ref: 21

BOLT

€ 3.00

22

0832121067
ref: 22

WASHER,LOCK

€ 2.50

23-1

3711011501
ref: 23-1
GSX1100EF/EG E22

SWITCH ASSY,IGNITION

€ 86.00

23-2

3711000A62
ref: 23-2
GSX1100E0/EFE/ESF/EF

SWITCH ASSY, IGNITION

€ 70.00

24

0214206125
ref: 24
E15,E17,E22,E26

SCREW 6X12

€ 2.00

25

3774007900
ref: 25

SWITCH ASSEMBLY,STOP LAMP

€ 20.50

26

0944306016
ref: 26

SPRING

€ 2.50

27

4325100A00
ref: 27

BRACKET,BRAKE LAMP SWITCH

€ 7.00

28

0110706127
ref: 28

BOLT

€ 2.00

29

0832121067
ref: 29

WASHER,LOCK

€ 2.50

30

3784043502
ref: 30

SWITCH ASSY,SIDE STAND WARNING

€ 74.00

31

0211205205
ref: 31

SCREW 5X20

€ 2.50

32

0832121055
ref: 32

WASHER,LOCK

€ 3.00

33

0832221055
ref: 33

WASHER,5MM

€ 2.50

34-1

3850100A10
ref: 34-1

HORN ASSEMBLY,HIGH PITCH

€ 49.50

34-2

3850100A20
ref: 34-2
E4,E18,E34CE39

HORN ASSY, HIGH PITCHED

€ 49.50

35-1

3850200A10
ref: 35-1

HORN ASSEMBLY,LOW PITCH

€ 49.50

35-2

3850200A20
ref: 35-2
E4,E18,E34E,39

HORN ASSY, LOW PITCHED

€ 49.50

36

0110708165
ref: 36

BOLT

€ 2.00

37

0832211084
ref: 37

WASHER

€ 1.50

38

3886049500
ref: 38

RELAY,LAMP OUTAGE WARNING

€ 115.00

39

3886100A00
ref: 39

STAY,LAMP OUTAGE WARNING

€ 8.00

40

3714647010
ref: 40
OPT

KEY,BLANK

€ 15.00
