FRONT DAMPER
GSX1150EF 1985 (F) (E06)

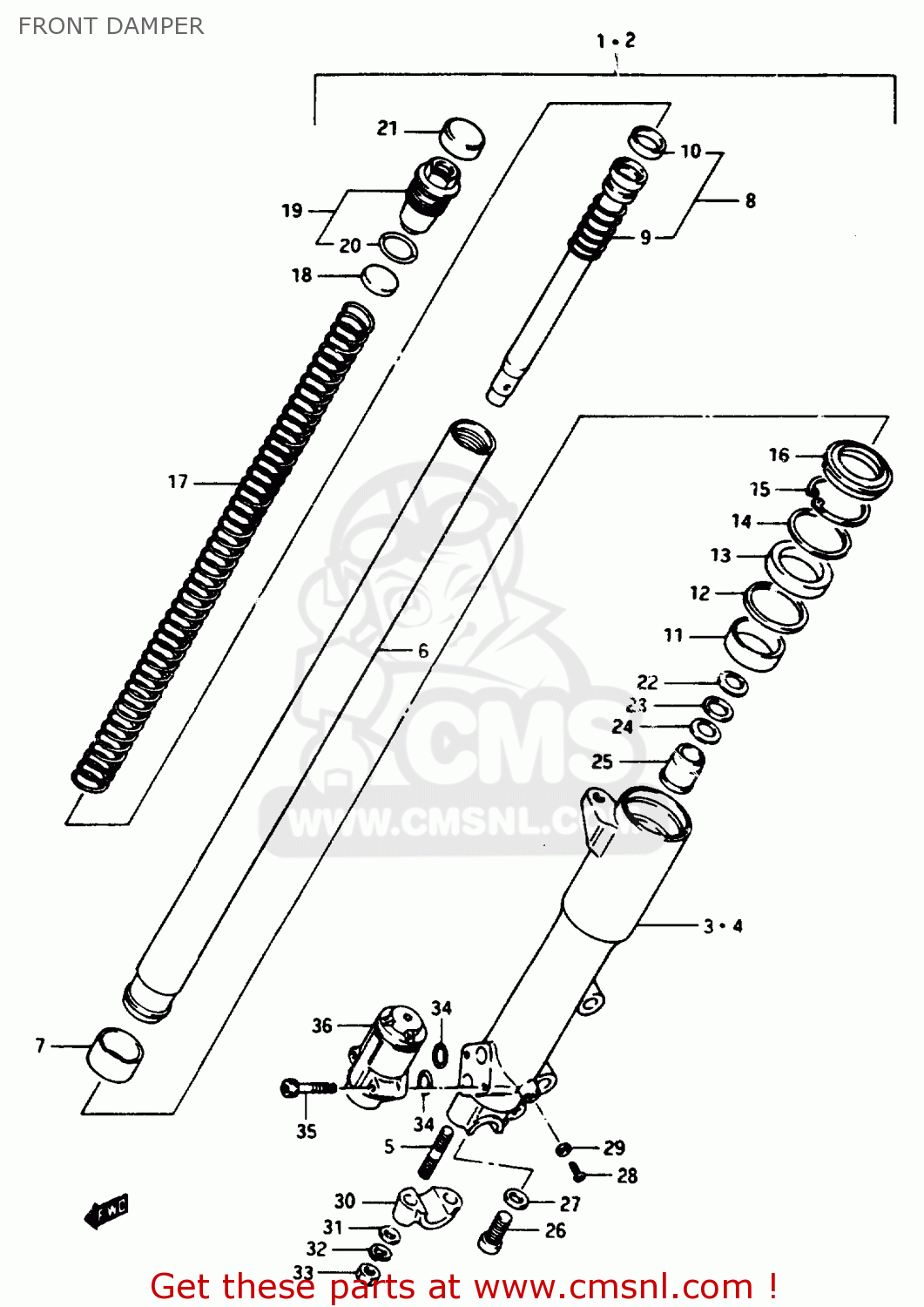

Front damper diagram GSX1150EF 1985 (F) (E06)
FRONT DAMPER GSX1150EF 1985 (F) (E06)
×
prices are in EUR
ref
part #
description
quantity
1-1
5110300A00
ref: 1-1
GSX1100EE/EF/EG
DAMPER ASSY, RH
€ 720.50
1-2
5110300A30
ref: 1-2
ESX1100ESE/EFE/ESF/E
DAMPER ASSY, RH
€ 720.50
2-1
5110400A00
ref: 2-1
GSX1100EE/EF/EG
DAMPER ASSY, LH
€ 0.00
2-2
5110400A30
ref: 2-2
GSX1100ESE/EFE/ESF/E
DAMPER ASSY, LH
€ 0.00
3
5113000A0015T
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 327.00
4
5114000A0015T
ref: 4
TUBE,FORK,LEFT,OUTER
€ 276.00
5
0141108308
ref: 5
STUD 8X30
€ 2.00
6-1
5111000A00
ref: 6-1
GSX1100EE/EF/EG
TUBE, INNER
€ 258.00
6-2
5111000A30
ref: 6-2
GSX1100ESE/EFE/ESF/E
TUBE, INNER
€ 300.50
7
5112149510
ref: 7
METAL,FR FORK PISTON
€ 17.50
8
5114600A00
ref: 8
CYLINDER,FRONT FORK
€ 126.00
9
5117749200
ref: 9
SPRING,FORK REBOUND
€ 7.00
10
5119600A00
ref: 10
RING,FR FORK PISTON
€ 7.50
11
5116749510
ref: 11
METAL,SLIDE
€ 10.50
12
5115849500
ref: 12
WASHER
€ 4.00
13
5115300A00
ref: 13
SEAL,OIL
€ 16.50
14
5115800A00
ref: 14
WASHER,FORK OIL SEAL
€ 6.50
15
5115640301
ref: 15
RING,STOPPER
€ 4.50
16
5117300A00
ref: 16
SEAL,DUST
€ 16.50
17-1
5117100A00
ref: 17-1
GSX1100EE/EF/EG
SPRING
€ 65.00
17-2
5117100A30
ref: 17-2
GSX1100ESE/EFE/ESF/E
SPRING
€ 65.00
18
5117249540
ref: 18
WASHER
€ 3.50
19
5135149540
ref: 19
CAP
€ 47.00
20
5111738260
ref: 20
O RING
€ 2.50
21
5118900A00
ref: 21
CAP,FORK INNER TUBE
€ 8.50
22
5112545420
ref: 22
SPRING,LEAF
€ 3.50
23
5112345420
ref: 23
WASHER
€ 3.50
24
5112545420
ref: 24
SPRING,LEAF
€ 3.50
25
5119545420
ref: 25
PIECE,OIL LOCK
€ 15.50
26
5114716510
ref: 26
BOLT,FORK CYLINDER(10X25)
€ 3.50
27
5114841310
ref: 27
GASKET (NAS)
€ 2.50
28
0211204085
ref: 28
SCREW
€ 2.00
29
5118303010
ref: 29
GASKET,DRAIN,PLUG (NAS)
€ 3.00
30
511324950015T
ref: 30
HOLDER,AXLE
€ 24.50
31
0832211084
ref: 31
WASHER
€ 1.50
32
0832121084
ref: 32
WASHER,LOCK,8.
€ 2.50
33
0831011085
ref: 33
NUT
€ 1.50
34
5179900A00
ref: 34
O RING
€ 5.50
35
0711006408
ref: 35
BOLT
€ 2.50
36
5177000A00
ref: 36
P.D.F ASSY
€ 177.00
