FUEL TANK (GSX1100ESE/ESF/ESG)
GSX1150EF 1985 (F) (E06)

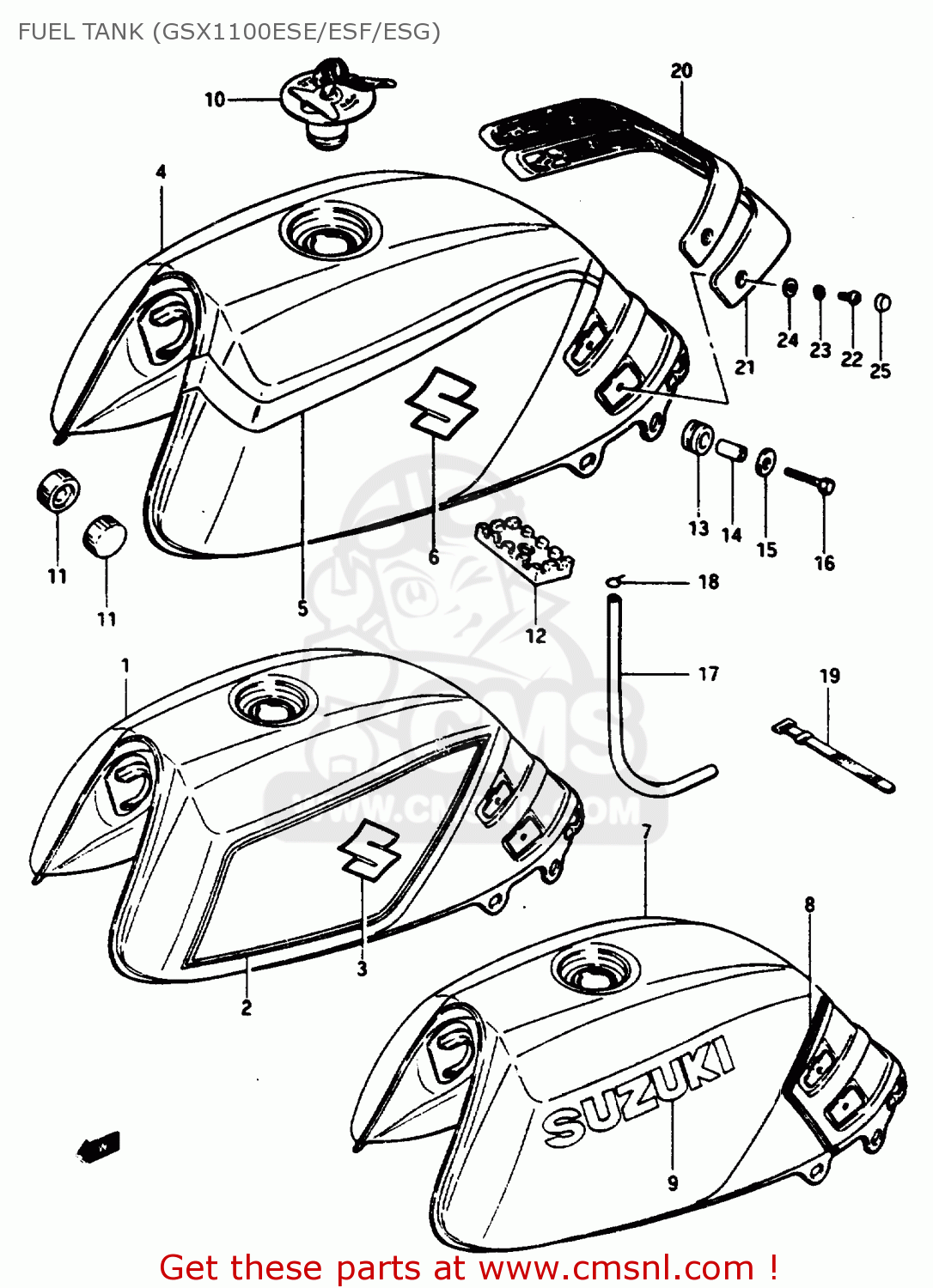

Fuel tank (gsx1100ese/esf/esg) diagram GSX1150EF 1985 (F) (E06)
FUEL TANK (GSX1100ESE/ESF/ESG) GSX1150EF 1985 (F) (E06)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410000A2087P
ref: 1-1
MODEL E
TANK ASSY, FUEL
€ 441.00
1-2
4410000A207DP
ref: 1-2
MODEL E
TANK ASSY, FUEL
€ 441.00
2-1
6811000A007EE
ref: 2-1
MODEL E, FOR 87P
TAPE SET, FUEL TANK
€ 64.50
2-2
6811000A007EF
ref: 2-2
MODEL E, FOR 7DP
TAPE SET, FUEL TANK
€ 87.00
3-1
681664341060D
ref: 3-1
MODEL E, FOR 87P
EMBLEM,SEAT TAIL (S)
€ 4.50
3-2
681664341071L
ref: 3-2
MODEL E, FOR 7DP
EMBLEM
€ 3.50
4-1
4410000A907JH
ref: 4-1
MODEL F
TANK ASSY, FUEL
€ 441.00
4-2
4910000A107JH
ref: 4-2
MODLE F E22
TANK ASSY, FUEL
€ 592.50
4-3
4410000A907JJ
ref: 4-3
MODEL F
TANK ASSY, FUEL
€ 441.00
4-4
4910000A107JJ
ref: 4-4
MODEL F E22
MODEL F
€ 592.50
5
6811000A50019
ref: 5
MODEL F
TAPE SET,FUEL TANK
€ 27.00
6
681114341069L
ref: 6
MODEL F
EMBLEM
€ 6.00
7-1
4410010A307JJ
ref: 7-1
MODEL G
TANK ASSY, FUEL
€ 441.00
7-2
4410010A407JJ
ref: 7-2
MODEL G E22
TANK ASSY, FUEL
€ 592.50
7-3
4410010A307JK
ref: 7-3
MODEL G E22
TANK ASSY, FUEL
€ 441.00
7-4
4410010A407JK
ref: 7-4
MODEL G E22
TANK ASSY, FUEL
€ 592.50
8-1
6811000A708BV
ref: 8-1
MODEL G, FOR 7JJ
TAPE SET,FUEL TANK
€ 0.00
8-2
6811000A707JL
ref: 8-2
MODEL G, FOR 7JK
TAPE SET,FUEL TANK
€ 0.00
9
681113320007G
ref: 9
MODEL G
EMBLEM
€ 14.00
10
4420043410KEY
ref: 10
CAP ASSY,FUEL TANK
€ 125.50
11
0932910016
ref: 11
CUSHION
€ 3.00
12
4454134500
ref: 12
CUSHION,FUEL TANK CTR
€ 13.00
13
0932009017
ref: 13
CUSHION
€ 3.00
14
0918006107
ref: 14
SPACER (6.4X9X20)
€ 3.00
15
0916006030
ref: 15
WASHER (6.5X29X1.6)
€ 2.50
16
0110706307
ref: 16
BOLT 6X30
€ 2.50
17
0934305165
ref: 17
HOSE,FUEL
€ 13.00
18
0940108402
ref: 18
CLIP
€ 1.50
19
0940718401
ref: 19
CLAMP(L:187)
€ 2.00
20
4425100A0057S
ref: 20
KNEE GRIP,FUEL TANK,UPPER
€ 39.00
21
4425200A0057S
ref: 21
GRIP,FUEL TANK KNEE LWR
€ 62.50
22
0211205088
ref: 22
SCREW
€ 2.00
23
0832121057
ref: 23
LOCK WASHER
€ 2.00
24
0832221057
ref: 24
WASHER
€ 2.50
25
4425300A0057S
ref: 25
CAP,KNEE GRIP
€ 4.00
