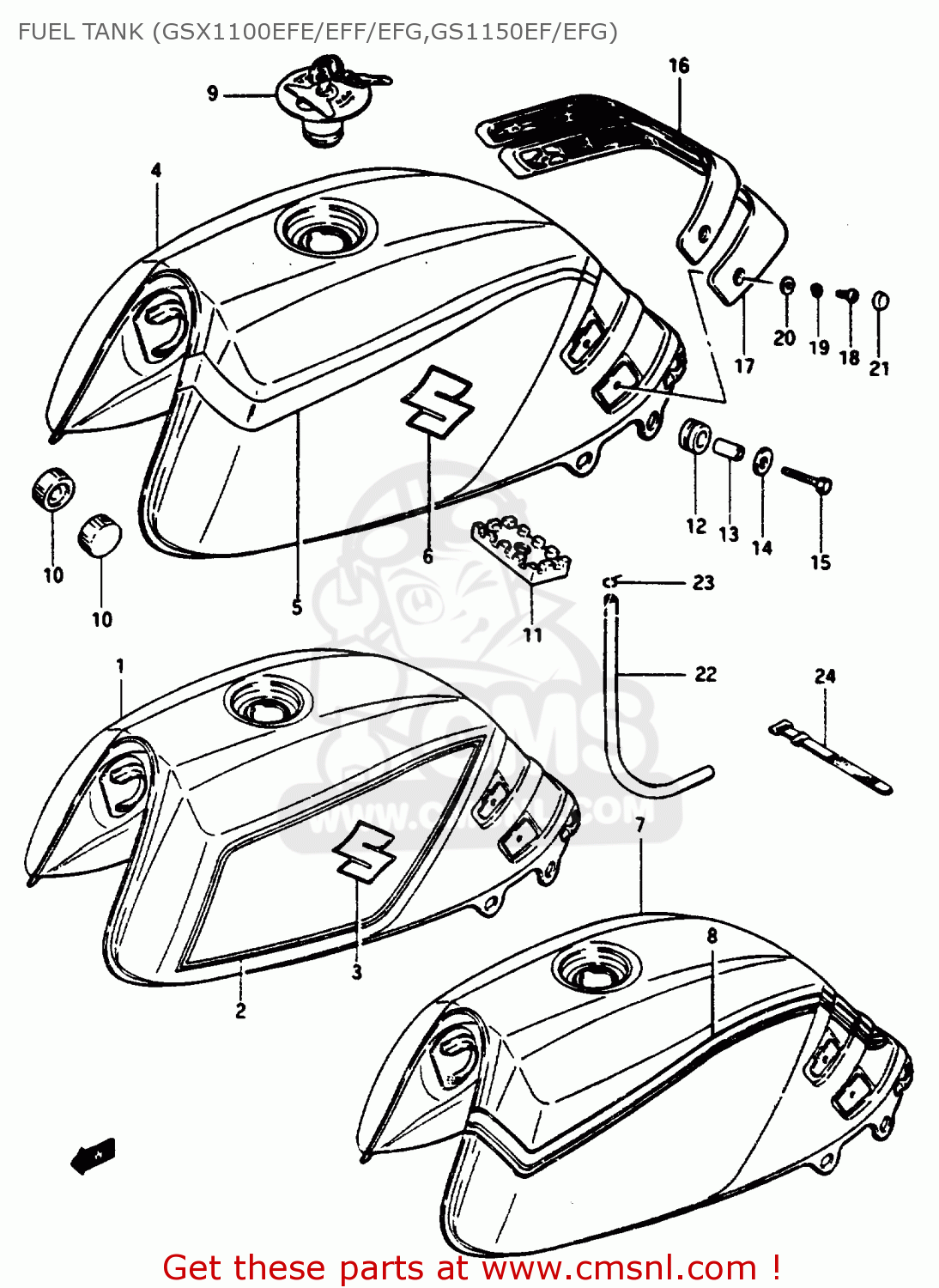

FUEL TANK (GSX1100EFE/EFF/EFG,GS1150EF/EFG)

ref

part #

description

quantity

1-1

4410000A2087P
ref: 1-1
MODEL E

TANK ASSY, FUEL

€ 441.00

1-2

4410000A3087P
ref: 1-2
MODEL E E22

TANK ASSY, FUEL

€ 592.50

1-3

4410000A207DP
ref: 1-3
MODEL E

TANK ASSY, FUEL

€ 441.00

1-4

4410000A307DP
ref: 1-4
MODEL E E22

TANK ASSY, FUEL

€ 592.50

1-5

4410000A207DT
ref: 1-5
MODEL E

TANK ASSY, FUEL

€ 441.00

1-6

4410000A307DT
ref: 1-6
MODEL E E22

TANK ASSY, FUEL

€ 592.50

2-1

6811000A007EE
ref: 2-1
MODEL E, FOR 87P

TAPE SET, FUEL TANK

€ 64.50

2-2

6811000A007EF
ref: 2-2
MODEL E, FOR 7DP

TAPE SET, FUEL TANK

€ 87.00

2-3

6811000A007EG
ref: 2-3
MODEL E, FOR 7DT

TAPE SET, FUEL TANK

€ 84.00

3-1

681664341060D
ref: 3-1
MODEL E, FOR 87P

EMBLEM,SEAT TAIL (S)

€ 4.50

3-2

681664341071L
ref: 3-2
MODEL E, FOR 7DP

EMBLEM

€ 3.50

3-3

681664341066P
ref: 3-3
MODEL E, FOR 7DT

EMBLEM

€ 0.00

4-1

4410000A907JH
ref: 4-1
MODEL F

TANK ASSY, FUEL

€ 441.00

4-2

4910000A107JH
ref: 4-2
MODEL F E22

TANK ASSY, FUEL

€ 592.50

4-3

4410000A907JJ
ref: 4-3

TANK ASSY, FUEL

€ 441.00

4-4

4910000A107JJ
ref: 4-4
MODEL F E22

MODEL F

€ 592.50

5

6811000A50019
ref: 5
MODEL F

TAPE SET,FUEL TANK

€ 27.00

6

681114341069L
ref: 6
MODEL F

EMBLEM

€ 6.00

7-1

4410010A107JJ
ref: 7-1
MODEL G

TANK ASSY, FUEL

€ 787.50

7-2

4410010A207JJ
ref: 7-2
MODEL G E22

TANK ASSY, FUEL

€ 787.50

7-3

4410010A107JK
ref: 7-3
MODEL G

TANK ASSY, FUEL

€ 592.50

7-4

4410010A207JK
ref: 7-4
MODEL G E22

TANK ASSY, FUEL

€ 592.50

8-1

6811000A608BV
ref: 8-1
MODEL G, FOR 7JJ

TAPE SET, FUEL TANK

€ 0.00

8-2

6811000A607JL
ref: 8-2
MODEL G, FOR 7JK

TAPE SET, FUEL TANK

€ 0.00

9

4420043410KEY
ref: 9

CAP ASSY,FUEL TANK

€ 125.50

10

0932910016
ref: 10

CUSHION

€ 3.00

11

4454134500
ref: 11

CUSHION,FUEL TANK CTR

€ 13.00

12

0932009017
ref: 12

CUSHION

€ 3.00

13

0918006107
ref: 13

SPACER (6.4X9X20)

€ 3.00

14

0916006030
ref: 14

WASHER (6.5X29X1.6)

€ 2.50

15

0110706307
ref: 15

BOLT 6X30

€ 2.50

16

4425100A0057S
ref: 16

KNEE GRIP,FUEL TANK,UPPER

€ 39.00

17

4425200A0057S
ref: 17

GRIP,FUEL TANK KNEE LWR

€ 62.50

18

0211205088
ref: 18

SCREW

€ 2.00

19

0832121057
ref: 19

LOCK WASHER

€ 2.00

20

0832221057
ref: 20

WASHER

€ 2.50

21

4425300A0057S
ref: 21

CAP,KNEE GRIP

€ 4.00

22

0934305165
ref: 22

HOSE,FUEL

€ 13.00

23

0940108402
ref: 23

CLIP

€ 1.50

24

0940718401
ref: 24

CLAMP(L:187)

€ 2.00

FUEL TANK (GSX1100EFE/EFF/EFG,GS1150EF/EFG)

all assemblies
