MUFFLER
GSX1150EF 1985 (F) (E06)

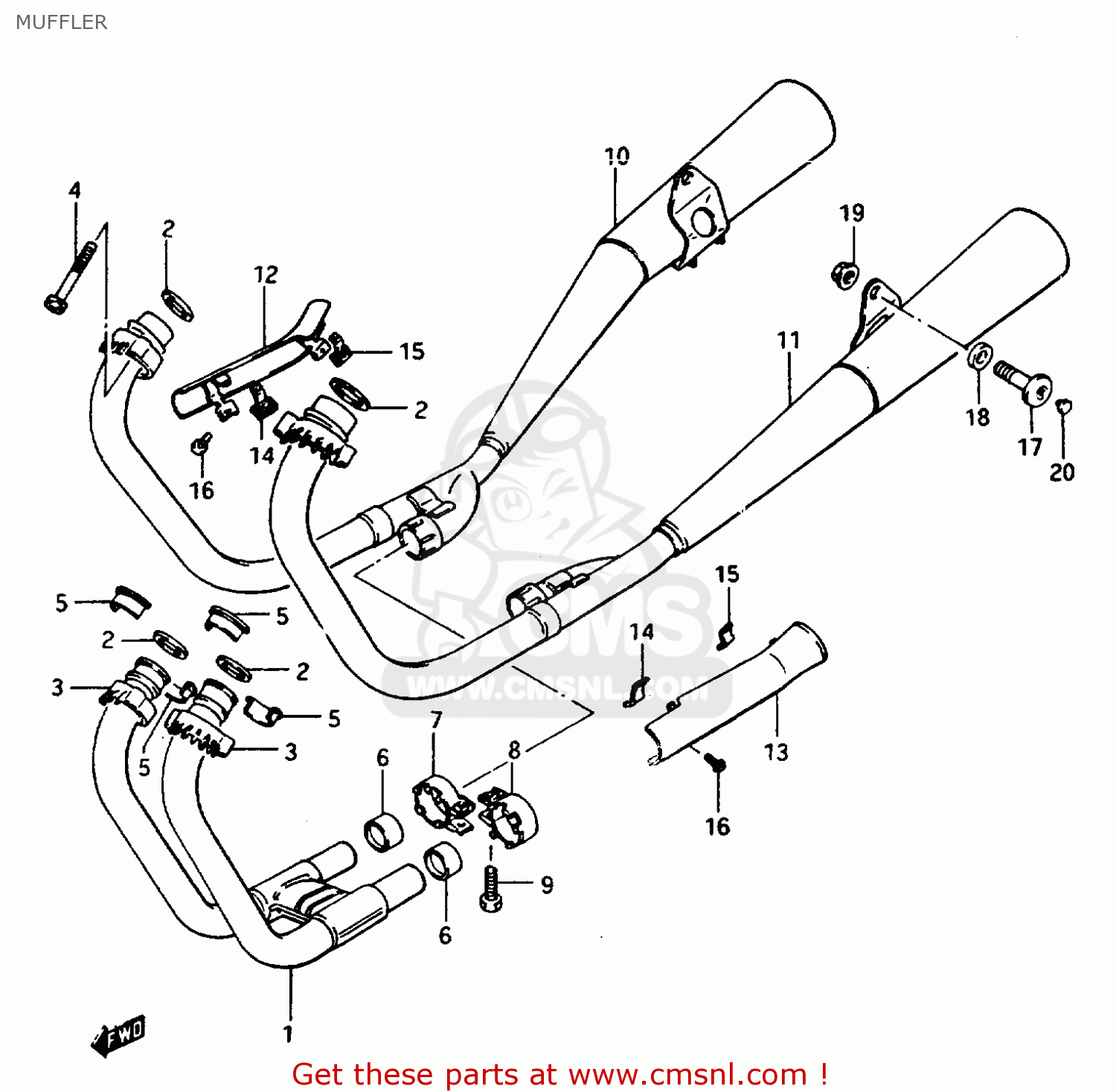

Muffler diagram GSX1150EF 1985 (F) (E06)
MUFFLER GSX1150EF 1985 (F) (E06)
×
prices are in EUR
ref
part #
description
quantity
1
1410000A01H01
ref: 1
PIPE,EXHAUST,CENTER
€ 218.50
2
1418111020
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 8.00
3
1418249011
ref: 3
CLAMP(H:21)
€ 49.00
4
0910608052
ref: 4
BOLT
€ 3.50
5
1415549000A
ref: 5
PLATE,EXHAUST P
€ 9.50
6
1477100A01
ref: 6
CONNECTOR,MUFFLER
€ 29.00
7
1445931300
ref: 7
CLAMP,MUFFLER CONNECTOR
€ 17.00
8
1446931300
ref: 8
CLAMP,MUFFLER CONNECTOR
€ 22.00
9
0151708254
ref: 9
BOLT
€ 2.50
10-1
1430100A03
ref: 10-1
MUFFLER, RH
€ 324.50
10-2
1430100A23
ref: 10-2
E2,E4,E1K,E16,E17,E1
MUFFLER, RH
€ 324.50
11-1
1430200A03
ref: 11-1
MUFFLER, LH
€ 381.50
11-2
1430200A23
ref: 11-2
E2,E4,E15,E16,E17,E1
MUFFLER, LH
€ 381.50
12
1478000A01
ref: 12
COVER,MUFFLER,RIGHT
€ 37.50
13
1479000A01
ref: 13
COVER,MUFFLER,LEFT
€ 35.50
14
1478500A00
ref: 14
CLAMP,MUFFLER COVER
€ 4.00
15
1478500A10
ref: 15
CLAMP,MUFFLER COVER
€ 5.50
16
0211205165
ref: 16
SCREW
€ 2.00
17
0910610015
ref: 17
BOLT
€ 4.50
18
0916010005
ref: 18
WASHER(10.5X20X3.2)
€ 2.00
19
0831616105
ref: 19
NUT
€ 2.00
20
4357534500
ref: 20
CAP
€ 1.50
