FRONT BRAKE HOSE
GSX1300R HAYABUSA 1999 (X) USA (E03)

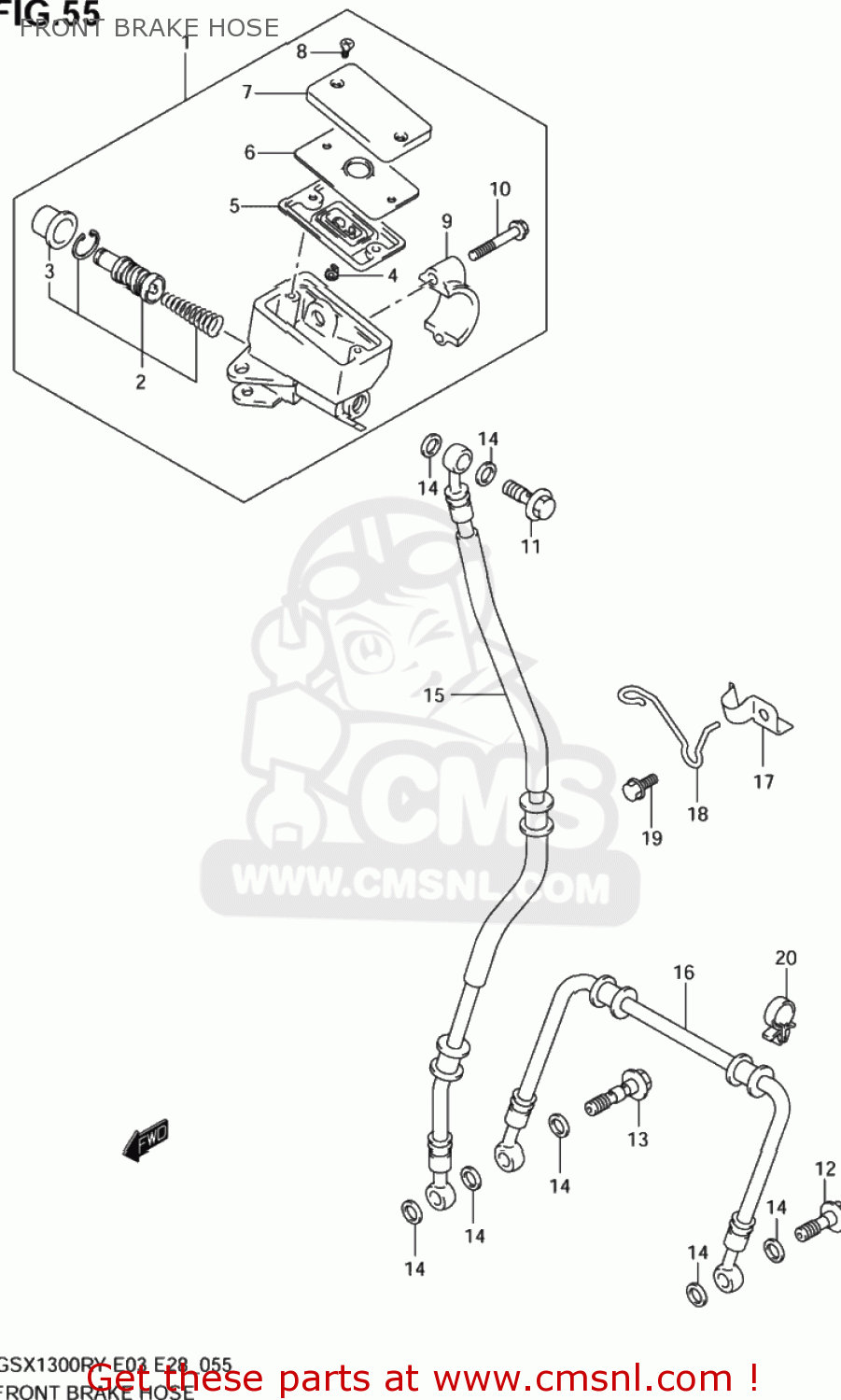

Front brake hose diagram GSX1300R HAYABUSA 1999 (X) USA (E03)
FRONT BRAKE HOSE GSX1300R HAYABUSA 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960024F00
ref: 1
CYLINDER ASSY,FR MASTER
€ 271.00
2
5960045860
ref: 2
PISTON & CUP SET
€ 44.00
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966448B00
ref: 4
PROTECTOR
€ 8.00
5
5966749460
ref: 5
5966749460
6
5966841C00
ref: 6
PLATE,DIAPHRAGM
€ 8.00
7
5966941C00
ref: 7
CAP
€ 30.00
8
6968949300
ref: 8
SCREW
€ 1.50
9
5967136500
ref: 9
HOLDER
€ 10.00
10
5967502FA0
ref: 10
BOLT(6X22)
€ 3.00
11
0936010042
ref: 11
09360-10062
BOLT UNION
€ 5.00
12
0936010042
ref: 12
09360-10062
BOLT UNION
€ 5.00
13
0936010044
ref: 13
09360-10064
BOLT UNION
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
€ 2.00
15-1
5948024F00
ref: 15-1
59480-24F02
HOSE COMP,FRONT BRAKE
€ 99.50
15-2
5948024F01
ref: 15-2
59480-24F02
HOSE,FRONT BRAKE NO.1
€ 99.50
16-1
5924024F00
ref: 16-1
59240-24F02
HOSE COMP,FRONT BRAKE
€ 108.50
16-2
5924024F01
ref: 16-2
59240-24F02
HOSE,FRONT BRAKE NO.2
€ 108.50
17
5926638D00
ref: 17
CLAMP,FR BRAKE HOSE UPR
€ 13.00
18
5926833E01
ref: 18
GUIDE,FR BRAKE HOSE NO.1
€ 12.00
19
0155006163
ref: 19
01550-0616A
BOLT
€ 2.50
20
0940314304
ref: 20
CLAMP
€ 3.00
