RADIATOR HOSE
GSX1300R HAYABUSA 1999 (X) USA (E03)

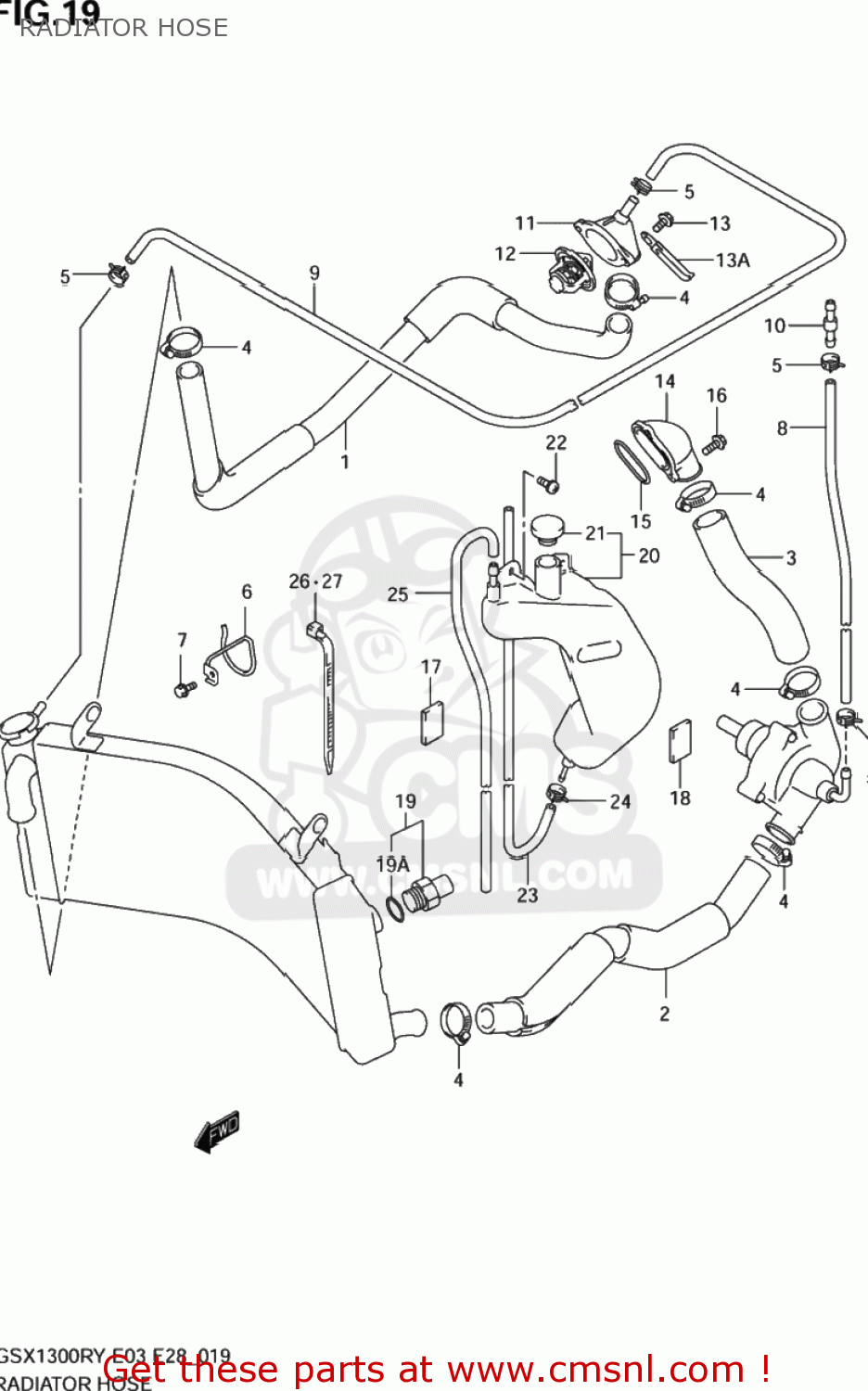

Radiator hose diagram GSX1300R HAYABUSA 1999 (X) USA (E03)
RADIATOR HOSE GSX1300R HAYABUSA 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1785124F00
ref: 1-1
17851-24F01
HOSE,RADIATOR INLET
€ 70.00
1-2
1785124F01
ref: 1-2
HOSE,RADIATOR INLET
€ 70.00
2
1785224F00
ref: 2
HOSE,RADIATOR OUTLET
€ 55.00
3
1785324F00
ref: 3
HOSE,CYLINDERL INLET
€ 17.50
4
0940238511
ref: 4
CLAMP
€ 10.50
5
0940112409
ref: 5
CLAMP
€ 3.00
6
1785924F00
ref: 6
CLAMP,RADIATOR INLET HOSE
€ 9.50
7
0155006103
ref: 7
01550-0610A
BOLT
€ 2.50
8
1785424F00
ref: 8
HOSE,WATER BYPASS NO.1
€ 15.00
9
1785524F00
ref: 9
HOSE,WATER BYPASS NO.2
€ 41.50
10
0936209011
ref: 10
BOLT UNION
€ 6.00
11
1766124F00
ref: 11
COVER,THERMOSTAT
€ 41.50
12
1767050F00
ref: 12
THERMOSTAT,WATER 82 DEG
€ 24.00
13
0154706203
ref: 13
01547-0620B
SCREW
€ 2.50
13A
0940406431
ref: 13A
09404-06432
CLAMP(L:65)
€ 2.50
14-1
1786133E00
ref: 14-1
17861-33E20
CONNECTOR,CYLINDER WATER,INTAKE
€ 19.00
14-2
1786133E10
ref: 14-2
17861-33E20
CONNECTOR,CYL.
€ 19.00
15
1786333E00
ref: 15
O RING,CYL WATER CONNECTOR
€ 4.50
16
0155006203
ref: 16
01550-0620A
BOLT
€ 2.50
17
5182712E00
ref: 17
51827-01A00
CUSHION,HEADLAMP COVER
€ 2.50
18
5314548B00
ref: 18
CUSHION,FR FENDER
€ 1.50
19
1768033E00
ref: 19
SWITCH,RADIATOR FAN
€ 49.50
19A
1768950F00
ref: 19A
O-RING
€ 2.50
20
1791024F00
ref: 20
TANK ASSY,RESERVOIR
€ 82.50
21
1793212C00
ref: 21
CAP,RESERVOIR TANK
€ 3.50
22
0913606022
ref: 22
SCREW(6X20)
€ 2.50
23
1798121810
ref: 23
HOSE,RESERVOIR TANK
€ 19.50
24
0940108411
ref: 24
CLIP
€ 3.00
25
1798238810
ref: 25
HOSE,RESERVOIR TANK OUTLET
€ 16.00
26
0940718402
ref: 26
CLAMP(L:165)
€ 2.50
27
0940718402
ref: 27
CLAMP(L:165)
€ 2.50
