HEADLAMP
GSX1300R HAYABUSA 1999 (X) USA (E03)

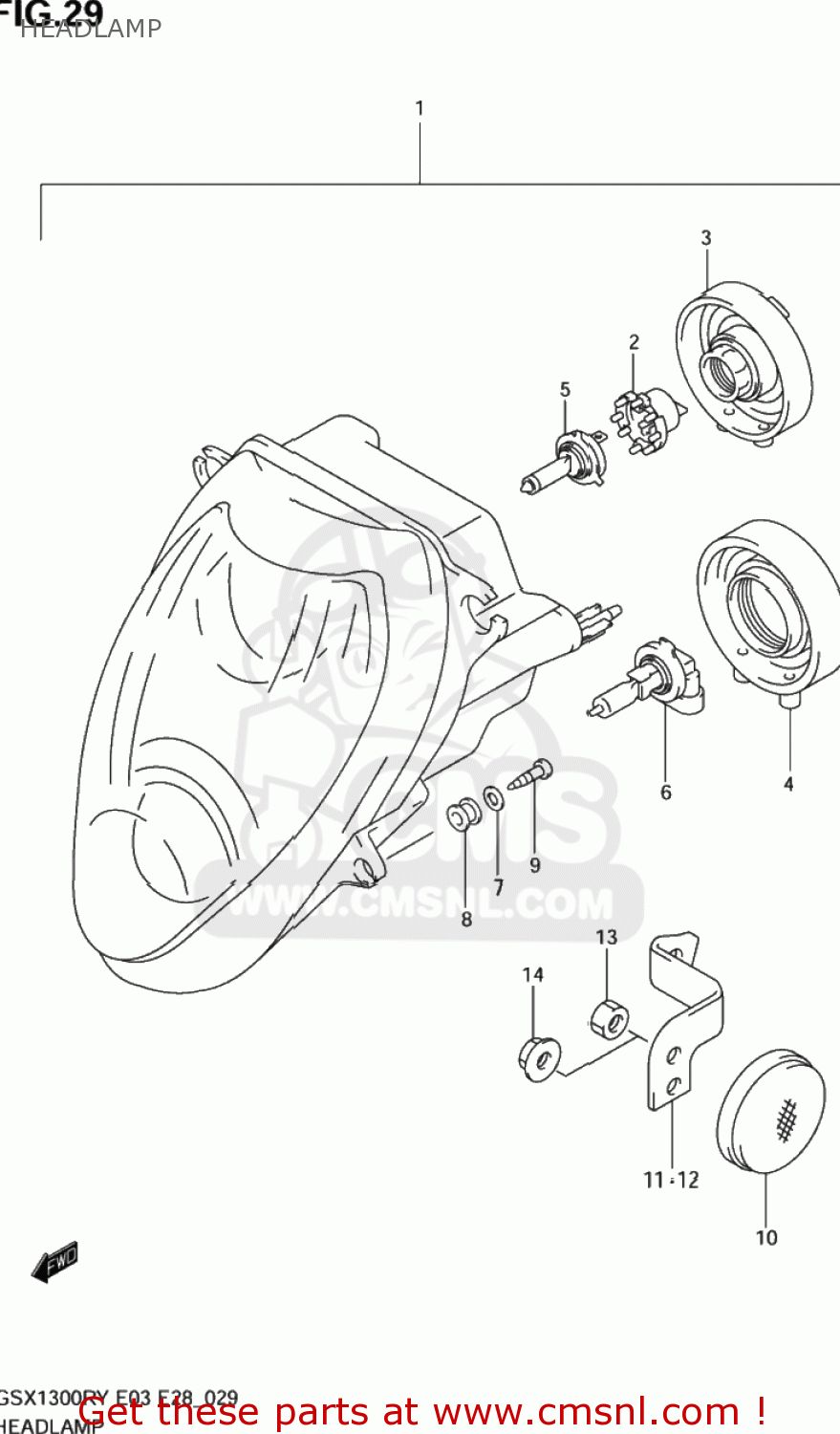

Headlamp diagram GSX1300R HAYABUSA 1999 (X) USA (E03)
HEADLAMP GSX1300R HAYABUSA 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510024F01999
ref: 1
HEADLAMP ASSY
€ 531.50
2
3517524F00
ref: 2
ADAPTER ASSY
€ 16.00
3
3512524F10
ref: 3
SOCKET,COVER
€ 20.00
4
3512524F00
ref: 4
SOCKET,COVER
€ 22.50
5
0947112188
ref: 5
BULB(12V55W/H7/PX26D/PHILIPS)
€ 12.50
5
0947112188
ref: 5
BULB(12V55W/H7/PX26D/PHILIPS)
€ 12.50
6
0947112151
ref: 6
BULB(12V60W,HB3,#9005)
€ 56.50
7
0916005045
ref: 7
WASHER(5.5X18X1)
€ 2.00
8
0932009039
ref: 8
CUSHION
€ 6.00
9
0351205163
ref: 9
03511-0516A
SCREW
€ 2.50
10-1
3595014A00
ref: 10-1
REFLECTOR,REFLEX FR
€ 15.00
10-2
3595014A10
ref: 10-2
35950-14A11
REFLECTOR,REFLEX
€ 11.00
11
3595602F00
ref: 11
BRACKET,FR SIDE RR,R
€ 6.50
12
3595702F00
ref: 12
BRACKET,FR SIDE RR,L
€ 6.50
13
0831000053
ref: 13
08310-0005A
NUT
€ 2.50
14
0831610053
ref: 14
08316-1005A
NUT
€ 2.50
