REAR CUSHION LEVER
GSX1300R HAYABUSA 1999 (X) USA (E03)

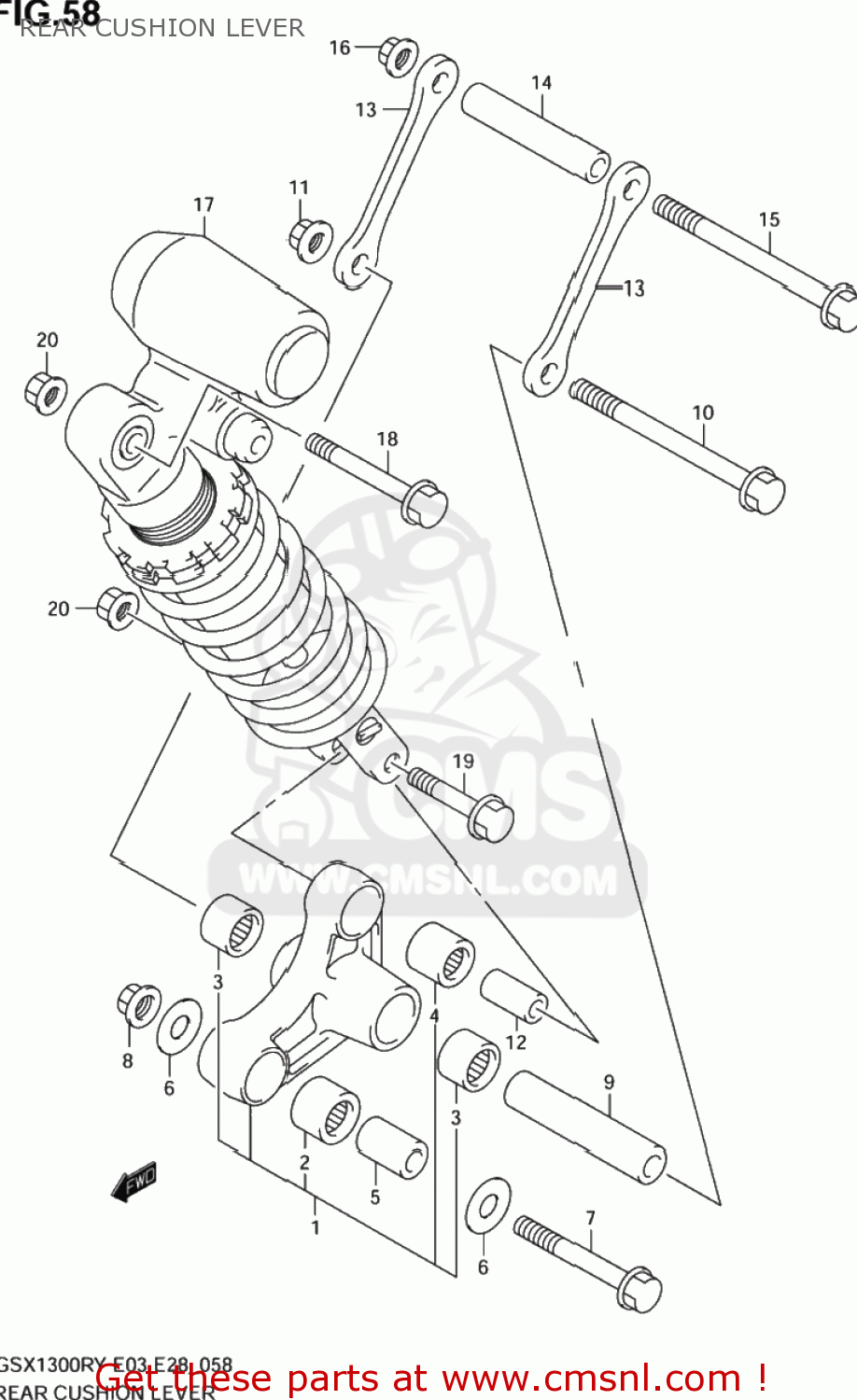

Rear cushion lever diagram GSX1300R HAYABUSA 1999 (X) USA (E03)
REAR CUSHION LEVER GSX1300R HAYABUSA 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260024810
ref: 1
LEVER SET,RR CUSHION
€ 285.00
2
0926320073
ref: 2
BEARING(20X27X30)
€ 24.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
€ 21.50
4
0926317034
ref: 4
BEARING(17X24X26)
€ 21.50
5
6268412C00
ref: 5
SPACER,RR CUSHION LEVER FR
€ 12.50
6
0821112301
ref: 6
WASHER
€ 2.00
7
6265819F00
ref: 7
BOLT,RR CUSHION LEVER FR
€ 8.00
8
0831931128
ref: 8
08319-3112A
NUT 12MM
€ 4.00
9
6262624F00
ref: 9
SPACER,RR CUSHION LEVER CTR
€ 31.00
10
6262133D00
ref: 10
BOLT,RR CUSHION LEVER CTR
€ 10.00
11
0831931128
ref: 11
08319-3112A
NUT 12MM
€ 4.00
12
6268440A10
ref: 12
SPACER,RR CUSHION LEVER
€ 11.50
13
6264124F00
ref: 13
ROD,RR CUSHION
€ 36.50
14
6262624F00
ref: 14
SPACER,RR CUSHION LEVER CTR
€ 31.00
15
6262133D00
ref: 15
BOLT,RR CUSHION LEVER CTR
€ 10.00
16
0831931128
ref: 16
08319-3112A
NUT 12MM
€ 4.00
17-1
6210024F00
ref: 17-1
62100-24F01
ABSORBER ASSEMBLY,REAR SHOCK
€ 1,174.00
17-2
6210024F20
ref: 17-2
ABSORBER ASSY,RR SHOCK
€ 0.00
17-3
6210024F01
ref: 17-3
ABSORBER ASSY,RR SHOCK
€ 1,174.00
17-4
6210024F40
ref: 17-4
ABSORBER ASSY,RR SHOCK
€ 0.00
17-5
6210024F30
ref: 17-5
ABSORBER ASSY,RR SHOCK
€ 1,148.50
18
0910310033
ref: 18
BOLT(10X70)
€ 5.00
19
0910310027
ref: 19
BOLT(10X58)
€ 3.00
20
0831931107
ref: 20
NUT
€ 3.00
