Buy Suzuki GSX Parts Online


MUFFLER (MODEL X/Y/K1)

GSX1300R HAYABUSA 1999 (X) USA (E03)

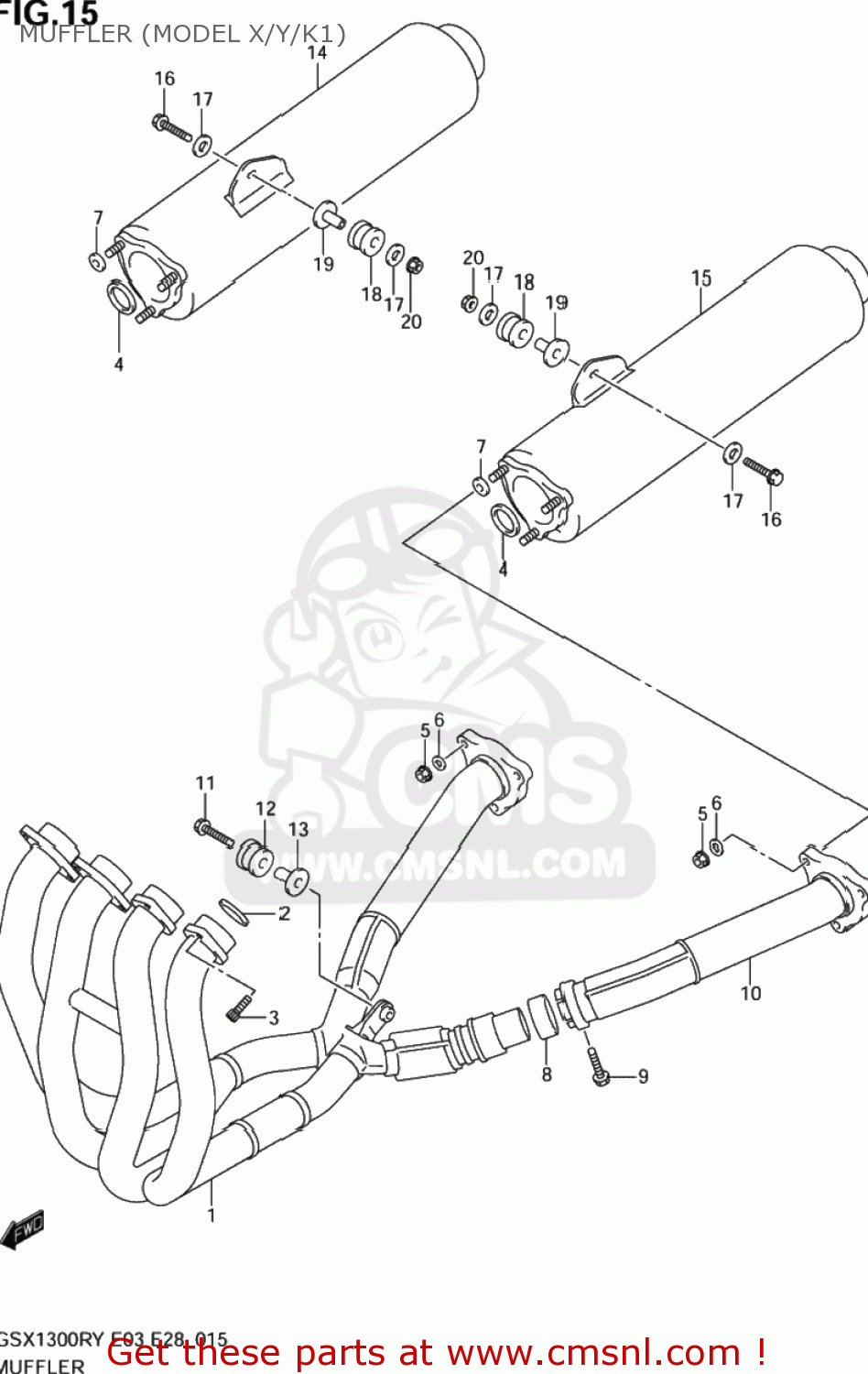

Muffler (model x/y/k1) diagram GSX1300R HAYABUSA 1999 (X) USA (E03)

MUFFLER (MODEL X/Y/K1) GSX1300R HAYABUSA 1999 (X) USA (E03)
MUFFLER (MODEL X/Y/K1) GSX1300R HAYABUSA 1999 (X) USA (E03)
MUFFLER (MODEL X/Y/K1) GSX1300R HAYABUSA 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1410024F10
ref: 1
EXHAUST
€ 748.50
2
1418122D01
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418122D01
€ 9.00
3
0713008253
ref: 3
07130-0825B
BOLT
0713008253
€ 3.50
4
1418133E00
ref: 4
GASKET,MUFFLER JOINT
1418133E00
€ 6.50
5-1
0915908115
ref: 5-1
09159-08116
NUT,MUFFLER JOINT
0915908115
€ 7.50
5-2
0915908116
ref: 5-2
NUT
0915908116
€ 7.50
6-1
0916008114
ref: 6-1
09160-08120
WASHER(8.5X18X1.6)
0916008114
€ 2.50
6-2
0916008059
ref: 6-2
WASHER(8.5X18X1.6)
0916008059
€ 2.00
7
0928008012
ref: 7
O RING(D:1.9,ID:7.8)
0928008012
€ 4.00
8
1477124F00
ref: 8
CONNECTOR,MUFFLER
1477124F00
€ 14.00
9
0155008403
ref: 9
01550-0840A
BOLT
0155008403
€ 3.50
10
1424024F00
ref: 10
PIPE,JOINT,L
1424024F00
€ 242.00
11
0911808152
ref: 11
09118-08152-A05
BOLT 8X45
€ 5.00
12
0932012067
ref: 12
CUSHION
0932012067
€ 13.00
13
0918008152
ref: 13
SPACER(8.6X12X24.2)
0918008152
€ 6.00
14
1431024F00H01
ref: 14
BODY,MUFFLER,R
1431024F00H01
€ 929.50
15
1434024F00H01
ref: 15
BODY,MUFFLER,L
1434024F00H01
€ 940.50
16-1
0155008457
ref: 16-1
BOLT
0155008457
€ 4.00
16-2
0910308358
ref: 16-2
BOLT(8X45)
0910308358
€ 3.50
17-1
0916008136
ref: 17-1
WASHER(8.5X28X1.6)
0916008136
€ 3.50
17-2
0916008142
ref: 17-2
WASHER(8.5X28X1.5)
0916008142
€ 2.50
18
0932012049
ref: 18
CUSHION
0932012049
€ 9.00
19
0918008156
ref: 19
SPACER(8.6X12X27.1)
0918008156
€ 6.50
20
0915908034
ref: 20
NUT
0915908034
€ 2.00
