SEAT (MODEL K3)
GSX1300R HAYABUSA 1999 (X) USA (E03)

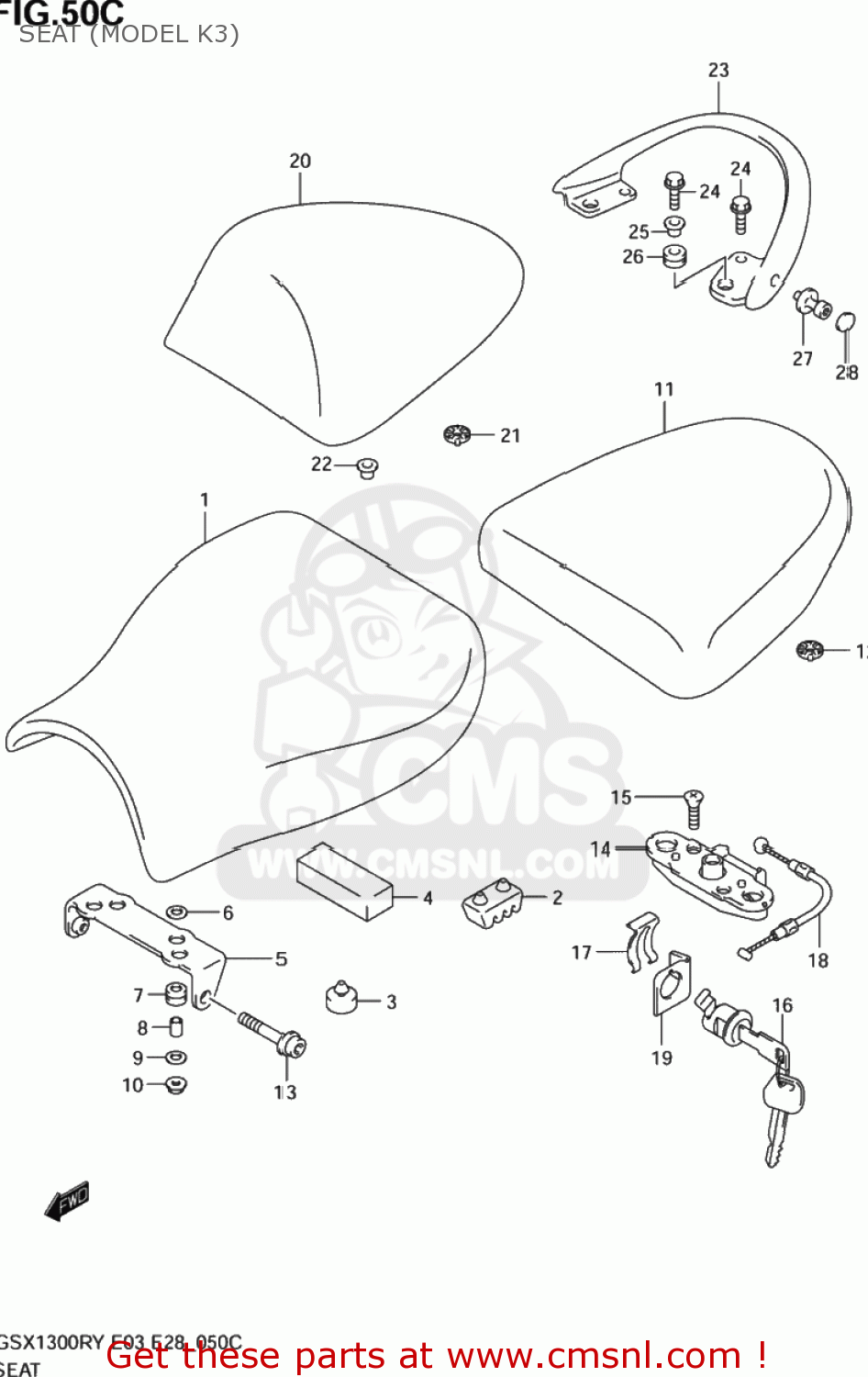

Seat (model k3) diagram GSX1300R HAYABUSA 1999 (X) USA (E03)
SEAT (MODEL K3) GSX1300R HAYABUSA 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510024F10W05
ref: 1
SEAT ASSY(BLACK)
€ 238.50
2
4514945330
ref: 2
CUSHION,SUPPORT(50X25X32)
€ 2.00
3
0932110011
ref: 3
CUSHION
€ 3.00
4
4511747D00
ref: 4
CUSHION,CTR
€ 5.50
5
4511624F10
ref: 5
BRACKET,SEAT
€ 13.50
6
0916006066
ref: 6
WASHER(6.5X20X1.6)
€ 2.00
7
4514924F01
ref: 7
CUSHION,SEAT
€ 9.00
8
0918006310
ref: 8
SPACER(6.5X10X10)
€ 2.00
9
4511724F00
ref: 9
WASHER,SEAT BRACKET
€ 4.00
10
0831610063
ref: 10
08316-1006B
NUT
€ 2.50
11
4530024F10W05
ref: 11
SEAT ASSY,PILLION
€ 233.00
12
4521331300
ref: 12
CUSHION
€ 1.50
13
4519124F00
ref: 13
BOLT,SEAT FR
€ 4.00
14
4522020A01
ref: 14
45220-47H00
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
15
0212206303
ref: 15
02122-0630B
SCREW
€ 2.00
16
9570014810
ref: 16
LOCK SET,SEAT
€ 75.50
17
4528911F00
ref: 17
PLATE,SEAT LOCK ASSY
€ 3.00
18
4528024F00
ref: 18
CABLE,SEAT LOCK
€ 13.00
19
4528814F00
ref: 19
GUIDE,SEAT LOCK CABLE
€ 3.00
20-1
4555024F10YU8
ref: 20-1
BOX,SEAT TAIL
€ 165.50
20-1
4555024F10YU8
ref: 20-1
BOX,SEAT TAIL
€ 165.50
20-2
4555024F10YD8
ref: 20-2
BOX,SEAT TAIL(SILVER)
€ 165.50
20-2
4555024F10YD8
ref: 20-2
BOX,SEAT TAIL(SILVER)
€ 165.50
20-3
4555024F20019
ref: 20-3
BOX,SEAT TAIL(BLACK)
€ 181.50
20-3
4555024F20019
ref: 20-3
BOX,SEAT TAIL(BLACK)
€ 181.50
20-4
4555024F10YAV
ref: 20-4
BOX,SEAT TAIL(ORANGE)
€ 0.00
20-4
4555024F10YAV
ref: 20-4
BOX,SEAT TAIL(ORANGE)
€ 0.00
21
4521331300
ref: 21
CUSHION
€ 1.50
22
4719024F00
ref: 22
47190-24F01
WASHER COMP,FRAME COVER
€ 7.00
23-1
4621124F01Y7L
ref: 23-1
HANDLE,PILLION RIDER
€ 223.00
23-2
4621124F01019
ref: 23-2
HANDLE,PILLION RIDER
€ 242.50
24
0910308373
ref: 24
BOLT(8X35)
€ 3.00
25
4719024F10
ref: 25
47190-24F11
WASHER,PILLION
€ 8.00
26
4621724F00
ref: 26
CUSHION,PILLION RIDER HANDLE
€ 3.00
27
4621224F11
ref: 27
HOOK,PILLION RIDER HANDLE
€ 18.50
28
0925005009
ref: 28
CAP(OD:10)
€ 2.50
