BRACKET - STEERING DAMPER

GSX1300RZ HAYABUSA 1999 (X) USA (E03)

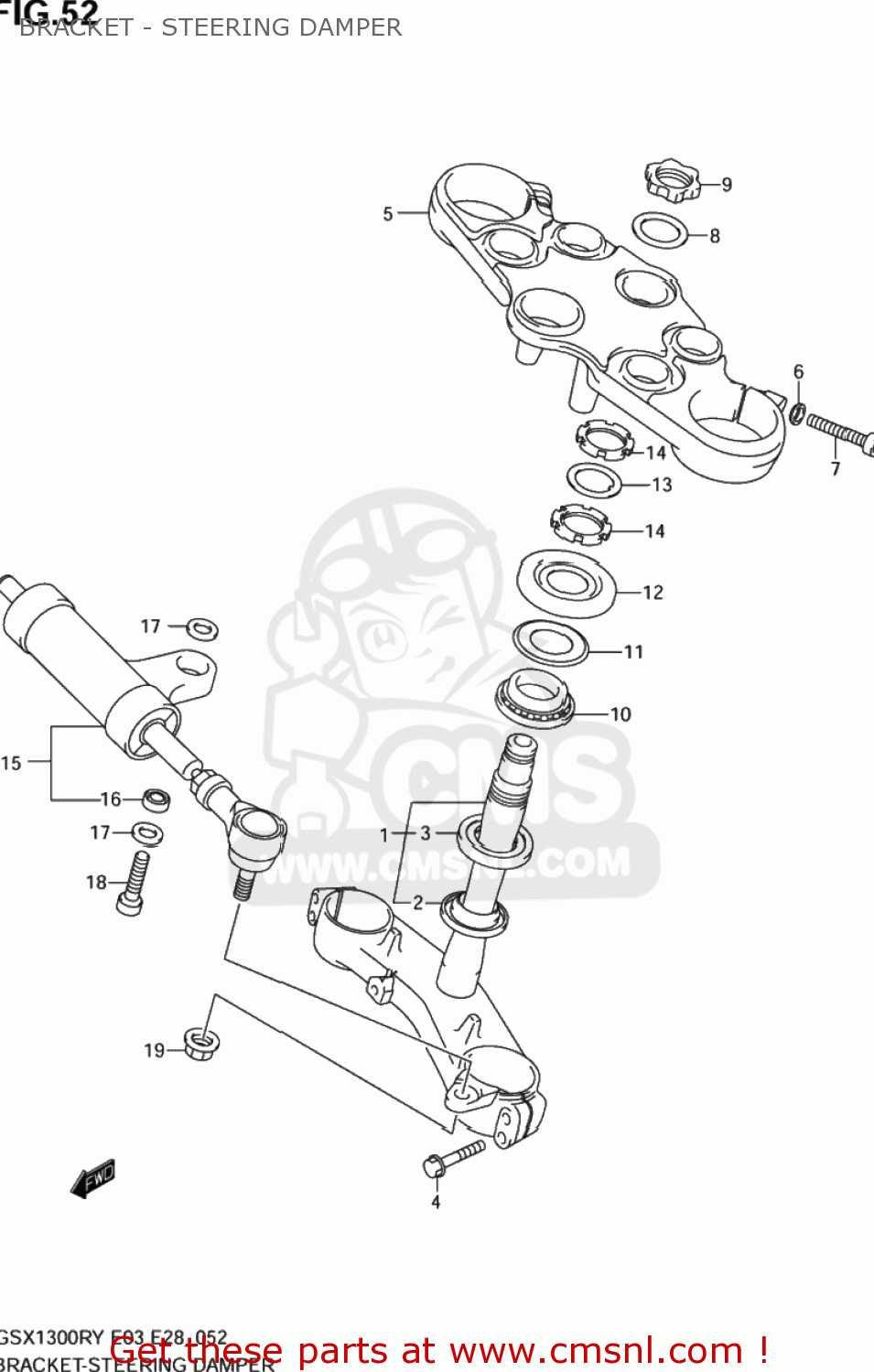

Bracket - steering damper diagram GSX1300RZ HAYABUSA 1999 (X) USA (E03)

BRACKET - STEERING DAMPER GSX1300RZ HAYABUSA 1999 (X) USA (E03)
BRACKET - STEERING DAMPER GSX1300RZ HAYABUSA 1999 (X) USA (E03)
BRACKET - STEERING DAMPER GSX1300RZ HAYABUSA 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
5141024F00
ref: 1-1
51410-24F30
BRACKET,FRONT FORK,UNDER
€ 1,016.50
1-2
5141024F30
ref: 1-2
BRACKET,FR FORK UNDER
€ 1,016.50
2
5164412C00
ref: 2
SEAL,STEERING LWR
5164412C00
€ 5.50
3
0926730010
ref: 3
BEARING(30X55X17)
0926730010
€ 46.50
4
0155008407
ref: 4
BOLT
0155008407
€ 3.50
5
5131124F00
ref: 5
BRACKET,FR FORK UPR
5131124F00
€ 440.00
6
0916408015
ref: 6
WASHER
0916408015
€ 3.00
7
0713008357
ref: 7
BOLT
0713008357
€ 4.50
8
5135627C00
ref: 8
WASHER,STEM HEAD(24.5X34X1.6)
5135627C00
€ 2.50
9
5135324F00
ref: 9
NUT
5135324F00
€ 27.50
10
0926730010
ref: 10
BEARING(30X55X17)
0926730010
€ 46.50
11
5164412C00
ref: 11
SEAL,STEERING LWR
5164412C00
€ 5.50
12-1
5164324F00
ref: 12-1
51643-24F10
COVER,STEERING,UPPER
€ 27.50
12-2
5164324F10
ref: 12-2
COVER,STEERING UPR
5164324F10
€ 27.50
13
5164133E00
ref: 13
WASHER,STEERING STEM
5164133E00
€ 3.00
14
5163133E00
ref: 14
NUT,STEERING STEM
5163133E00
€ 12.00
15
5175024F00
ref: 15
DAMPER ASSY,STEERING
5175024F00
€ 499.00
16
0926908003
ref: 16
BEARING(8X17.5X11)
0926908003
€ 39.50
17
6433914101
ref: 17
SEAL,PILLOW BALL,DUST
6433914101
€ 4.50
18
0713008307
ref: 18
BOLT
0713008307
€ 4.50
19
0831931107
ref: 19
NUT
0831931107
€ 3.00
