REAR SWINGING ARM (MODEL X/Y/K1/K2)

GSX1300RZ HAYABUSA 1999 (X) USA (E03)

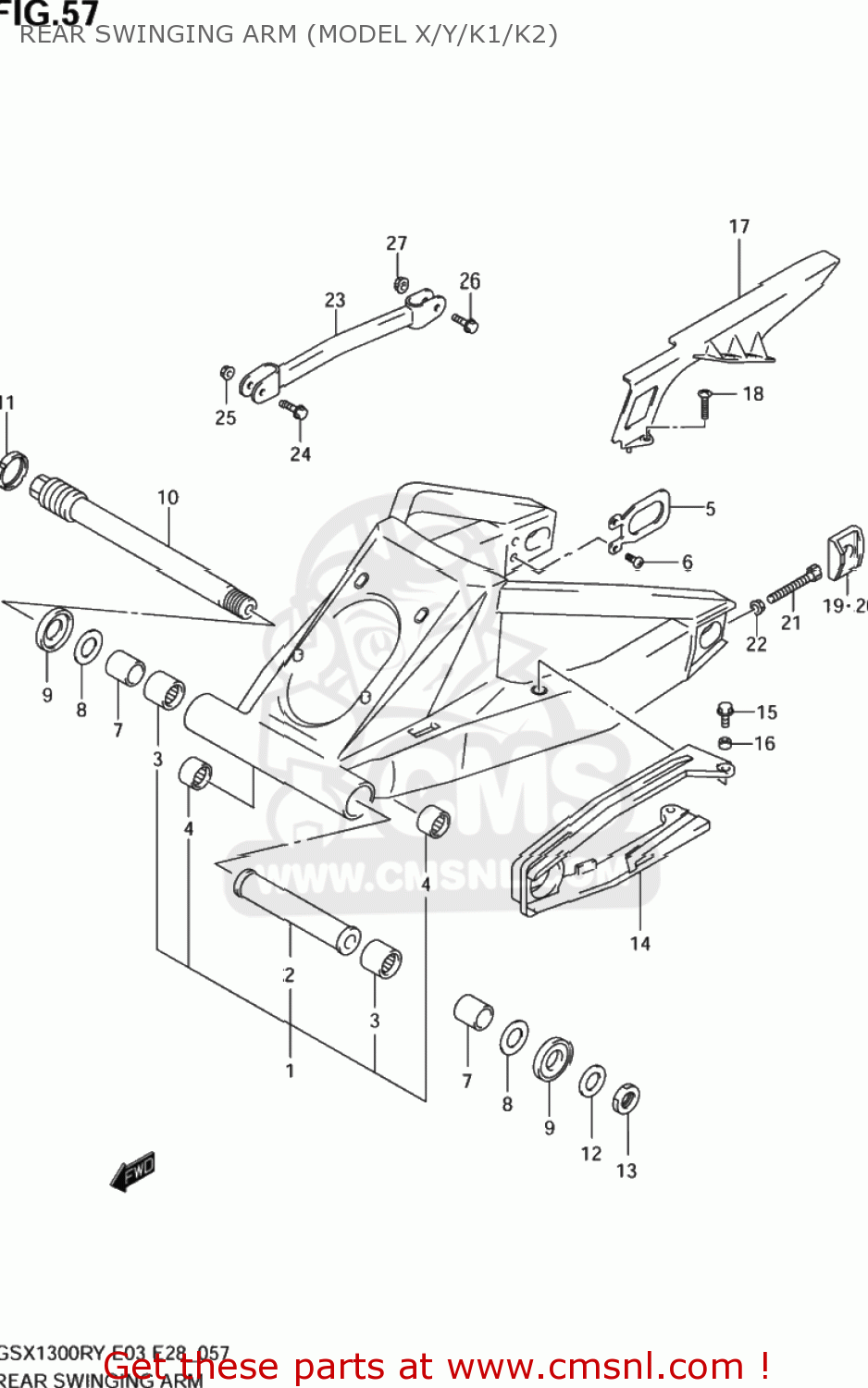

Rear swinging arm (model x/y/k1/k2) diagram GSX1300RZ HAYABUSA 1999 (X) USA (E03)

REAR SWINGING ARM (MODEL X/Y/K1/K2) GSX1300RZ HAYABUSA 1999 (X) USA (E03)

REAR SWINGING ARM (MODEL X/Y/K1/K2) GSX1300RZ HAYABUSA 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6100024F00
ref: 1-1

SWINGINGARM ASSY,RR

€ 2,000.00

1-2

6100024F10
ref: 1-2

SWINGINGARM ASSY,RR

€ 0.00

2

6128133E10
ref: 2
61281-33E20

SPACER,REAR SWING PIVOT,CENTER

€ 26.00

3

0926330040
ref: 3

BEARING(30X40X25)

€ 31.50

4

0926320071
ref: 4

BEARING(20X27X23.5)

€ 21.50

5

6112433E00
ref: 5

PLATE,RR SWING ARM BRKT

€ 3.50

6

0214206163
ref: 6
02142-0616A

SCREW

€ 2.50

7

6125117E10
ref: 7

SPACER,REAR SWING ARM PIVOT

€ 7.00

8

0821125481
ref: 8

WASHER

€ 5.50

9

6126217E10
ref: 9

DUST SEAL,RR SWGARM PIVOT

€ 6.50

10

6121133E00
ref: 10

SHAFT,RR SWINGINGARM PIVOT

€ 100.00

11

6121440C31
ref: 11

NUT,RR SWGARM PIVOT BOLT

€ 16.50

12

0916025070
ref: 12

WASHER(25.2X42X3.2)

€ 4.50

13

0915925001
ref: 13
09159-25003

NUT

€ 29.00

14

6127324F00
ref: 14

BUFFER,CHAIN TOUCH DEFENSE

€ 43.00

15

0911606152
ref: 15

BOLT(6X20)

€ 2.00

16

0918006306
ref: 16

SPACER(6.5X9X5)

€ 2.00

17

6131133E01
ref: 17

CASE,CHAIN

€ 30.00

18

0913906083
ref: 18

SCREW(6X16)

€ 2.50

19

6144633E10
ref: 19

ADJUSTER,CHAIN,L

€ 42.50

20

6144533E00
ref: 20

ADJUSTER,CHAIN,R

€ 42.00

21

0910008287
ref: 21

BOLT(8X50)

€ 3.00

22

0831610083
ref: 22
08316-1008B

NUT

€ 3.00

23

6431024F00
ref: 23

TORQUELINK,RR

€ 53.00

24

0911108085
ref: 24

BOLT(8X35.5)

€ 5.50

25

0831931087
ref: 25

NUT

€ 2.50

26

0910310019
ref: 26

BOLT(10X37)

€ 2.50

27

0831931107
ref: 27

NUT

€ 3.00
