Buy Suzuki GSX Parts Online


FRONT CALIPERS (MODEL K3)

GSX1300RZ HAYABUSA 1999 (X) USA (E03)

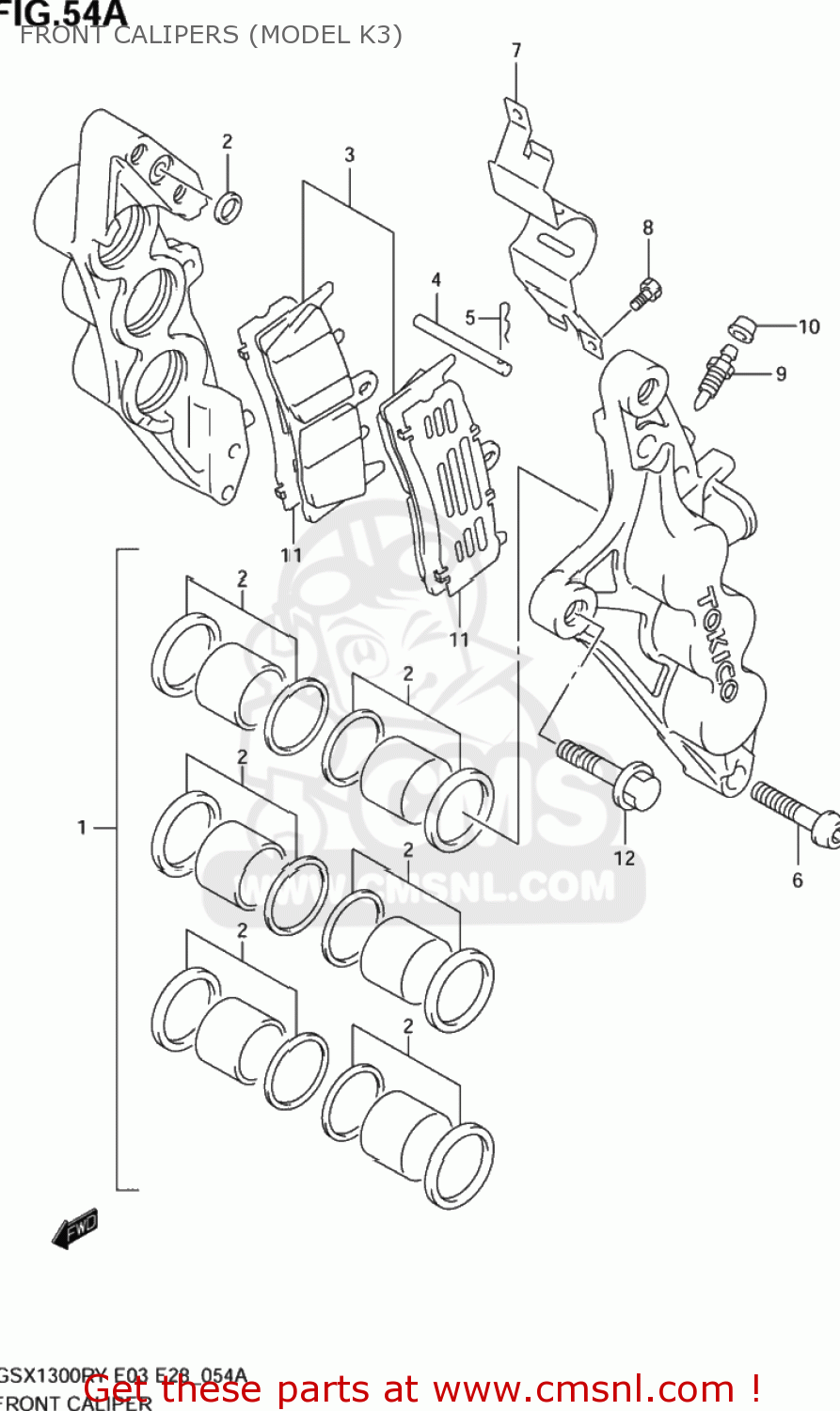

Front calipers (model k3) diagram GSX1300RZ HAYABUSA 1999 (X) USA (E03)

FRONT CALIPERS (MODEL K3) GSX1300RZ HAYABUSA 1999 (X) USA (E03)
FRONT CALIPERS (MODEL K3) GSX1300RZ HAYABUSA 1999 (X) USA (E03)
FRONT CALIPERS (MODEL K3) GSX1300RZ HAYABUSA 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity

5910033E40
ref:
59302-33860
CALIPER ASSY,F
€ 764.50

5930033E40
ref:
59300-33E40-999
CALIPER ASSY,F
€ 764.50

5910033E11
ref:
59100-33E11-999
CALIPER ASSEMBLY,FRONT,RIGHT
€ 805.00

5930033E11
ref:
59300-33E11-999
CALIPER ASSEMBLY,FRONT,LEFT
€ 718.00
1
5930133861
ref: 1
PISTON SET
5930133861
€ 222.00
2
5930033881
ref: 2
SEAL SET,PISTON
5930033881
€ 60.50
3
5930133870
ref: 3
PAD SET (NAS)
5930133870
€ 65.50
4
6914146E01
ref: 4
PIN,PAD
6914146E01
€ 9.00
5
6914245000
ref: 5
CLIP,PAD PIN
6914245000
€ 4.50
6
5914533E10
ref: 6
59145-33E00
BOLT
5914533E10
€ 9.00
7
5915146E00
ref: 7
COVER,CALIPER
5915146E00
€ 27.00
8
5915322D00
ref: 8
SCREW
5915322D00
€ 4.50
9
5912118410
ref: 9
BLEEDER
5912118410
€ 8.00
10
5515666310
ref: 10
CAP,BLEEDER PLUG
5515666310
€ 6.00
11
5917133E00
ref: 11
SHIM,PAD
5917133E00
€ 14.00
12
0910310320
ref: 12
BOLT(10X30)
0910310320
€ 8.00
