Buy Suzuki GSX Parts Online


COWL BODY INSTALLATION PARTS

GSX1300RZ HAYABUSA 2003 (K3) USA (E03)

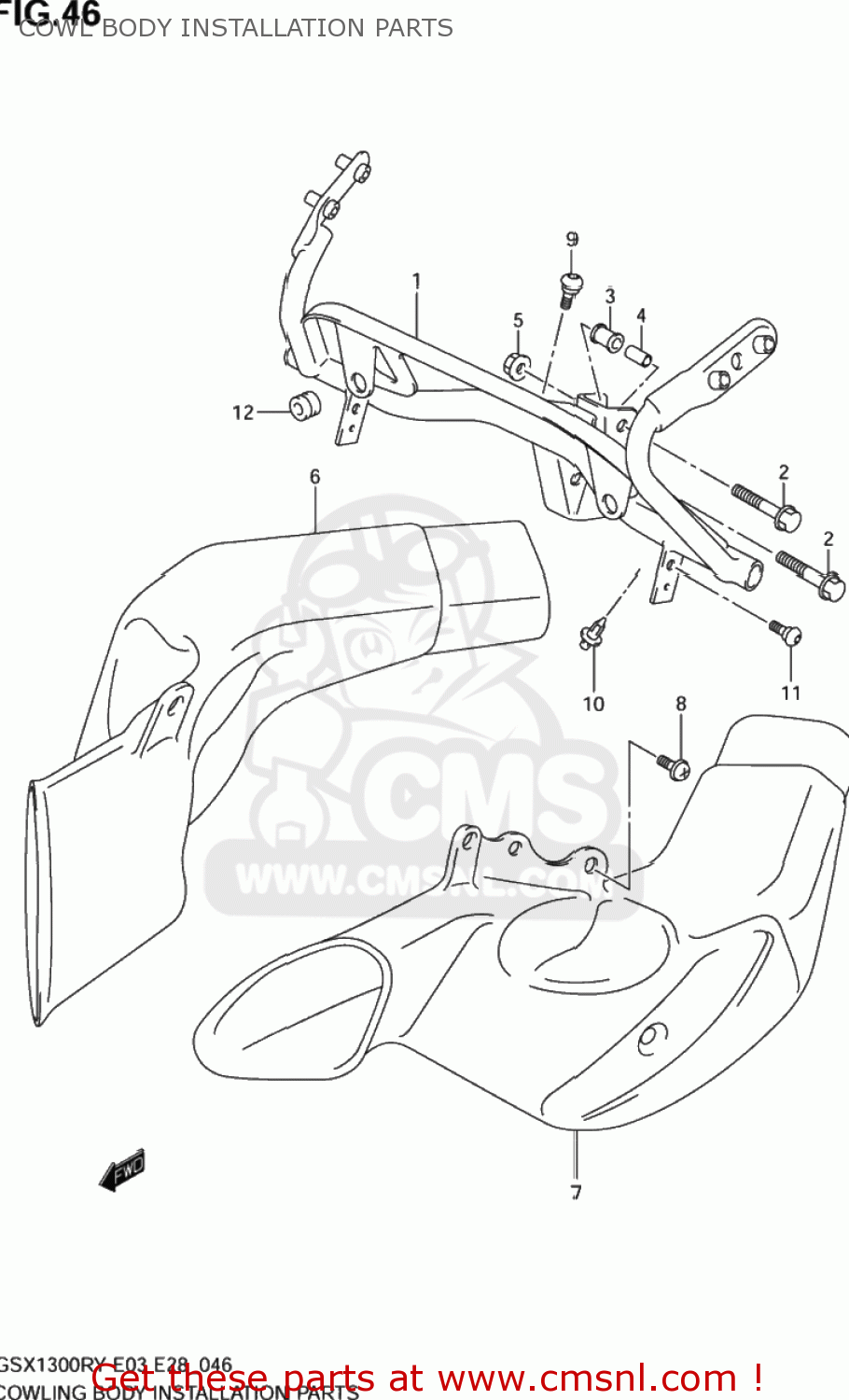

Cowl body installation parts diagram GSX1300RZ HAYABUSA 2003 (K3) USA (E03)

COWL BODY INSTALLATION PARTS GSX1300RZ HAYABUSA 2003 (K3) USA (E03)
COWL BODY INSTALLATION PARTS GSX1300RZ HAYABUSA 2003 (K3) USA (E03)
COWL BODY INSTALLATION PARTS GSX1300RZ HAYABUSA 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9451024F00
ref: 1-1
94510-24F01
BRACE COMP,COWLING
€ 635.00
1-2
9451024F01
ref: 1-2
BRACE,COWLING
€ 635.00
2
0155008403
ref: 2
01550-0840A
BOLT
0155008403
€ 3.50
3
9454141C00
ref: 3
CUSHION,COWLING BRACE
9454141C00
€ 4.50
4
0918008166
ref: 4
09180-08215
SPACER
0918008166
€ 3.50
5
0831320083
ref: 5
08313-2008A
NUT
€ 2.50
6-1
9442124F00
ref: 6-1
94421-24F01
PIPE,AIR INTAKE,RIGHT
€ 77.00
6-2
9442124F01
ref: 6-2
PIPE,AIR INTAKE,R
9442124F01
€ 77.00
7-1
9443124F00
ref: 7-1
94431-24F02
PIPE,AIR INTAKE,LEFT
€ 81.50
7-2
9443124F02
ref: 7-2
PIPE,AIR INTAKE,L
9443124F02
€ 81.50
8-1
0913605054
ref: 8-1
SCREW(5X14)
0913605054
€ 2.50
8-2
0913905054
ref: 8-2
SCREW(5X16)
0913905054
€ 6.00
9
0913905055
ref: 9
SCREW(5X16)
0913905055
€ 6.00
10
09409063145PK
ref: 10
CLIP(BLACK)
09409063145PK
€ 3.50
11
0913905054
ref: 11
SCREW(5X16)
0913905054
€ 6.00
12
0932008028
ref: 12
CUSHION
0932008028
€ 2.50
