WIRING HARNESS (MODEL X/Y/K1/K2)

GSX1300RZ HAYABUSA 2003 (K3) USA (E03)

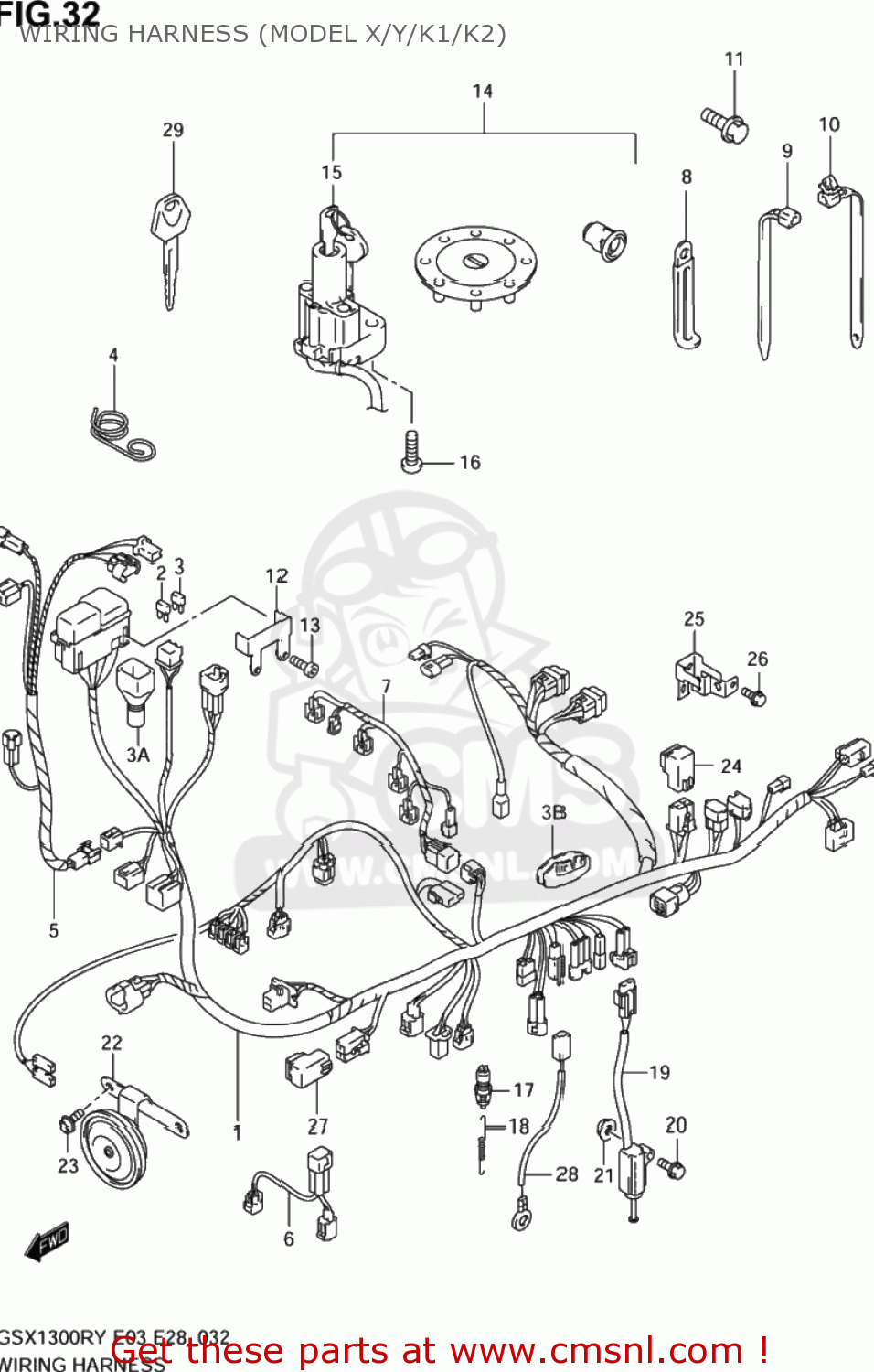

Wiring harness (model x/y/k1/k2) diagram GSX1300RZ HAYABUSA 2003 (K3) USA (E03)

WIRING HARNESS (MODEL X/Y/K1/K2) GSX1300RZ HAYABUSA 2003 (K3) USA (E03)
WIRING HARNESS (MODEL X/Y/K1/K2) GSX1300RZ HAYABUSA 2003 (K3) USA (E03)
WIRING HARNESS (MODEL X/Y/K1/K2) GSX1300RZ HAYABUSA 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3661024F10
ref: 1-1
HARNESS,WIRING
€ 856.50
1-2
3661024F20
ref: 1-2
HARNESS,WIRING
€ 578.50
1-3
3661024F30
ref: 1-3
HARNESS,WIRING
€ 945.00
2
0948110501
ref: 2
FUSE(10A)
0948110501
€ 3.00
3
0948115501
ref: 3
FUSE(15A)
0948115501
€ 1.00
3A
3661833E00
ref: 3A
COVER,SPEEDOMETER COUPLER
€ 5.50
3B
3661124F00
ref: 3B
PROTECTOR,WIRING HARNESS
€ 7.50
4
3661924F00
ref: 4
GUIDE,WIRING HARNESS
3661924F00
€ 7.00
5
3662024F10
ref: 5
HARNESS,WIRING NO.2
3662024F10
€ 155.00
6
3685424F00
ref: 6
WIRE,SENSOR LEAD
3685424F00
€ 72.50
7-1
3685624F00
ref: 7-1
WIRE,INJECTOR LEAD
3685624F00
€ 90.50
7-2
3685624F10
ref: 7-2
WIRE,INJECTOR LEAD
3685624F10
€ 101.00
8-1
0940406432
ref: 8-1
CLAMP(L:65)
0940406432
€ 2.50
8-2
0940406434
ref: 8-2
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
9-1
0940714403
ref: 9-1
CLAMP(L:125)
0940714403
€ 2.50
9-2
0940718402
ref: 9-2
CLAMP(L:165)
0940718402
€ 2.50
10-1
0940711402
ref: 10-1
CLAMP(L:90)
0940711402
€ 2.50
10-2
0940717401
ref: 10-2
09407-17402
CLAMP
0940717401
€ 5.00
11
0155006103
ref: 11
01550-0610A
BOLT
0155006103
€ 2.50
12
3674424F00
ref: 12
BRACKET,FUSE BOX
€ 7.50
13
0712005103
ref: 13
07120-0510B
BOLT
€ 2.00
14-1
3700024810
ref: 14-1
LOCK SET
€ 508.00
14-2
3700024830
ref: 14-2
LOCK SET
€ 0.00
15
3710024F00
ref: 15
LOCK ASSY,STEERING
3710024F00
€ 225.00
16
0913908016
ref: 16
BOLT(8X20)
0913908016
€ 3.50
17
3774024A00
ref: 17
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
18
0944306012
ref: 18
SPRING
0944306012
€ 3.00
19
3784024F00
ref: 19
SWITCH ASSY,SIDE STAND
3784024F00
€ 63.50
20-1
0910308287
ref: 20-1
09103-08357
BOLT(8X35)
€ 2.00
20-2
0910308357
ref: 20-2
BOLT(8X35)
0910308357
€ 2.00
21
0831610083
ref: 21
08316-1008B
NUT
0831610083
€ 3.00
22
3850024F00
ref: 22
HORN ASSY
3850024F00
€ 83.00
23
0712006123
ref: 23
07120-0612B
BOLT
€ 3.50
24
3874026E00
ref: 24
RELAY ASSY
3874026E00
€ 32.50
25
3874124F00
ref: 25
BRACKET,FUEL PUMP RLY
3874124F00
€ 5.00
26
0155006123
ref: 26
01550-0612A
BOLT
0155006123
€ 2.50
27
3874026E00
ref: 27
RELAY ASSY
3874026E00
€ 32.50
28
3685117E10
ref: 28
WIRE,OIL PRESSURE SWITCH LEAD
3685117E10
€ 13.50
29
3714633E00
ref: 29
KEY,BLANK
3714633E00
€ 13.00
