TURNSIGNAL LAMP

GSX1300RZ HAYABUSA 2003 (K3) USA (E03)

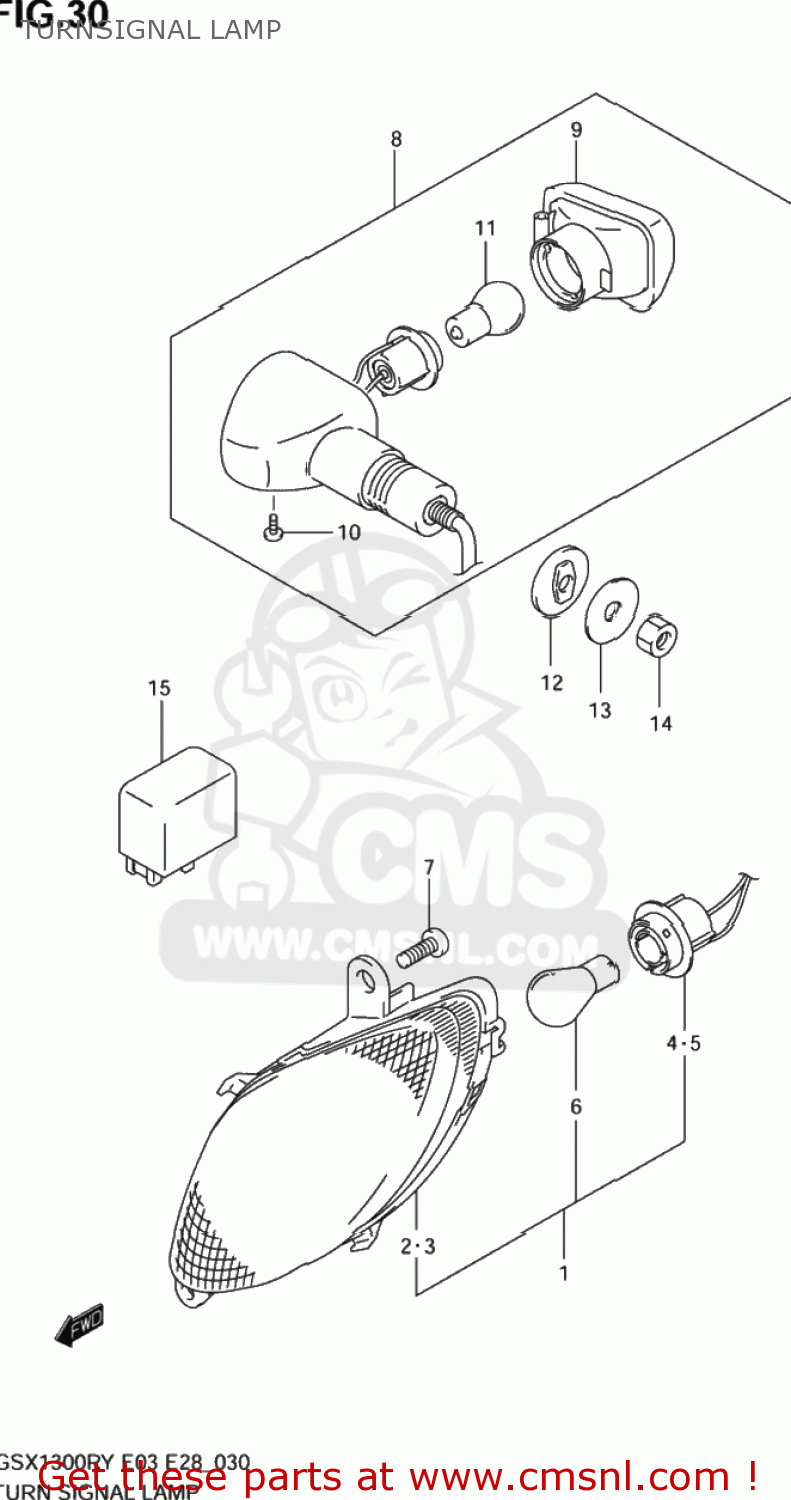

Turnsignal lamp diagram GSX1300RZ HAYABUSA 2003 (K3) USA (E03)

TURNSIGNAL LAMP GSX1300RZ HAYABUSA 2003 (K3) USA (E03)

TURNSIGNAL LAMP GSX1300RZ HAYABUSA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3560124F00
ref: 1-1

LAMP ASSY,FR TURN SIGNAL,R

€ 79.50

1-2

3560224F00
ref: 1-2

LAMP ASSY,FR TURN SIGNAL,L

€ 77.50

2

3561024F00
ref: 2

LAMP UNIT,R

€ 79.50

3

3563024F00
ref: 3

LAMP UNIT,L

€ 77.50

4

3561824F00
ref: 4

SOCKET & CORD,R

€ 25.50

5

3563824F00
ref: 5

SOCKET & CORD,L

€ 24.00

6

0947112045
ref: 6

BULB(12V21W)

€ 5.00

7

0354105163
ref: 7
03541-0516A

SCREW

€ 1.50

8-1

3560333E30
ref: 8-1

LAMP ASSY,RR TURNSIGNAL,R

€ 70.50

8-2

3560433E30
ref: 8-2

LAMP ASSY,RR TURNSIGNAL,L

€ 70.50

9

3561033E00
ref: 9

LAMP UNIT

€ 31.00

10

0324204123
ref: 10
03242-0412B

SCREW

€ 2.00

11

0947112045
ref: 11

BULB(12V21W)

€ 5.00

12

3569517C00
ref: 12

SPACER,RR TURNSIGNAL

€ 3.00

13

0916010501
ref: 13

WASHER(10.5X30X2.3)

€ 2.50

14

0831000103
ref: 14
08310-0010A

NUT

€ 2.00

15

3861003F00
ref: 15

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
