WIRING HARNESS (MODEL K3)

GSX1300RZ HAYABUSA 2003 (K3) USA (E03)

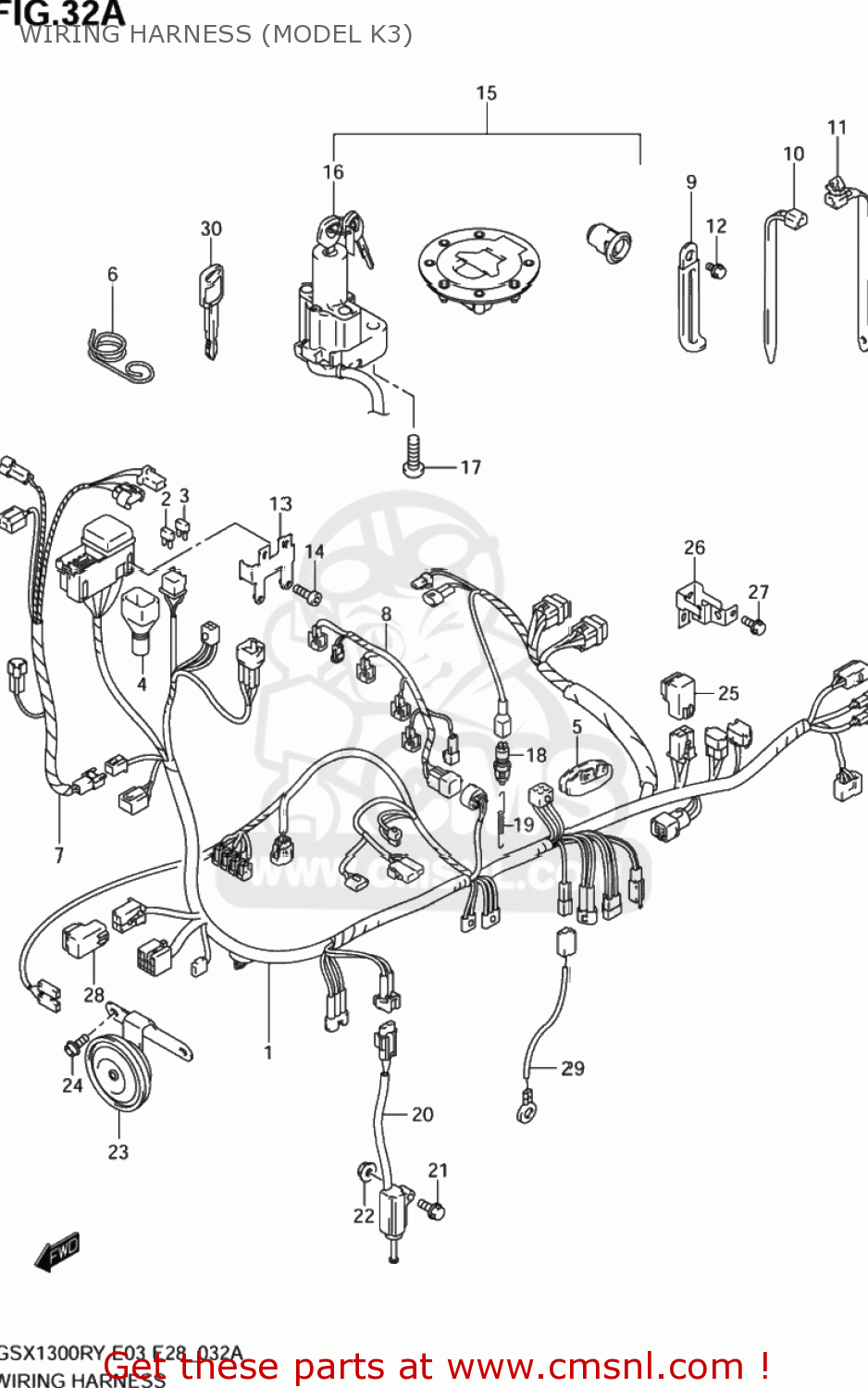

Wiring harness (model k3) diagram GSX1300RZ HAYABUSA 2003 (K3) USA (E03)

WIRING HARNESS (MODEL K3) GSX1300RZ HAYABUSA 2003 (K3) USA (E03)
WIRING HARNESS (MODEL K3) GSX1300RZ HAYABUSA 2003 (K3) USA (E03)
WIRING HARNESS (MODEL K3) GSX1300RZ HAYABUSA 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661024F60
ref: 1
HARNESS,WIRING
€ 0.00
2
0948110501
ref: 2
FUSE(10A)
0948110501
€ 3.00
3
0948115501
ref: 3
FUSE(15A)
0948115501
€ 1.00
4
3661833E00
ref: 4
COVER,SPEEDOMETER COUPLER
€ 5.50
5
3661124F00
ref: 5
PROTECTOR,WIRING HARNESS
€ 7.50
6
3661924F00
ref: 6
GUIDE,WIRING HARNESS
3661924F00
€ 7.00
7
3662024F10
ref: 7
HARNESS,WIRING NO.2
3662024F10
€ 155.00
8
3685624F10
ref: 8
WIRE,INJECTOR LEAD
3685624F10
€ 101.00
9-1
0940406432
ref: 9-1
CLAMP(L:65)
0940406432
€ 2.50
9-2
0940406431
ref: 9-2
09404-06432
CLAMP(L:65)
0940406431
€ 2.50
9-3
0940406433
ref: 9-3
CLAMP(L:80)
0940406433
€ 3.00
10-1
0940714403
ref: 10-1
CLAMP(L:125)
0940714403
€ 2.50
10-2
0940718402
ref: 10-2
CLAMP(L:165)
0940718402
€ 2.50
11-1
0940711402
ref: 11-1
CLAMP(L:90)
0940711402
€ 2.50
11-2
0940714408
ref: 11-2
09407-17402
CLAMP(L:120)
0940714408
€ 5.00
12
0155006103
ref: 12
01550-0610A
BOLT
0155006103
€ 2.50
13
3674424F00
ref: 13
BRACKET,FUSE BOX
€ 7.50
14
0712005103
ref: 14
07120-0510B
BOLT
€ 2.00
15-1
3700024810
ref: 15-1
LOCK SET
€ 508.00
15-2
3700024830
ref: 15-2
LOCK SET
€ 0.00
16
3710024F00
ref: 16
LOCK ASSY,STEERING
3710024F00
€ 225.00
17
0913908016
ref: 17
BOLT(8X20)
0913908016
€ 3.50
18
3774024A00
ref: 18
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
19
0944306012
ref: 19
SPRING
0944306012
€ 3.00
20
3784024F00
ref: 20
SWITCH ASSY,SIDE STAND
3784024F00
€ 63.50
21
0910308357
ref: 21
BOLT(8X35)
0910308357
€ 2.00
22
0831610083
ref: 22
08316-1008B
NUT
0831610083
€ 3.00
23
3850024F00
ref: 23
HORN ASSY
3850024F00
€ 83.00
24
0712006123
ref: 24
07120-0612B
BOLT
€ 3.50
25
3874026E00
ref: 25
RELAY ASSY
3874026E00
€ 32.50
26
3874124F00
ref: 26
BRACKET,FUEL PUMP RLY
3874124F00
€ 5.00
27
0155006123
ref: 27
01550-0612A
BOLT
0155006123
€ 2.50
28
3874026E00
ref: 28
RELAY ASSY
3874026E00
€ 32.50
29
3685117E10
ref: 29
WIRE,OIL PRESSURE SWITCH LEAD
3685117E10
€ 13.50
30
3714633E00
ref: 30
KEY,BLANK
3714633E00
€ 13.00
