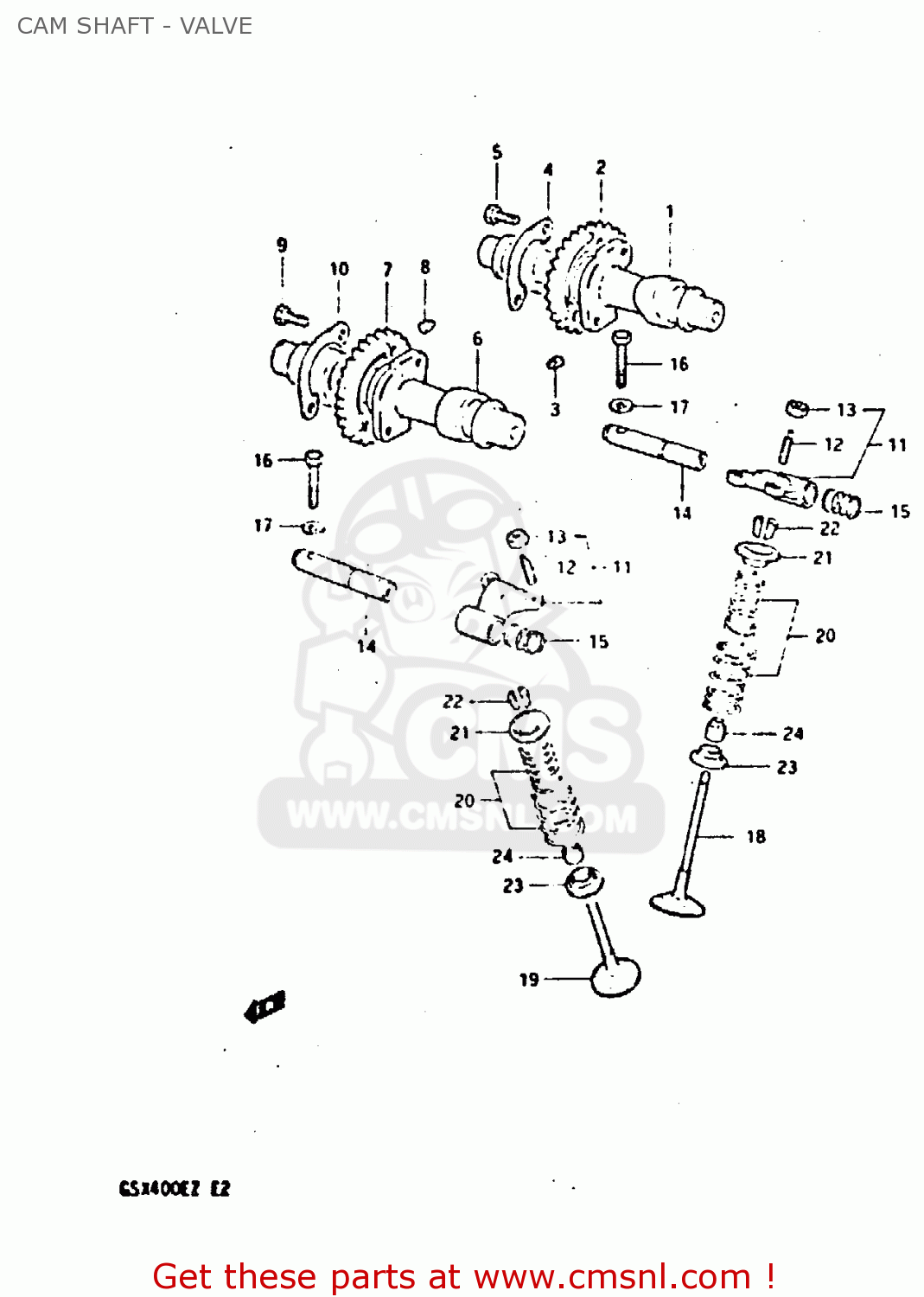

CAM SHAFT - VALVE - GSX400E 1982 (Z) (E02 E04 E16 E17 E22 E24 E26)

ref

part #

description

quantity

1-1

1271144201
ref: 1-1

CAM SHAFT, INTAKE

€ 170.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

1274044201
ref: 2

SPROCKET (NT:30)

€ 0.00

3

1274844000
ref: 3

PIN,SPROCKET

€ 4.50

4

0911106027
ref: 4

BOLT(6X12.5)

€ 1.50

5

1274744000
ref: 5

WASHER,CAM CHAIN SPROCKET

€ 2.00

6-1

1272144201
ref: 6-1

CAMSHAFT,EXHAUST

€ 323.50

6-2

NOTUSED
ref: 6-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

7

1275044201
ref: 7

SPROCKET (NT:30)

€ 28.50

8

1274844000
ref: 8

PIN,SPROCKET

€ 4.50

9

0911106027
ref: 9

BOLT(6X12.5)

€ 1.50

10

1274744000
ref: 10

WASHER,CAM CHAIN SPROCKET

€ 2.00

11

1284045410
ref: 11

ARM,VALVE ROCKER

€ 78.50

12

1284249210
ref: 12

SCREW,TAPPET ADJUSTING

€ 5.50

13

1284349210
ref: 13

NUT,ADJUSTING

€ 3.00

14

1286044200
ref: 14

SHAFT,VALVE ROCKER ARM

€ 18.00

15

0944013014
ref: 15

SPRING

€ 2.50

16

0110706308
ref: 16

BOLT

€ 2.50

17

0832221068
ref: 17

WASHER

€ 2.00

18

1291145420
ref: 18

VALVE,INTAKE

€ 21.50

19

1291245420
ref: 19

VALVE,EXHAUST

€ 32.00

20

1292049210
ref: 20

SPRING SET,VALVE

€ 16.00

21

1293149200
ref: 21

RETAINER,VALVE SPRING

€ 5.50

22

1293249200
ref: 22

COTTER VALVE

€ 2.50

23

1293349200
ref: 23

SEAT,VALVE SPRING

€ 4.50

24

0928905003
ref: 24

OIL SEAL

€ 6.50

CAM SHAFT - VALVE
