FRAME COVER

GSX400E 1982 (Z) (E02 E04 E16 E17 E22 E24 E26)

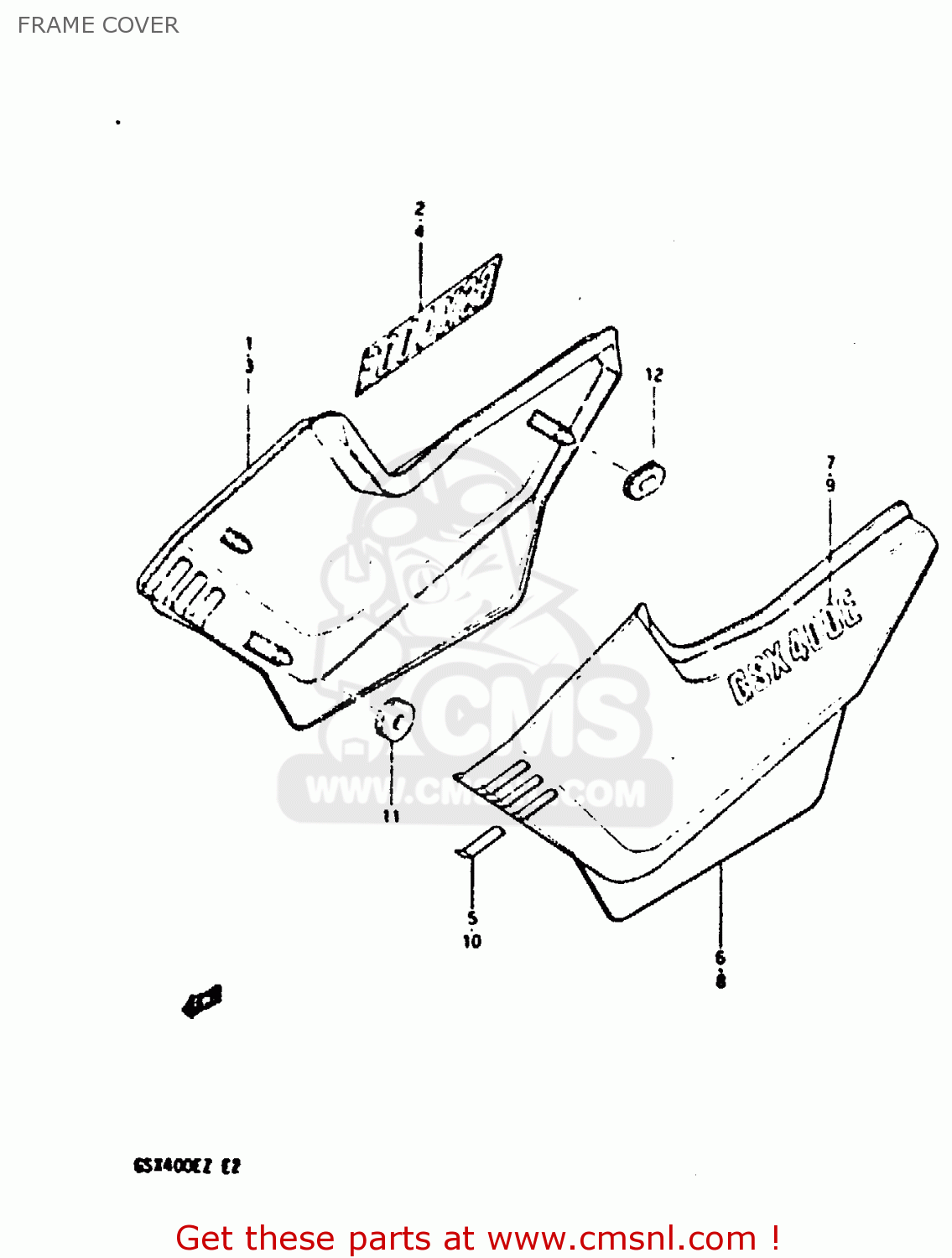

Frame cover diagram GSX400E 1982 (Z) (E02 E04 E16 E17 E22 E24 E26)

FRAME COVER GSX400E 1982 (Z) (E02 E04 E16 E17 E22 E24 E26)

FRAME COVER GSX400E 1982 (Z) (E02 E04 E16 E17 E22 E24 E26)

prices are in EUR

ref

part #

description

quantity

1

471114440007P
ref: 1

COVER,FRAME,RIGHT

€ 60.00

2

6813144400600
ref: 2

EMBLEM, RH

€ 0.00

3

4711144400737
ref: 3

COVER, FRAME RH (SILVER)

€ 60.00

4

681314440065H
ref: 4

EMBLEM, LH

€ 12.00

5

6813444400
ref: 5

LABEL,FRAME COVER DENT

€ 2.50

6

472114440007P
ref: 6

COVER,FRAME,LEFT

€ 68.50

7

681314440060D
ref: 7

EMBLEM, LH

€ 6.00

8

4721144400737
ref: 8

COVER, FRAME LH (SILVER)

€ 68.50

9

681314440065H
ref: 9

EMBLEM, LH

€ 12.00

10

6814444400
ref: 10

LABEL,FRAME COVER

€ 2.00

11

0932008018
ref: 11

CUSHION

€ 4.00

12

0932908003
ref: 12

CUSHION

€ 3.50
