GENERATOR

GSX400E 1982 (Z) (E02 E04 E16 E17 E22 E24 E26)

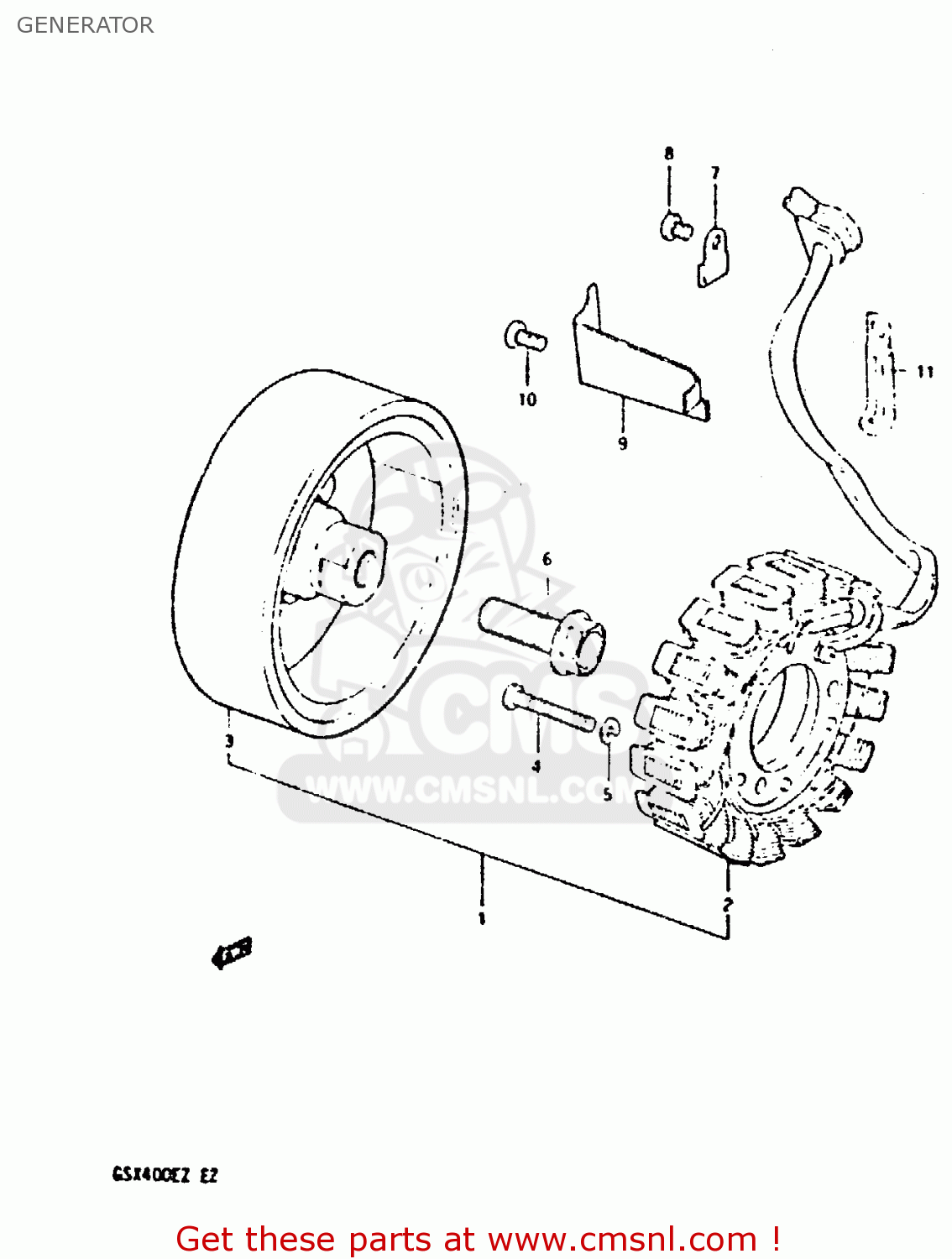

Generator diagram GSX400E 1982 (Z) (E02 E04 E16 E17 E22 E24 E26)

prices are in EUR

ref

part #

description

quantity

3140047020
ref: 1

GENERATOR ASSEMBLY

€ 371.00

3140147020
ref: 2

STATOR ASSEMBLY

€ 371.00

3140245090
ref: 3

ROTOR ASSEMBLY

€ 385.00

0211205308
ref: 4

SCREW

€ 1.50

0832121058
ref: 5

LOCK WASHER

€ 2.00

0910312004
ref: 6

BOLT(12X40)

€ 3.00

3149745000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205068
ref: 8

SCREW

€ 4.00

3149845000
ref: 9

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206108
ref: 10

SCREW

€ 1.50

0940406401
ref: 11

CLAMP L:35

€ 2.50

all assemblies
