CHAIN CASE - SHOCK ABSORBER

GSX400E 1982 (Z) (E02 E04 E16 E17 E22 E24 E26)

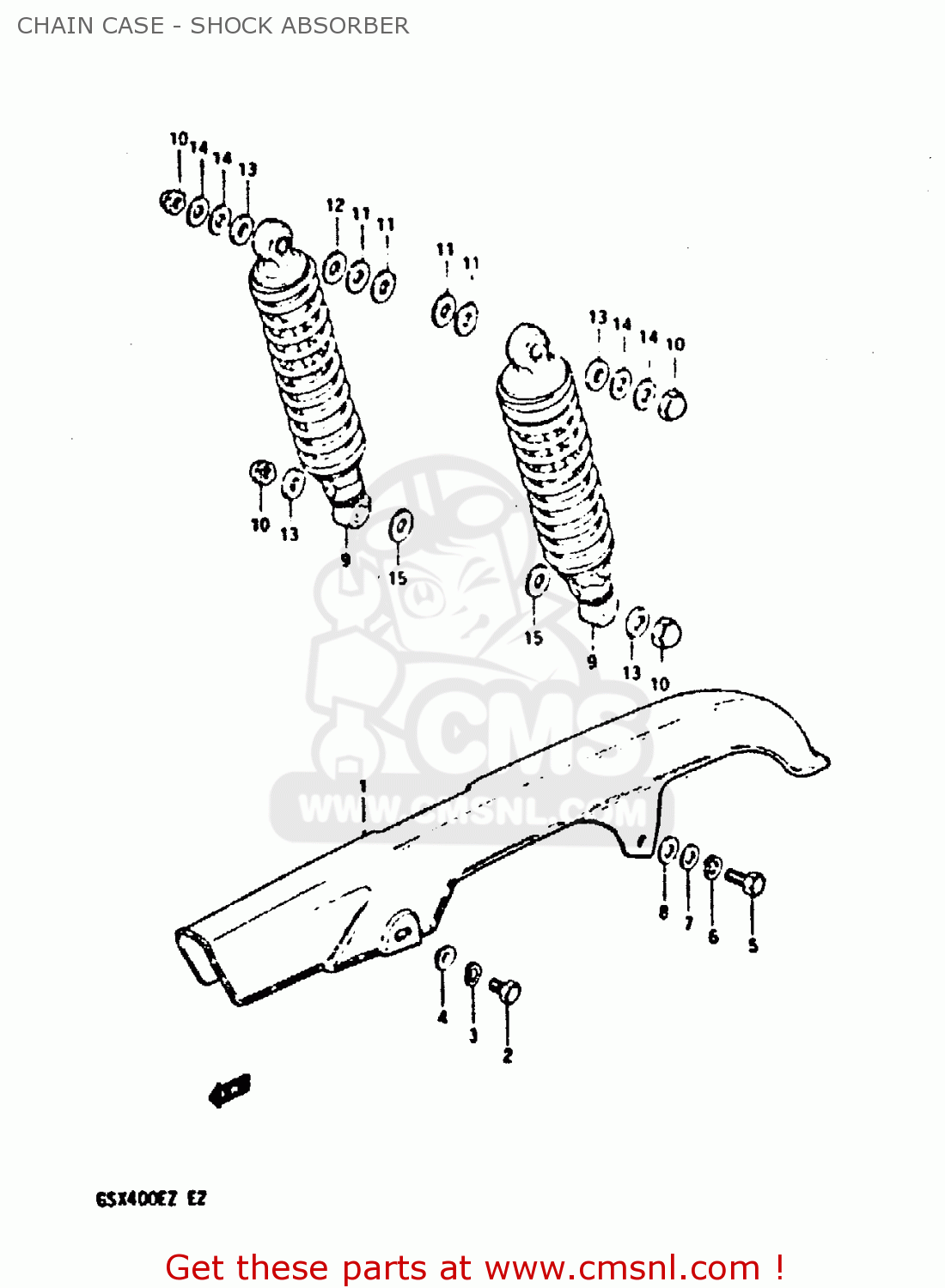

Chain case - shock absorber diagram GSX400E 1982 (Z) (E02 E04 E16 E17 E22 E24 E26)

prices are in EUR

ref

part #

description

quantity

6131044400
ref: 1

CASE,CHAIN

€ 52.50

0110706108
ref: 2

BOLT

€ 2.00

0832121068
ref: 3

LOCK WASHER

€ 2.50

0916906025
ref: 4

WASHER,LOCK

€ 3.00

0110706128
ref: 5

BOLT

€ 2.00

0832121068
ref: 6

LOCK WASHER

€ 2.50

0832221068
ref: 7

WASHER

€ 2.00

0916006020
ref: 8

WASHER

€ 2.00

6210044410
ref: 9

SHOCK ABSORBER, REAR

€ 197.50

0831311108
ref: 10

NUT, LOWER LH

€ 2.50

0832211128
ref: 11

WASHER

€ 2.00

0916012012
ref: 12

WASHER (12.5X24X3.2)

€ 2.50

0916010001
ref: 13

WASHER

€ 2.00

0916010033
ref: 14

WASHER(10.5X24X3.2)

€ 2.00

0916012004
ref: 15

WASHER (12.5X24X1.6)

€ 2.00
