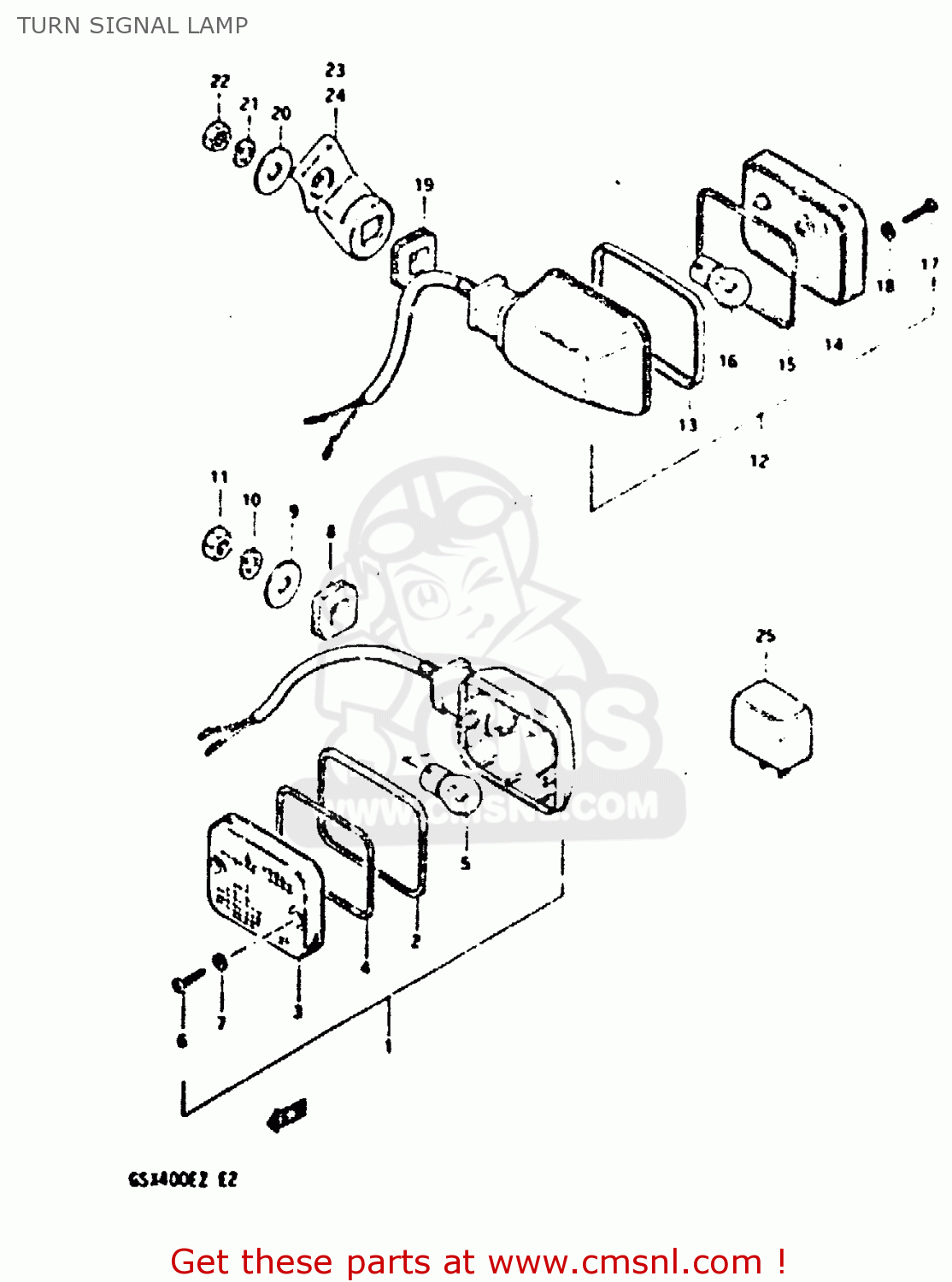

TURN SIGNAL LAMP

ref

part #

description

quantity

1

3560145521
ref: 1

LAMP ASSY,FR T

€ 70.00

2

3561149230
ref: 2

RIM

€ 11.00

3

3561249231
ref: 3

LENS

€ 13.00

4

3561349230
ref: 4

GASKET (NAS)

€ 5.00

5

0947112045
ref: 5
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

6

0321104208
ref: 6

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

0932015002
ref: 8

CUSHION

€ 4.50

9

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12

3560345521
ref: 12

LAMP, REAR TURN SIGNAL

€ 83.50

13

3561149230
ref: 13

RIM

€ 11.00

14

3565244182
ref: 14

LENS

€ 13.00

15

3561349230
ref: 15

GASKET (NAS)

€ 5.00

16

0947112043
ref: 16
EXECUTED LOCALLY

BULB(12V35/25W,STANLEY,A7025)

€ 7.00

17

0321104208
ref: 17

SCREW

€ 1.50

18

3562743010
ref: 18

GASKET (NAS)

€ 2.00

19

0932015004
ref: 19

CUSHION

€ 5.00

20

0916010006
ref: 20

WASHER (10.5X30X2.3)

€ 2.50

21

0832121105
ref: 21

LOCK WASHER

€ 3.00

22

0831012108
ref: 22

NUT

€ 2.50

23

3562111500
ref: 23

BRACKET,REAR TURN SIGNAL

€ 66.50

24

3564111500
ref: 24

BRACKET,REAR TURN SIGNAL

€ 43.50

25

3861045031
ref: 25

RELAY,TURN SIGNAL

€ 54.50

all assemblies
