CYLINDER HEAD COVER

GSX400L 1981 (X) GENERAL EXPORT (E01)

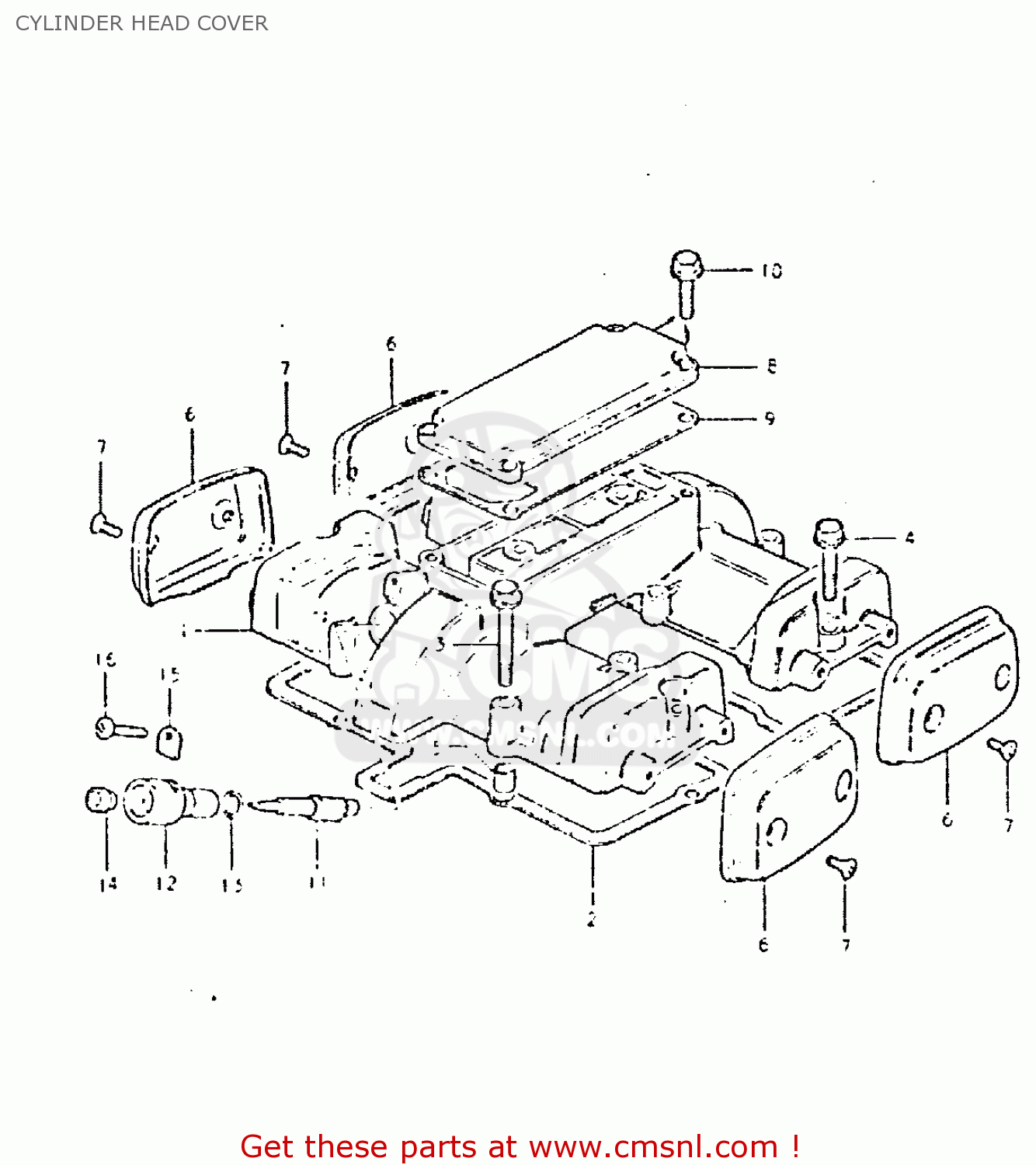

Cylinder head cover diagram GSX400L 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1117144201
ref: 1

COVER, CYLINDER HEAD

€ 0.00

1117344202
ref: 2
FROM 11173-44201

GASKET (MCA)

€ 31.00

0151706358
ref: 3

BOLT 6X35

€ 2.50

0151706308
ref: 4

BOLT

€ 2.00

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6-1

1119011400
ref: 6-1
MODEL T

UNION,CYLINDER HEAD OIL

€ 28.50

6-2

1117449210
ref: 6-2
MODEL X

CAP,CYLINDER HEAD COVER

€ 28.50

0213205127
ref: 7

SCREW 5X12

€ 2.50

1117645400
ref: 8

COVER,BREATHER

€ 24.50

1117745400
ref: 9

GASKET (MCA)

€ 19.00

0151706208
ref: 10

BOLT,REAR

€ 2.50

2643147002
ref: 11

GEAR,TACHOMETER DRIVEN

€ 29.00

2644145000
ref: 12

SLEEVE,TACHOMETER DRIVE

€ 18.00

2645145000A
ref: 13

SEAL,TACHOMETER DRIVEN

€ 4.50

0928905002
ref: 14

SEAL,OIL(5X12X8)

€ 11.00

2644933000
ref: 15

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

0912805101
ref: 16

SCREW(5X12)

€ 1.50

CYLINDER HEAD COVER

all assemblies
